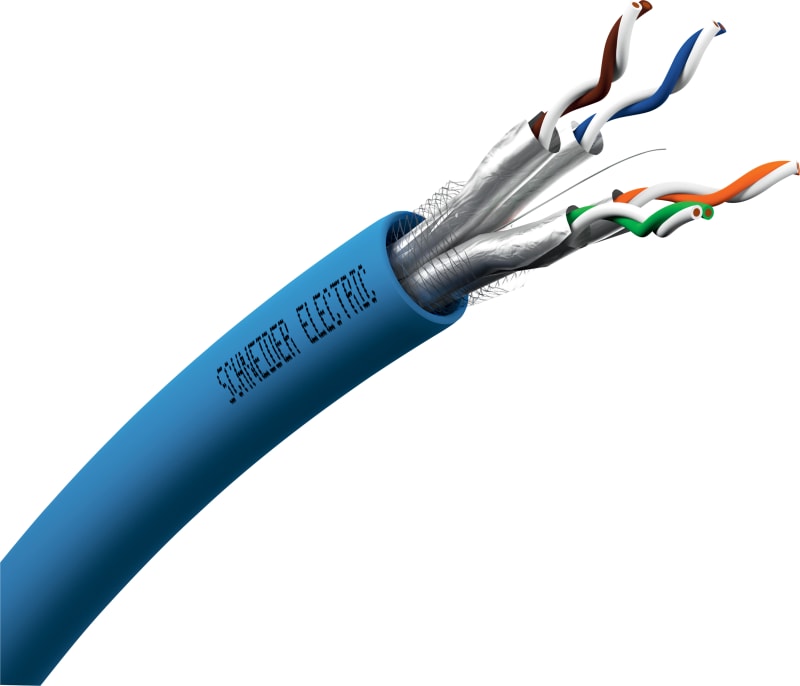

Schneider Electric Copper LAN cable, Actassi, S/FTP, 4P, CAT7A, Euroclass D, 1,2 GHz, LSZH, 500 m VDICD658218

Schneider Electric VDICD658218 Actassi data cable S/FTP Cat 7A 4p, PoE type 4, 500 m reel, blue halogen-free, fire class Dca.

Manufacturer part number (MPN)

VDICD658218 EAN / GTIN: 3606481320452 HS code: 8544.42 Sales unit: m Package quantity: 500 m Range: Actassi Product or component type: Copper cable Cable packaging: drum of 500 m Colour tint: Blue Cable shielding type: S/FTP Type of cable: 4 pair cables Communication network category: 7A remote powering: PoE 15W (Power over Ethernet); PoE+ 30W (Power over Ethernet Plus); 4PPoE 100W (Power over Ethernet) Communication network type: 10GBASE-T minimum return loss: Guaranteed: 20.1 dB at 100 MHz typical: 28.0 dB; Guaranteed: 17.3 dB at 250 MHz typical: 24.0 dB; Guaranteed: 17.3 dB at 500 MHz typical: 22.3 dB; Guaranteed: 15.1 dB at 1000 MHz typical: 20.1 dB Attenuation: Guaranteed: 18.5 dB Typical: 17.0 dB @ 100 MHz; Guaranteed: 29.7 dB Typical: 27.3 dB @ 250 MHz; Guaranteed: 42.8 dB Typical: 39.4 dB @ 500 MHz; Guaranteed: 61.9 dB Typical: 56.9 dB @ 1000 MHz Power sum near-end crosstalk [PSNEXT]: Guaranteed: 72.4 dB Typical: 97.4 dB at 100 MHz ; Guaranteed: 66.4 dB Typical: 91.4 dB at 250 MHz ; Guaranteed: 61.9 dB Typical: 86.9 dB at 500 MHz ; Guaranteed: 57.4 dB Typical: 81.3 dB at 1000 MHz Attenuation to Crosstalk Ratio Far-end [ACRF]: Guaranteed: 55.3 dB Typical: 68.8 dB at 100 MHz ; Guaranteed: 47.3 dB Typical: 59.7 dB at 250 MHz ; Guaranteed: 41.3 dB Typical: 52.7 dB at 500 MHz ; Guaranteed: 35.3 dB Typical: 46.3 dB at 1000 MHz Power sum attenuation crosstalk ratio far-end [PSACRF]: 52.3 dB at 100 MHz; 44.3 dB at 250 MHz; 38.3 dB at 500 MHz; 32.3 dB at 1000 MHz Near end crosstalk [NEXT]: Guaranteed: 75.4 dB Typical: 100.4 dB at 100 MHz ; Guaranteed: 69.4 dB Typical: 94.4 dB at 250 MHz ; Guaranteed: 64.9 dB Typical: 89.9 dB at 500 MHz ; Guaranteed: 60.4 dB Typical: 84.3 dB at 1000 MHz Coupling attenuation: >= 85 dB from 30…100 MHz conforming to IEC 61156-5, ed. 2 type Ia; >= 85 - 20 x log10(f / 100) dB from 100…1000 MHz conforming to IEC 61156-5, ed. 2 type Ia Transfer impedance: <= 10 mOhm/m at 1…10 MHz conforming to IEC 61156-5, ed. 2.1 (grade 1); <= 30 mOhm/m conforming to IEC 61156-5, ed. 2.1 (grade 1); <= 30 mOhm/m at 30 MHz conforming to IEC 61156-5, ed. 2.1 (grade 1); <= 60 mOhm/m at 100 MHz conforming to IEC 61156-5, ed. 2.1 (grade 1); <= 60 mOhm/m conforming to IEC 61156-5, ed. 2.1 (grade 1) Input impedance: 100 Ohm Maximum loop resistance: 138.4 Ohm per 1000 m Segregation class: Class d conforming to EN 50174-2 Maximum resistance unbalance: 2 % Pulling force: 100 N Bending radius: minimum bending radius during installation: 8 x overall diameter; minimum bending radius after installation: 4 x overall diameter Delay skew: 25 ns material: Solid bare copper: conductor; PE (polyethylene): wire insulation; Aluminium/polyester: foil; Tinned copper: braid shield; PE (polyethylene): sheath Euroclass level: Dca s2 d1 a1 Nominal velocity propagation: 80 % linear conductor resistance: 69.2 mΩ/m AWG gauge: 23 AWG Calorific value: 555 MJ/km Cable outer diameter: 7.3 mm Cable length: 500 m Cable weight: 59 kg / 1 km Ambient air temperature for installation: 0…50 °C Ambient air temperature for storage: -20…60 °C Ambient air temperature for operation: -20…60 °C Directives: 2006/95/EC - low voltage directive; 305/2011/EU - construction product regulation Flame retardance: LSZH Standards: ISO/IEC 11801-ed. 3 performance; EN 50173-1 performance; EN 50174-1 performance; ANSI/TIA/EIA-568-C.2 performance; IEC 61156-5-ed. 2.1 performance; EN 50288-10-1 performance; ISO/IEC 14763-2 installation standards; EN 50174-2 installation standards; IEC 60332-1 flame propagation characteristics; IEC 60754-1; IEC 60754-2 acidity of combustion gases; IEC 61034 smoke generation Number of Units in Package 1: 1 Number of Units in Package 2: 12 Warranty (in months): 18

HS Code

8544.42

• EAN 3606481320452
• SAP 1200024392
• Code 81445229
