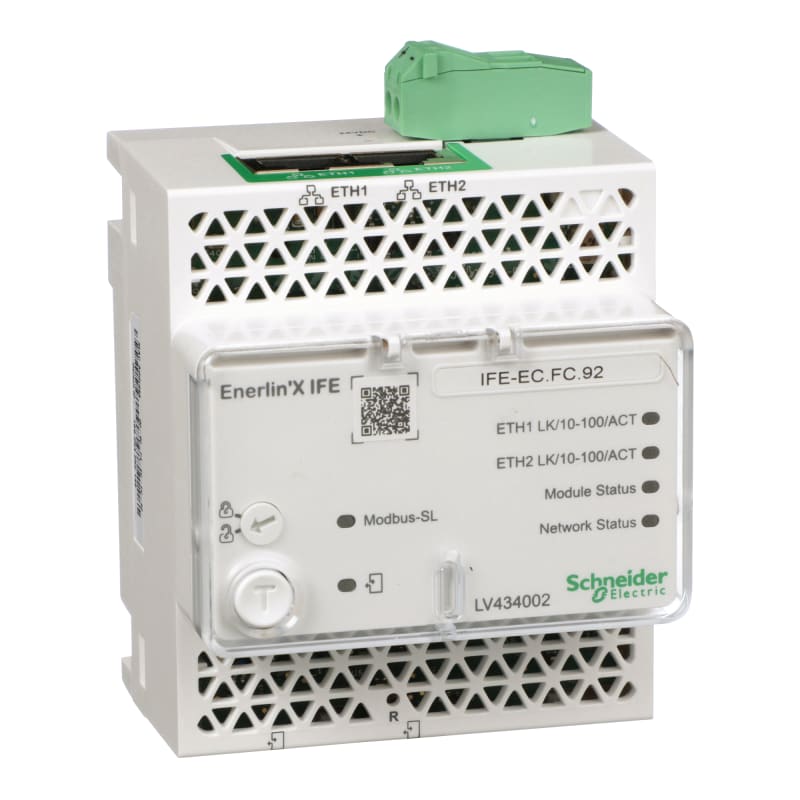

Schneider Electric Module IFE - Modbus TCP - Ethernet IP & MBSL LV434002

Schneider Electric LV434002 — Module IFE - Modbus TCP - Ethernet IP & MBSL.

Manufacturer part number (MPN)

LV434002

EAN / GTIN

3606481283146

Sales unit

pcs

Package quantity

24 pcs

Range of product

ComPact NSX100...250; ComPact NSX400...630; ComPact NS630b...1600; ComPact NS1600b...3200

Device short name

IFE

Product or component type

Interface module

Range compatibility

Masterpact MasterPact MTZ; Masterpact MasterPact NT; Masterpact MasterPact NW; ComPact ComPact NSX; ComPact ComPact NS630b...1600; ComPact ComPact NS1600b...3200; PowerPact PowerPact J; PowerPact PowerPact L; PowerPact PowerPact H; PowerPact PowerPact P; PowerPact PowerPact R

Communication network type

Ethernet, Modbus TCP/IP, HTTP, FTP, SMTP, NTP, SNMP10/100 Mbit/s on 2-port RJ45; Universal Logic Plug on 2-port RJ45; Modbus TCP/IP, Modbus TCP master9.6...38.4 kbauds

Communication gateway

Ethernet TCP/IP to Modbus

Web server

Embedded HTTP server

mounting mode

By clips

Mounting support

35 mm DIN rail

Control type

By software

[Us] rated supply voltage

24 V DC - 20...10 %

Maximum supply current

3 A

Current consumption

120 mA

Connections - terminals

RJ45 connector

Product certifications

CE; GOST; cULus; FCC

Standards

IEC 60947-6-2; UL 508; UL 60950; IEC 60950

Height

105 mm

Width

72 mm

Depth

71 mm

Product weight

182.5 g

Accessory / separate part category

Spare part for Compact NS630b...1600; Spare part for Compact NS1600b...3200

IP degree of protection

Connectors: IP2X; Other parts: IP3x; Front panel: IP4X

Relative humidity

5…85 %

Ambient air temperature for storage

-40…85 °C

Ambient air temperature for operation

-20…70 °C

Pollution degree

3

Flame retardance

V0 conforming to UL 94; V0 conforming to IEC 60947-1; V0 conforming to IEC 60695-2-11

Shock resistance

1000 m/s²

Vibration frequency

5…8.4 Hz

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

7.100 cm

Package 1 Width

7.200 cm

Package 1 Length

10.500 cm

Package 1 Weight

257.700 g

Unit Type of Package 2

S03

Number of Units in Package 2

24

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

6.609 kg

Country of origin

ID

Warranty (in months)

18

Number of HW-interfaces industrial Ethernet

2

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

24 V

Voltage type (supply voltage)

DC

Supporting protocol for TCP/IP

Yes

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for SERCOS

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

Yes

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard eGPRS

No

Radio standard GSM

No

Radio standard LTE

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

System accessory

Yes

Degree of protection (IP)

IP2X

With potential separation

No

Fieldbus connection over separate bus coupler possible

No

Suitable for rail mounting

Yes

Wall mounting/direct mounting

Yes

Front built-in possible

No

Rack-assembly possible

Yes

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

Level c

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

None

Explosion safety category for dust

None

HS Code

8517.62
