Interfacemodul-Modbus Hub for 3 pcs NSX
Pricing
Request a quote
We reply within 24 hours
Product Description

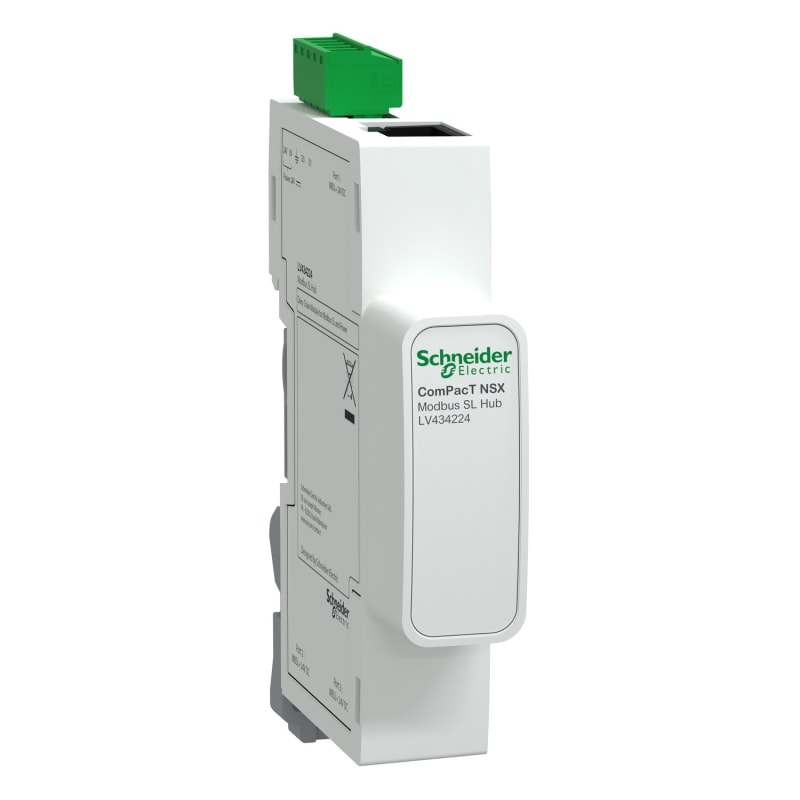

Schneider Electric LV434224 — Interface module, ComPacT NSX, Modbus SL HUB, daisy chain for Modbus SL devices.
Technical Specifications
- Manufacturer part number (MPN)
- LV434224
- EAN / GTIN
- 3606487034896
- Sales unit
- pcs
- Package quantity
- 36 pcs
- Range of product
- ComPacT NSX100...250; ComPacT NSX400...630
- Device short name
- Modbus SL HUB
- Product or component type
- Modbus hub
- Device application
- Communication
- Range compatibility
- ComPacT NSX100; ComPacT NSX160; ComPacT NSX250; ComPacT NSX400; ComPacT NSX630
- Function of module
- Daisy chain for Modbus devices
- Communication network type
- Modbus, Modbus Serial line slave9.6...38.4 kbauds
- mounting mode
- By clips
- Mounting support
- 35 mm DIN rail
- Accuracy class
- Class 2 power supply
- [Us] rated supply voltage
- 24 V DC
- Input voltage
- 24 V DC +/- 10 %
- Current consumption
- 2 mA 24 V DC room temperature
- Power consumption in W
- 0.048 W
- Connections - terminals
- RJ45 connector
- Product certifications
- UL
- Standards
- CISPR 32; IEC 61000-4-3; IEC 61000-4-6; IEC 61000-4-4; IEC 61000-4-5; IEC 61000-4-2
- Height
- 102 mm
- Width
- 71 mm
- Depth
- 18 mm
- Product weight
- 57.6 g
- Relative humidity
- 5…85 % at 55 °C without condensation
- Ambient air temperature for storage
- -40…85 °C
- Ambient air temperature for operation
- -25…55 °C
- Pollution degree
- 3
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.100 cm
- Package 1 Width
- 8.000 cm
- Package 1 Length
- 11.300 cm
- Package 1 Weight
- 79.000 g
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 36
- Package 2 Height
- 15.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 3.424 kg
- Unit Type of Package 3
- P06
- Number of Units in Package 3
- 576
- Package 3 Height
- 75.000 cm
- Package 3 Width
- 60.000 cm
- Package 3 Length
- 80.000 cm
- Package 3 Weight
- 64.784 kg
- Country of origin
- IN
- Warranty (in months)
- 18
- Mounting method
- DIN rail (top hat rail)
- Number of max. stackable devices
- 12
- Ethernet
- No
- Fast Ethernet
- No
- Number of ports 10 Mbps RJ45
- 3
- Number of module slots
- 1
- Manageable
- Yes
- Degree of protection (IP)
- IP30
Standards & Compliance
- HS Code
- 8517.62
Cross References
- EAN 3606487034896
- SAP 1200786672
- Code 83949473
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric LVS04678 Linergy BS Busbar Support 5-10 mm 115 mm cc
Schneider Electric
Schneider Electric RS DCL Wall Outlet Screw Terminals White
EKO30134
Schneider Electric
Schneider Electric A9E18071 linear switch - iSSW - 2 C/O - 20A - 250 V AC - 2 positions
Schneider Electric

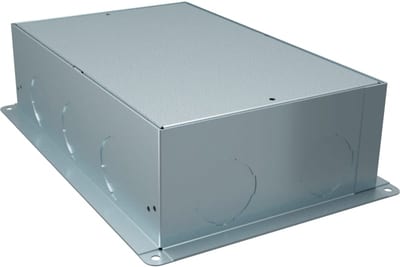

Schneider Electric INS52003 Unica System+ In-Screed Floor Box XL
Schneider Electric

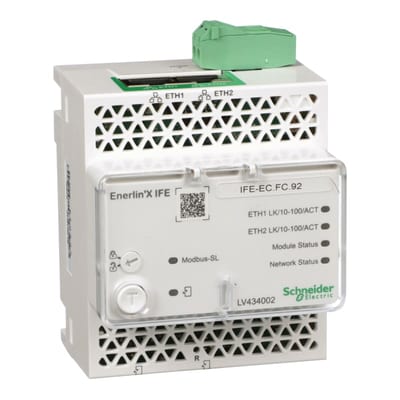

Schneider Electric Module IFE - Modbus TCP - Ethernet IP & MBSL LV434002
Schneider Electric

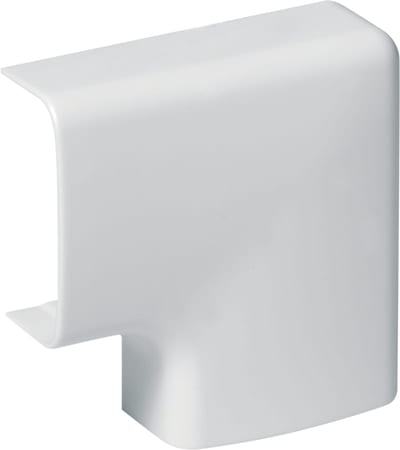

OL MINI 1230 L-Piece White
ISM14203
Schneider Electric

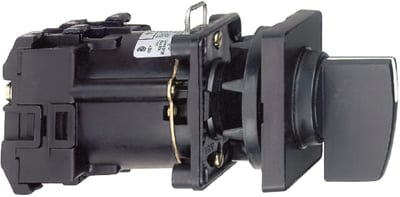

Cam switch selector switch 2 pos + 0 Ø22
K1B001UCH
Schneider Electric

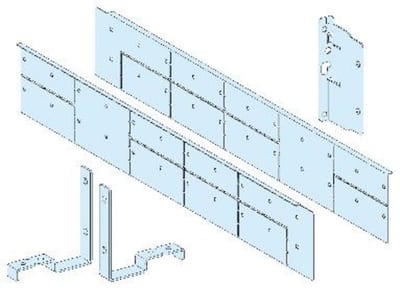

Schneider Electric VERTICAL PARTITION PrismaSet G IP30 LVS04330
