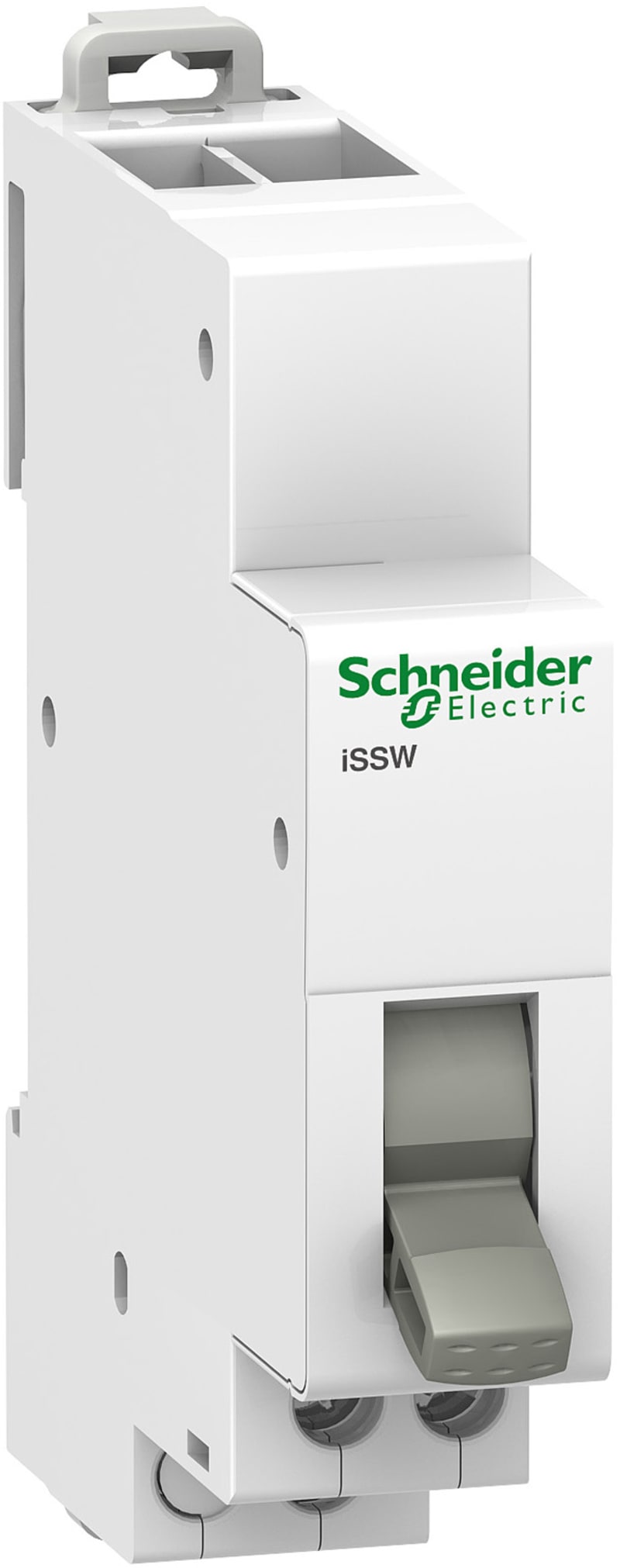

Schneider Electric A9E18071 linear switch - iSSW - 2 C/O - 20A - 250 V AC - 2 positions

Schneider Electric A9E18071 linear switch - iSSW - 2 C/O - 20A - 250 V AC - 2 positions is listed under Switchgear & Protection / Disconnect Switches. Sales unit: pcs; Package quantity: 6 pcs; range of product: Acti9; Product name: Acti9 iSSW; Product or component type: Changeover switch; Device short name: iSSW.

Manufacturer part number (MPN)

A9E18071

EAN / GTIN

3606480088483

Sales unit

pcs

Package quantity

6 pcs

range of product

Acti9

Product name

Acti9 iSSW

Product or component type

Changeover switch

Device short name

iSSW

Device application

Electrical circuit control

Poles description

2P

Contacts type and composition

2 C/O

[Ue] rated operational voltage

250 V AC 50/60 Hz

Standards

IEC 60669-1; IEC 60947-5-1

[Ie] rated operational current

20 A

Control type

Toggle 2 positions

Marking

0 - 1

mounting mode

Clip-on

Mounting support

DIN rail

9 mm pitches

4

Height

82 mm

Width

36 mm

Depth

75 mm

Colour

White

Electrical durability

AC-22: 30000 cycles cos Phi = 0.8

Connections - terminals

Staggered tunnel terminal (downside) 2 cable(s) 0.5…2.5 mm² flexible; Staggered tunnel terminal (downside) 2 cable(s) 0.5…2.5 mm² rigid without cable end

Wire stripping length

9 mm

Tightening torque

1 N.m

IP degree of protection

IP20 conforming to IEC 60529

Tropicalisation

2

Pollution degree

3

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-20…50 °C

Ambient air temperature for storage

-40…70 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.600 cm

Package 1 Width

7.500 cm

Package 1 Length

9.000 cm

Package 1 Weight

86.700 g

Unit Type of Package 2

BB1

Number of Units in Package 2

6

Package 2 Height

8.000 cm

Package 2 Width

9.800 cm

Package 2 Length

23.400 cm

Package 2 Weight

575.000 g

Unit Type of Package 3

S03

Number of Units in Package 3

54

Package 3 Height

30.000 cm

Package 3 Width

30.000 cm

Package 3 Length

40.000 cm

Package 3 Weight

5.678 kg

Country of origin

BE

Warranty (in months)

18

Number of contacts as change-over contact

2

Number of poles

1

Rated current

20 A

Rated voltage

250 V

Min. rated voltage

250 V

Voltage type

AC

With signal lamp

No

Colour calotte

White

Width in number of modular spacings

2

Built-in depth

75 mm

Degree of protection (IP)

IP40

Imprint/indication

None

HS Code

8536.50

• EAN 3606480088483
• SAP 1000326945
• Code 81164867
