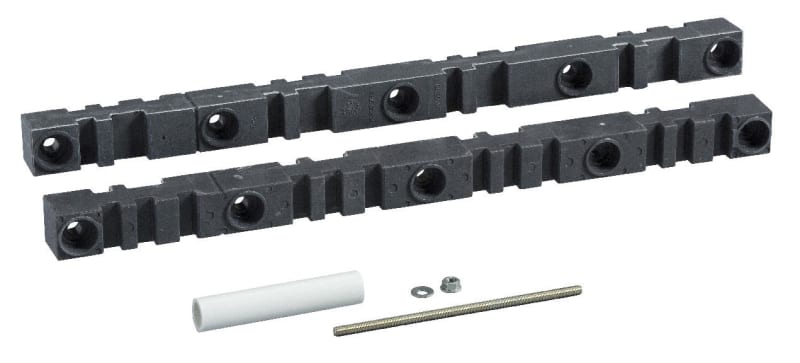

Schneider Electric LVS04678 Linergy BS Busbar Support 5-10 mm 115 mm cc
Pricing
Request a quote
We reply within 24 hours
Product Description
Free-standing busbar support from the Linergy BS range for 5-10 mm thick horizontal busbars at 115 mm centres, up to 4 poles and 4000 A rated current. Designed for mounting inside PrismaSeT P cubicles up to 600 mm deep and compatible with Linergy BS and LGYE horizontal busbars. Supplied loose for framework mounting during switchboard assembly.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04678
- EAN / GTIN
- 3606481932723
- Sales unit
- pcs
- Package quantity
- 15 pcs
- Range
- Linergy
- Range of product
- Linergy BS
- Product or component type
- Busbar support
- Range compatibility
- PrismaSeT PrismaSeT P cubicle; Linergy Linergy BS busbar; Linergy Linergy LGYE busbar
- Product specific application
- To support 10 mm thick busbar
- Cubicle-device connection
- Linergy LGYE horizontal busbar - free mounting; Linergy BS horizontal busbar - free mounting
- Enclosure/cubicle description
- Cubicle
- Cubicle depth
- 600 mm
- Product destination
- For framework
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.000 cm
- Package 1 Width
- 6.000 cm
- Package 1 Length
- 46.400 cm
- Package 1 Weight
- 1.352 kg
- Unit Type of Package 2
- S04
- Number of Units in Package 2
- 5
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 40.000 cm
- Package 2 Length
- 60.000 cm
- Package 2 Weight
- 7.660 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 60
- Package 3 Height
- 103.000 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 95.120 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Number of poles
- 4
- Busbar distance
- 115 mm
- Max. rated current
- 4000 A
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481932723
- SAP 1200547024
- Code 82879328
