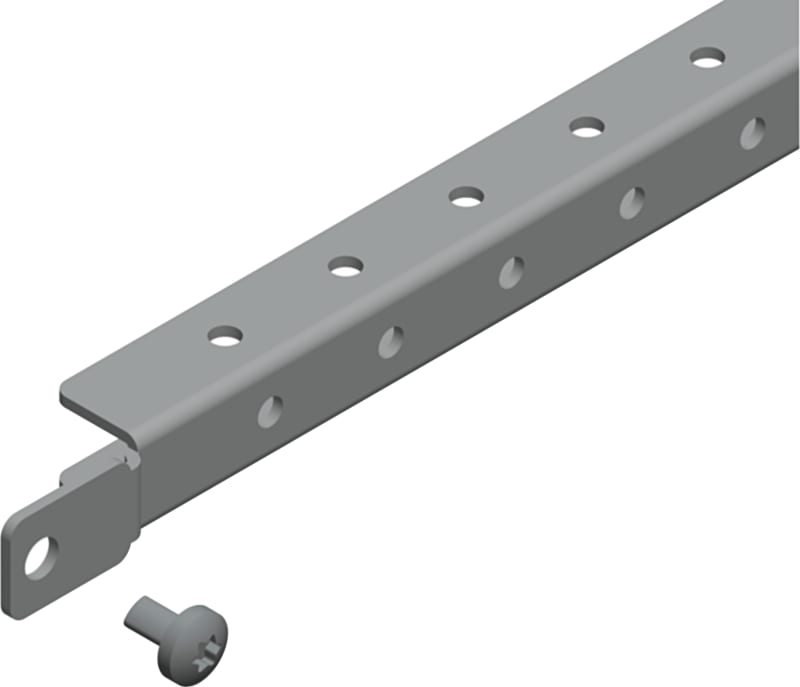

Schneider Electric Light cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, W400MM, set of 2 NSYSLCR40
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSLCR40 Spacial SF/SM 2 Rails/ tverrskinner for cabinet - 400 mm.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSLCR40
- EAN / GTIN
- 3606485132037
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Light cross rail
- Application
- Multi-purpose
- Nominal dimensions of the housing
- - W: 400 mm
- Range compatibility
- PanelSeT PanelSeT SF; PanelSeT PanelSeT SM; PanelSeT PanelSeT SFX
- Mounting location
- Between cross rails; On structure of enclosure
- Mounting support
- Adaptation profile, on SM enclosures
- Device composition
- fixing elements; 2 cross rails
- Quantity per set
- Set of 1
- Material
- Steel
- Surface finish
- Zinc coated
- Fixing mode
- By screws - screw type M6 self tapping
- Adjustment
- Adjustable with a pitch of 25 mm
- Number of horizontal rows
- 1
- Height
- 30 mm
- Width
- Fixing centers: 350 mm; Nominal: 400 mm; Useful: 310 mm
- Depth
- 18.6 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.500 cm
- Package 1 Width
- 5.000 cm
- Package 1 Length
- 37.500 cm
- Package 1 Weight
- 520.000 g
- Country of origin
- ES
- Warranty (in months)
- 18
- Model
- Fastening profile
- Suitable for enclosure building width
- 400 mm
- Suitable for enclosure building depth
- 400 mm
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606485132037
- SAP 1000470710
- Code 8932286
