Schneider Electric Floor standing encl. polyester vers.PLAT open top w/ canopy 500X500X320 IP44 NSYPLAT553G
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYPLAT553G THLSA RAIN HOOD 7035 500X500X320.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPLAT553G
- EAN / GTIN
- 3606480775437
- Sales unit
- pcs
- Dimensions
- 500×500×320
- Range
- PanelSeT
- Product name
- PanelSeT PLA
- Enclosure type
- Multi-purpose
- Product or component type
- Suitable enclosure
- Version
- PLAT
- Nominal height
- 500 mm
- Nominal width
- 500 mm
- Nominal depth
- 320 mm
- Enclosure mounting
- Floor-standing
- Device composition
- 1 top part; 1 bottom part; 2 side part; 1 rear panel; 1 door; 1 canopy
- Body type
- Open top and sealed bottom part assembled with side parts
- Door type
- Plain front
- Number of doors
- 1 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 2 points handle lock, 5 mm double-bar
- Accessibility for operation
- Front; Rear; Top
- Removable parts
- Door by hinges; Rear panel by fixing element; Canopy by fixing element
- Material
- Polyester reinforced with fibreglass
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208
- Product certifications
- Veritas
- Electrical insulation class
- Class II
- IP degree of protection
- IP44 conforming to IEC 60529 (with ventilated canopy)
- IK degree of protection
- IK10 conforming to IEC 62262 (plain door)
- Fire resistance
- 960 °C conforming to IEC 62208
- Ambient air temperature for storage
- -35…90 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Country of origin
- ES
- Warranty (in months)
- 18
- Width
- 500 mm
- Height
- 500 mm
- Depth
- 320 mm
- RAL-number
- 7035
- Number of locks
- 1
- Material quality
- Polyester
- Impact strength
- IK10
- Degree of protection (IP)
- IP44
- Suitable for outdoor set-up
- Yes
- Connectable
- No
- Wall fastening possible
- No
- Surface finishing
- Untreated
- Max. permitted load of the enclosure according to IEC 62208
- 422 N
- Max. permitted load of the door(s) according to IEC 62208
- 69 N
Standards & Compliance
- HS Code
- 9403.70
Cross References
- EAN 3606480775437
- SAP 1000752513
- Code 8486457
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Trip unit MA2.5, ComPacT NSX100, 3 poles, magnetic protections, motor protection, 2.5A rating C103MA003
Schneider Electric
Schneider Electric switch disconnector Masterpact MTZ2 25 HF, 2500 A, 4 poles, fixed LV848081
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100HB2, 100KA/690VAC, 4 poles, MicroLogic 5.2E trip unit 40A C10W45E040
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSXm 160N, 50KA/415VAC, 3 poles, MicroLogic 4.1 trip unit 160A, EverLink lugs C12N34V160L
Schneider Electric
DIN-rail terminal 4mm² grey 2P
NSYTRV42
Schneider Electric
Schneider Electric Plastic window with hinged transparent cover. L78XW130XD25MM. NSYVA276MA
Schneider Electric
Schneider Electric NSYTRACE26 Linergy TR End Plate for Screw Terminal Blocks
Schneider Electric

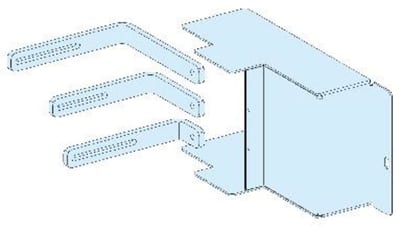

Prefab. Connection Hor.plug-in NSX630/LGY 3P
