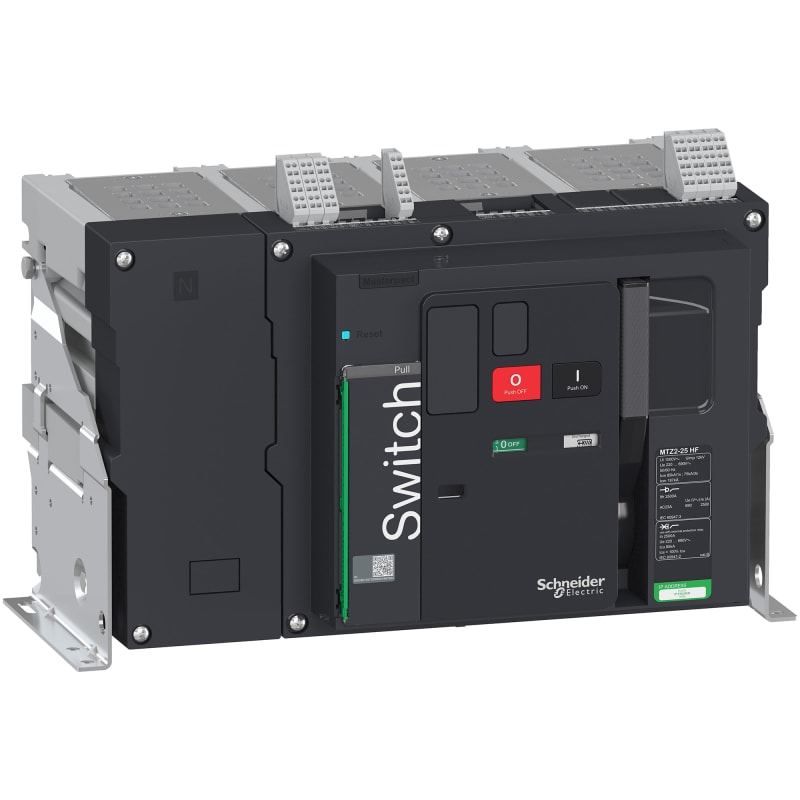

Schneider Electric switch disconnector Masterpact MTZ2 25 HF, 2500 A, 4 poles, fixed LV848081

Schneider Electric LV848081 Load-break switch Masterpact MTZ2 25HF 2500A 4p fixed-mounted without connections.

Manufacturer part number (MPN)

LV848081

EAN / GTIN

3606480817458

HS code

8536.90

Sales unit

pcs

Number of poles

4P

Range

MasterPact

Product or component type

Switch disconnector

Device application

Distribution

Switch-disconnector name

MasterPact MTZ2 25 HF

Poles description

4P

Neutral position

Left

Network type

AC

Network frequency

50/60 Hz

Control type

Push-button

mounting mode

Fixed

[Ue] rated operational voltage

690 V AC 50/60 Hz conforming to EN/IEC 60947-3

[Ie] rated operational current

2500 A AC 50/60 Hz 690 V

[Ui] rated insulation voltage

1000 V AC 50/60 Hz conforming to EN/IEC 60947-3

[Uimp] rated impulse withstand voltage

12 kV conforming to EN/IEC 60947-3

[Icw] rated short-time withstand current

85 kA during 1 s conforming to EN/IEC 60947-3; 75 kA during 3 s conforming to EN/IEC 60947-3

[Icm] rated short-circuit making capacity

187 kA peak 220...690 V AC at 50/60 Hz

Utilisation category

AC-23A; AC-3

performance level

HF

Suitability for isolation

Yes conforming to EN/IEC 60947-3

Contact position indicator

Yes

Visible break

No

Mechanical durability

20000 cycles with periodic preventive maintenance conforming to EN/IEC 60947-3

Electrical durability

AC-23A: 5000 cycles 440 V AC 50/60 Hz conforming to EN/IEC 60947-3; AC-23A: 2500 cycles 690 V AC 50/60 Hz conforming to EN/IEC 60947-3

Connection pitch

115 mm

Height

352 mm

Width

537 mm

Depth

300 mm

Product weight

65 kg

Standards

EN/IEC 60947-3

Product certifications

IECEE CB Scheme

IP degree of protection

IP30

Pollution degree

3 conforming to EN/IEC 60947-4-1

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…85 °C

Number of Units in Package 1

1

Warranty (in months)

18

HS Code

8536.90
