Schneider Electric

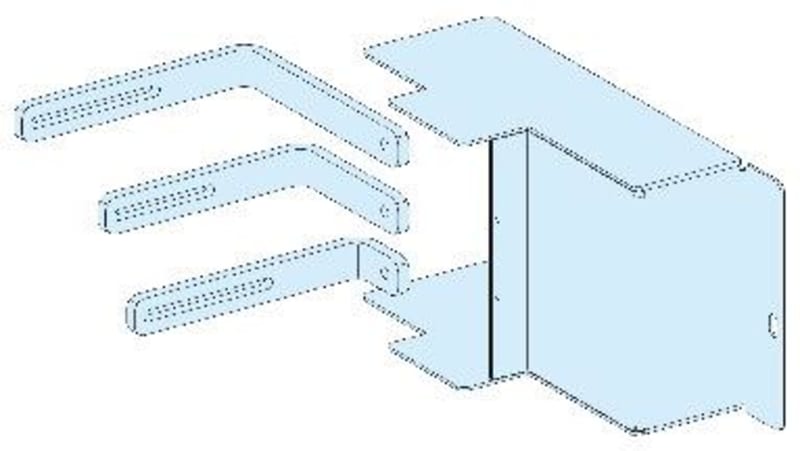

Prefab. Connection Hor.plug-in NSX630/LGY 3P
Part numberLVS04461EAN / GTIN3606481867698HS code8536.90
Electrical Components
Busbar Systems
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04461 Prefabricated connection for plug-in-horizontal mounted NSX400-630 for Linergy LGY 3P -PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04461
- EAN / GTIN
- 3606481867698
- Sales unit
- pcs
- Number of poles
- 3P
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Connection
- product name
- PrismaSeT PrismaSeT P enclosure
- Accessory / separate part category
- Connection accessory
- Standards
- IEC 61439-2, inside enclosure; IEC 61439-1, inside enclosure
- Product certifications
- ASTA
- Cubicle-device connection
- Linergy busbar
- Poles description
- 3P
- installation description
- Cubicle - width 650 mm
- Installed device
- ComPact: plug-in NSX400 without earth leakage protection - control: toggle horizontal installation; ComPact: plug-in NSX630 without earth leakage protection - control: toggle horizontal installation; ComPact: drawout NSX400 without earth leakage protection - control: toggle horizontal installation; ComPact: drawout NSX630 without earth leakage protection - control: toggle horizontal installation; ComPact: plug-in NSX400 with earth leakage protection - control: toggle horizontal installation; ComPact: plug-in NSX630 with earth leakage protection - control: toggle horizontal installation; ComPact: drawout NSX400 with earth leakage protection - control: toggle horizontal installation; ComPact: drawout NSX630 with earth leakage protection - control: toggle horizontal installation
- [Ie] rated operational current
- 630 A
- Busbar cross section
- 30 x 10 mm
- Product weight
- 4 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in toggle horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without drawout toggle horizontal 3P 1 direct 6; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in toggle horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without drawout toggle horizontal 3P 1 direct 6; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with plug-in toggle horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with drawout toggle horizontal 3P 1 direct 6; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with plug-in toggle horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with drawout toggle horizontal 3P 1 direct 6
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 70
- Warranty (in months)
- 18
- Width
- 650 mm
- Depth
- 400 mm
- With cover
- No
- Max. rated current
- 630 A
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481867698
- SAP 1200547124
- Code 82880398
Product Documentation
Document preview: Schneider Electric LVS04461 — OEM Product Page
