DOUBLE PUSH BUTTON for LIGHT S+r KN IN-0 G+ (ZB5AW7L3741)

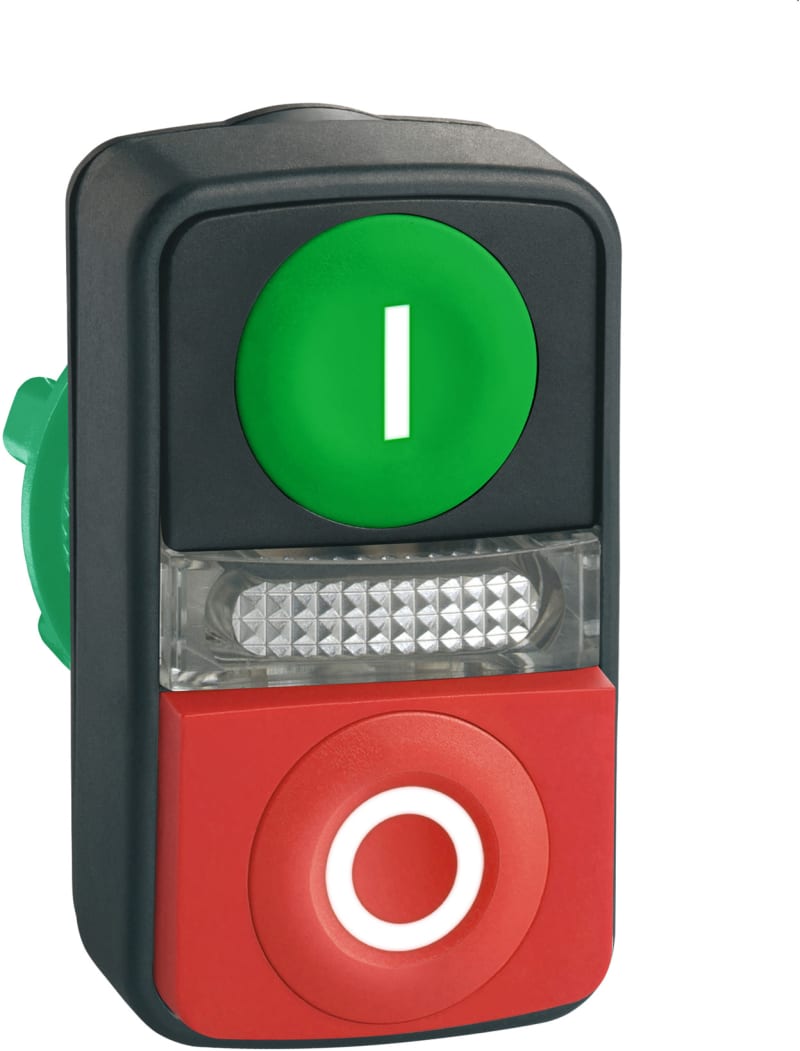

Schneider Electric ZB5AW7L3741 Double push-button head in plastic for LED with white "In" on green and white "O" on raised red push surface.

Manufacturer part number (MPN)

ZB5AW7L3741

EAN / GTIN

3389119043380

Sales unit

pcs

Package quantity

5 pcs

Range of product

Harmony XB5

Product or component type

Head for illuminated double-headed push-button

Product compatibility

Integral LED

Device short name

ZB5

Bezel material

Dark grey plastic

Head type

Standard

Mounting diameter

22 mm

Sale per indivisible quantity

1

Shape of signaling unit head

Rectangular

Type of operator

spring return

Operator profile

1 flush - 1 projecting push-buttons - 1 central pilot light

Operators description

Green ''I'' - red ''O''

CAD overall width

30 mm

CAD overall height

50 mm

CAD overall depth

35 mm

Product weight

0.023 kg

Mechanical durability

1000000 cycles

Station name

XALD 1 cut-out

Device presentation

Basic sub-assemblies

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Electrical shock protection class

Class II conforming to IEC 60536

IP degree of protection

IP66; IP69; IP69K

Enclosure Type

UL type 4X/13

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

IK degree of protection

IK05 conforming to IEC 50102

Standards

IEC 60947-5-4; JIS C8201-5-1; IEC 60947-1; UL 508; CSA C22.2 No 14; IEC 60947-5-1; JIS C8201-1

Product certifications

CSA; DNV; BV; LROS (Lloyds register of shipping); UL listed

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

200

Country of origin

FR

Warranty (in months)

18

Hole diameter

22.5 mm

Colour button

Red/green

Suitable for lighting

Yes

Number of command positions

2

Spring-return

Yes

Labelled

Yes

Type of button

High

Colour front ring

Black

Degree of protection (IP), front side

IP66

With protective cover

No

Material front ring

Plastic

With front ring

Yes

Construction type lens

Rectangular

Switching function latching

No

HS Code

8538.90

• EAN 3389119043380
• SAP 1000260525
• Code 8241051
