Door cable compartment PrismaSeTG cabinet 30MOD-IP30
Pricing
Request a quote
We reply within 24 hours
Product Description

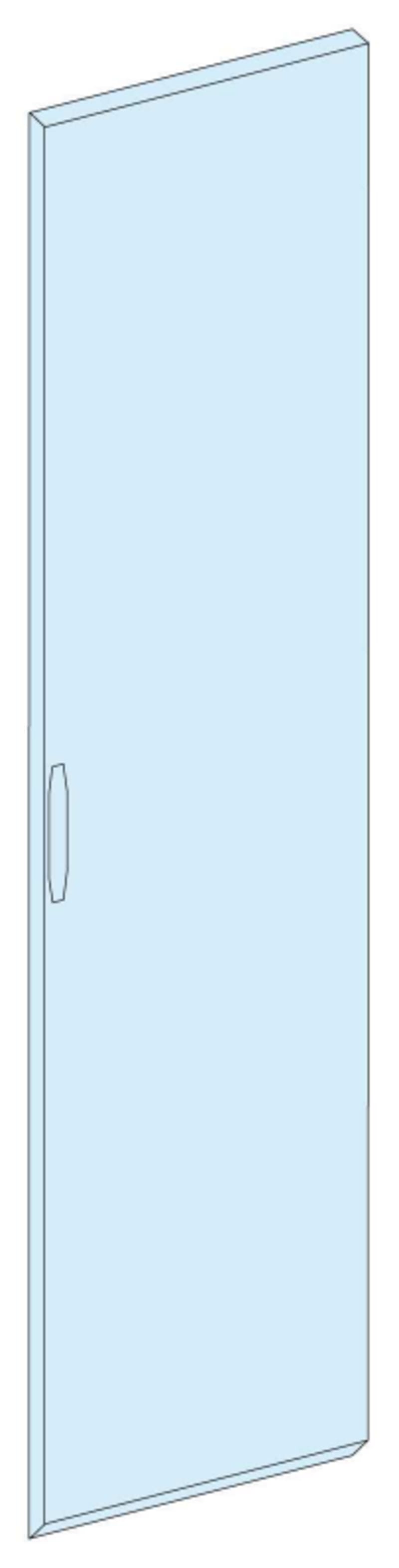

Schneider Electric LVS08283 Door for cable compartment PrismaSeT G floor-standing cabinet 30-modules-width 300mm- IP30-with handtak and key 405.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08283
- EAN / GTIN
- 3606481878373
- Sales unit
- pcs
- IP rating
- IP30
- Modular width
- 30 modules
- Range
- PrismaSeT
- Range of product
- PrismaSeT G
- Product or component type
- Door
- Range compatibility
- PrismaSeT PrismaSeT G duct
- Provided equipment
- door; handle; keylock (key 405); other keylock and insert to be ordered separately; 3 hinge
- type of door
- Plain
- IP degree of protection
- IP43 with door, canopy and IP43 gasket; IP30 without door; IP40 with door; IP41 with door and canopy
- installation description
- Floor-standing duct - width 300 mm
- Door opening side
- Reversible
- Number of locks
- 3
- door opening angle
- 130 °
- Number of vertical modules [50 mm]
- 30
- Enclosure material
- Handle: polyamide; Cover frame: treated sheet steel
- Quantity per set
- Set of 1
- Height
- 1516.6 mm
- Width
- 300 mm
- Depth
- 33 mm
- Product weight
- 5.88 kg
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- IK degree of protection
- IK10 conforming to EN/IEC 62262
- Standards
- IEC 61439-2; IEC 61439-1
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 36
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Compartment door
- EMC-version
- No
- Material
- Steel
- Degree of protection (IP)
- IP40
- Surface finishing
- Powder coating
- Version as glazed door
- No
- Version as door for disconnecting switch interlocking
- No
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481878373
- SAP 1200547494
- Code 82880392
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSXm 63H, 70KA/415VAC, 4 poles, MicroLogic 4.1 trip unit 50A, EverLink lugs C11H44V050L
Schneider Electric
Schneider Electric A9F94270 ACTI9 IC60L Miniature Circuit Breaker 2P 0.5 A, Curve C
Schneider Electric
Divisible current transformer HM060 600/5A
METSECT5HM060
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 32A, 48V DC coil, snap-in terminals LC1D32AED
Schneider Electric
Schneider Electric Earthing strips 2X16 + 29X6MM² . Composition : 10 units NSYRBL216296M
Schneider Electric
Schneider Electric PLS box, polyester rear, opaque PC cover IP65 27X54X18CM NSYPLSC2754G
Schneider Electric
Schneider Electric Easy UPS 3S 20KVA 400V 3:3 UPS, 2 internal 7AH modular battery strings, expandable to 3 E3SUPS20KHB1
Schneider Electric
Schneider Electric Residual current circuit breaker (RCCB), ACTI9 iID, 4P, 80A, A type, 300MA, selective, double terminal A9Z25480
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy LVS08283?
- LVS08283 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is LVS08283.
- What is the HS code for LVS08283?
- The customs tariff (HS) code for LVS08283 is 7326.90.
- Who manufactures LVS08283?
- LVS08283 is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for LVS08283?
- Yes — the LVS08283 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for LVS08283?
- The minimum order quantity is 1.
- Is LVS08283 available?
- Yes — LVS08283 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
