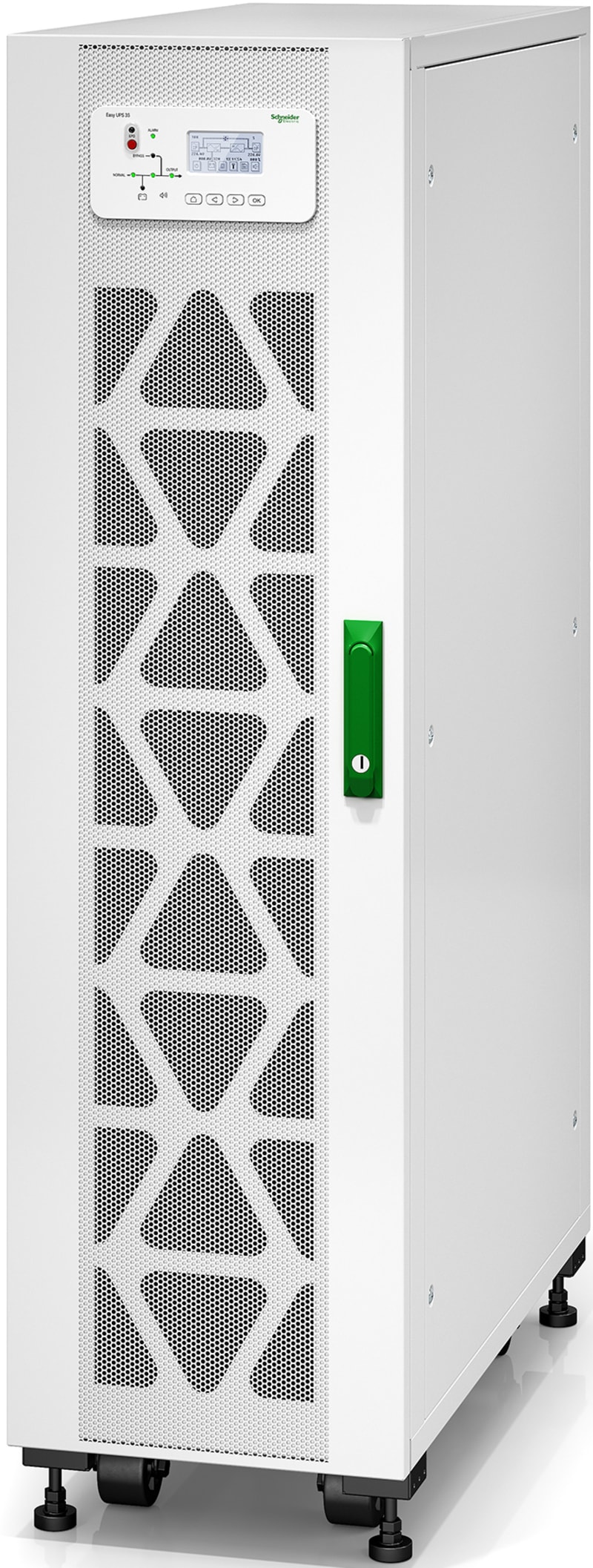

Schneider Electric Easy UPS 3S 20KVA 400V 3:3 UPS, 2 internal 7AH modular battery strings, expandable to 3 E3SUPS20KHB1

Schneider Electric E3SUPS20KHB1 Easy UPS 3S 20 kVA 400 V 3:3 UPS with internal batteries, 15 min batteritid.

Manufacturer part number (MPN)

E3SUPS20KHB1

EAN / GTIN

3606489697914

Sales unit

pcs

Voltage

400 V

Presentation

Easy-to-install, easy-to-operate, easy-to-maintain, and easy-to-service 20 kVA, 400V 3-phase UPS. With advanced product features, competitive specifications, and robust electrical design, the Easy UPS 3S UPS makes business continuity easy for small and medium data centers and electrical rooms. Includes dust filter and conformance-coated boards for harsh environments, and 2 internal 7Ah modular battery strings, expandable to 3 strings for extended runtime.

Main input voltage

400 V AC 3 phases; 380 V AC 3 phases; 415 V AC 3 phases

Other input voltage

380 V; 415 V

Maximum input current

37 A

Input harmonic distortion

Less than 3 % for full load

Load power factor

0.9 leading to 0.9 lagging

Cos phi

0.99

Efficiency at full load

304...477 V

Input frequency

45...65 Hz

Output voltage

400 V AC 3 phases; 380 V AC 3 phases; 415 V AC 3 phases

Other output voltage

380 V; 415 V

Rated power in W

20 kW

Rated power in VA

20 kVA

Harmonic distortion

Less than 3 %

Maximum configurable power in VA

20 kVA

Maximum configurable power in W

20 kW

Output harmonic distortion

< 3% linear load

Output voltage tolerance

+/- 1.5 %

UPS topology

Double conversion online

Output frequency

50 Hz sync to mains; 60 Hz sync to mains

Efficiency

View Efficiency Graph

Additional information

UPS weight does not include battery weight.

Maximum short-circuit current

10 kA

Battery type

Lead-acid internal

UPS connectivity

Optional network management card 3

Color

White (RAL 9003)

Height

140 cm

Width

38 cm

Depth

92.8 cm

Product weight

446 kg

USB compatible

Yes

Provided equipment

Dust filter; Installation guide

Range of product

Easy UPS 3S

Product or component type

Uninterruptible power supply (UPS)

Product certification

CE; EAC; RCM

Ambient air temperature for operation

0…40 °C

Ambient air temperature for storage

-15…40 °C

Storage altitude

0…15240 m

IP protection

IP20

Relative humidity

0…95 % non-condensing

Storage relative humidity

0…95 % non-condensing

Acoustic level

60 dBA

Heat dissipation

900 W

Operating altitude

0...3333 ft

Battery voltage

240 V

Included battery module

2

Empty battery slot

1

Number of Units in Package 1

1

Warranty (in months)

12

HS Code

8504.40

• EAN 3606489697914
• SAP 1200182614
• Code 82322221
