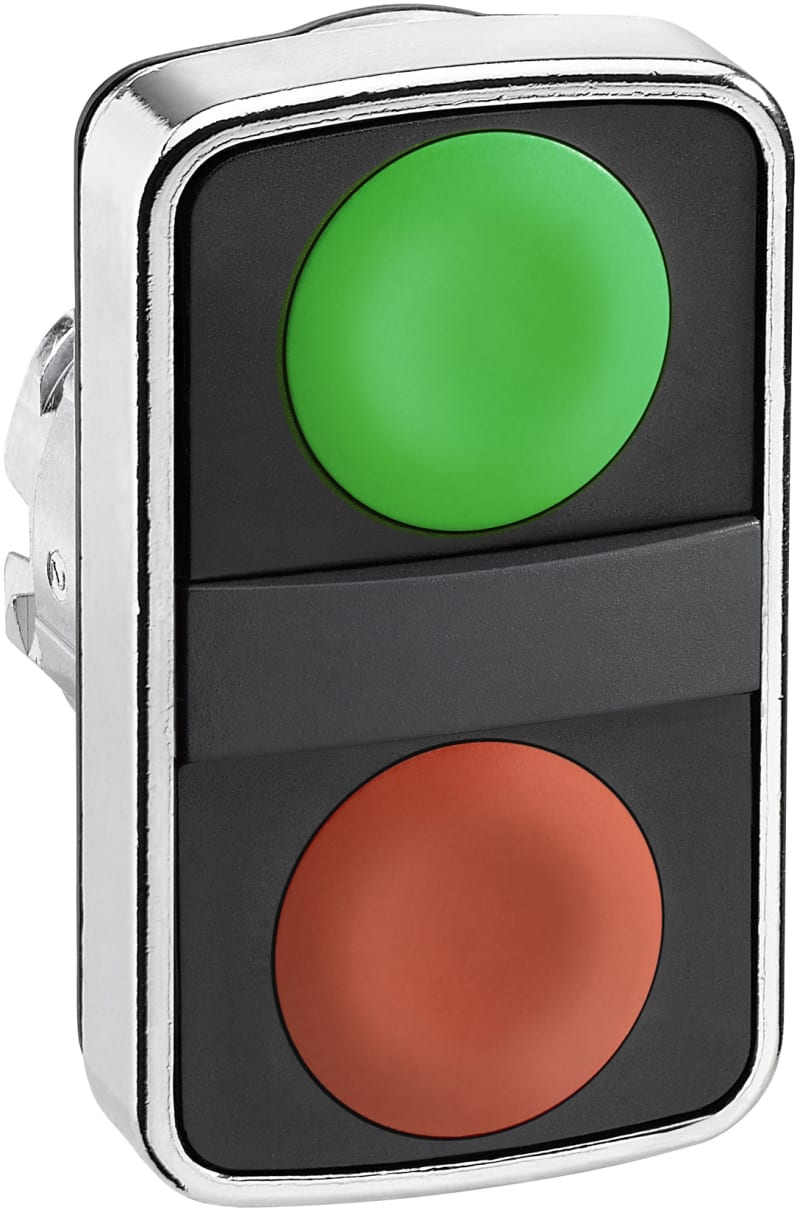

Double push button black kn. umrk g+r (ZB4BA7340)

Schneider Electric ZB4BA7340 Double push button black kn. umrk g+r.

Manufacturer part number (MPN)

ZB4BA7340

EAN / GTIN

3389119043830

Sales unit

pcs

Package quantity

5 pcs

Range of product

Harmony XB4

Product or component type

Head for double-headed push-button

Device short name

ZB4

Bezel material

Chromium plated metal

Mounting diameter

22 mm

Head type

Standard

Sale per indivisible quantity

1

Shape of signaling unit head

Rectangular

Type of operator

spring return

Operator profile

2 flush push-buttons

Operators description

Green unmarked - red unmarked

Product weight

0.056 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Colour of marking

White marking when green, red or black caps; Black marking when white caps

Mechanical durability

1000000 cycles

Electrical composition code

C3 for <6 contacts using single blocks in front mounting; C4 for <6 contacts using single and double blocks in front mounting; C14 for <2 contacts using single blocks in front mounting

Device presentation

Basic element

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Electrical shock protection class

Class I conforming to IEC 60536

IP degree of protection

IP67 conforming to IEC 60529; IP69 conforming to IEC 60529

Enclosure Type

UL type 4X/13

IK degree of protection

IK06 conforming to IEC 50102

Standards

IEC 60947-1; IEC 60947-5-4; JIS C8201-5-1; UL 508; CSA C22.2 No 14; IEC 60947-5-5; IEC 60947-5-1; JIS C8201-1

Product certifications

CSA; LROS (Lloyds register of shipping); BV; UL listed; DNV

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

200

Country of origin

FR

Warranty (in months)

18

Hole diameter

22.5 mm

Colour button

Red/green

Suitable for lighting

No

Number of command positions

2

Spring-return

Yes

Labelled

No

Type of button

Flat

Colour front ring

Chrome

With protective cover

No

Material front ring

Metal

With front ring

Yes

Construction type lens

Round

Switching function latching

No

HS Code

8538.90

• EAN 3389119043830
• SAP 1000260471
• Code 81146193
