M340 BACK Plate Extension
Pricing
Request a quote
We reply within 24 hours
Product Description

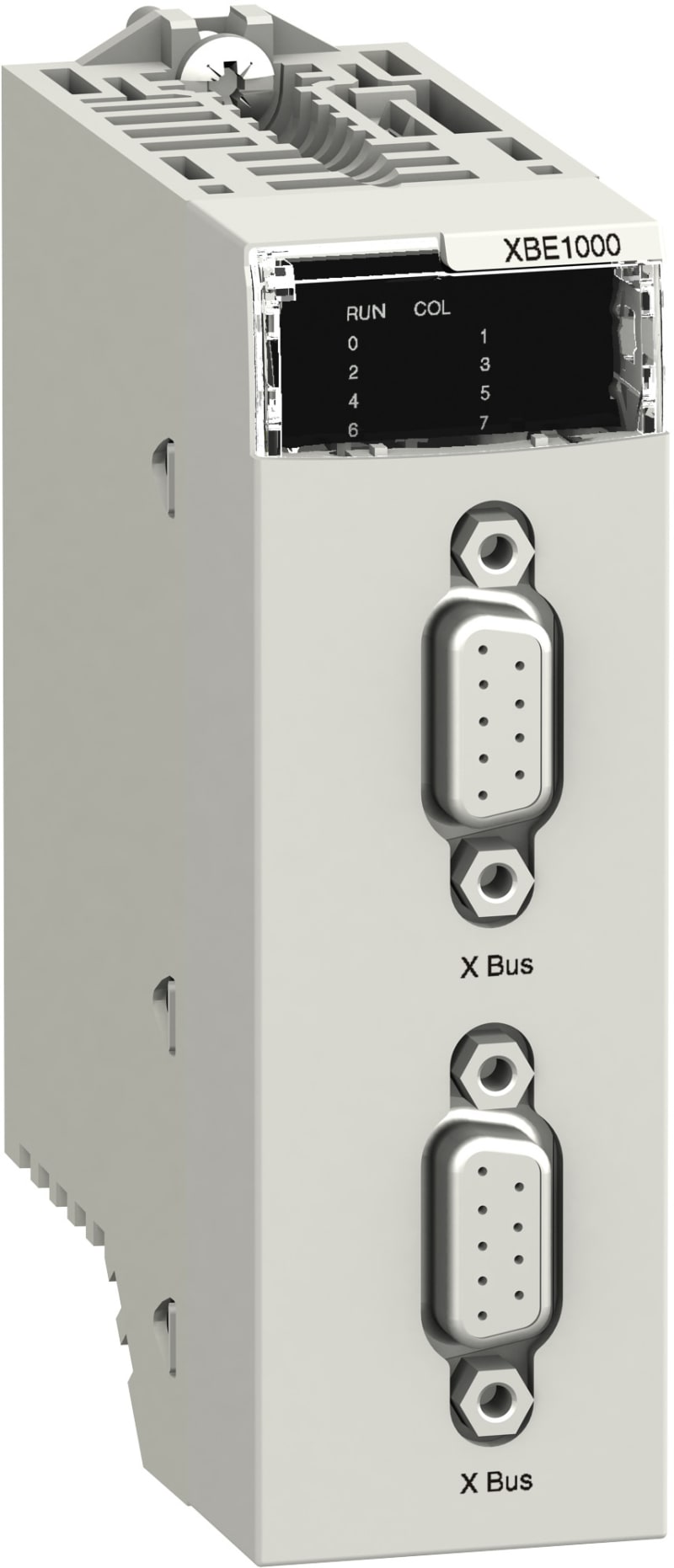

Schneider Electric BMXXBE1000 M340 PLS. Module for extension of backplate.
Technical Specifications
- Manufacturer part number (MPN)
- BMXXBE1000
- EAN / GTIN
- 3595863992175
- Sales unit
- pcs
- Range of product
- Modicon M340 automation platform
- Accessory / separate part category
- Extension accessory
- Accessory / separate part type
- Backplane
- Accessory / separate part designation
- Backplane expander
- Product compatibility
- BMXXBP0600; BMXXBP0400; BMXXBP0800; BMXXBP1200
- Accessory / separate part destination
- For multiracks configuration
- Electrical connection
- 2 female connectors SUB-D 9
- Local signalling
- 1 LED green for operating status (RUN) bus; 1 LED red for collision error (COL) rack; 4 LEDs green for rack adresses status
- Current consumption
- 160 mA at 24 V DC; 22 mA at 3.3 V DC
- Module format
- Standard
- IP degree of protection
- IP20
- Ambient air temperature for operation
- 0…60 °C
- Relative humidity
- 10…95 % without condensation
- Directives
- 2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility
- Product certifications
- CE; UL; CSA; RCM; EAC; Merchant Navy
- Standards
- IEC 61131-2; IEC 61010-2-201; UL 61010-2-201; CSA C22.2 No 61010-2-201; IACS E10; EN/IEC 61000-6-5, interface type 1 and type 2; EN/IEC 61850-3, location G
- Environmental characteristic
- Hazardous location class I division 2
- Protective treatment
- TC
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.500 cm
- Package 1 Width
- 11.000 cm
- Package 1 Length
- 11.500 cm
- Package 1 Weight
- 173.000 g
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 15
- Package 2 Height
- 15.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 2.910 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 32 mm
- Height
- 103.7 mm
- Depth
- 90 mm
- Suitable for safety functions
- No
- Type of voltage (input voltage)
- AC/DC
- Redundancy
- No
- With integrated power supply
- Yes
- Suitable for rail mounting
- No
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Appendant operation agent (Ex ia)
- No
- Front built-in possible
- No
- Rack-assembly possible
- Yes
- Wall mounting/direct mounting
- No
- Max. output current DC
- 160 A
- Max. input current DC
- 160 A
- Performance level according to EN ISO 13849-1
- None
- Type of output voltage
- AC/DC
- SIL according to IEC 61508
- None
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3595863992175
- SAP 1000011132
- Code 889056
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric INS45026 Table-Mount Bracket Kit, Zinc-Plated, Halogen-Free
Schneider Electric

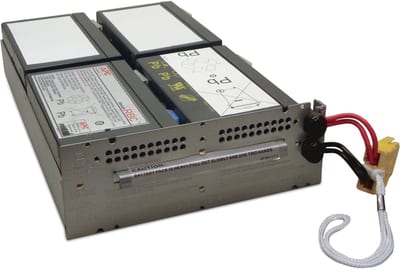

APC Replacement Battery Cartri (APCRBC133)
Schneider Electric

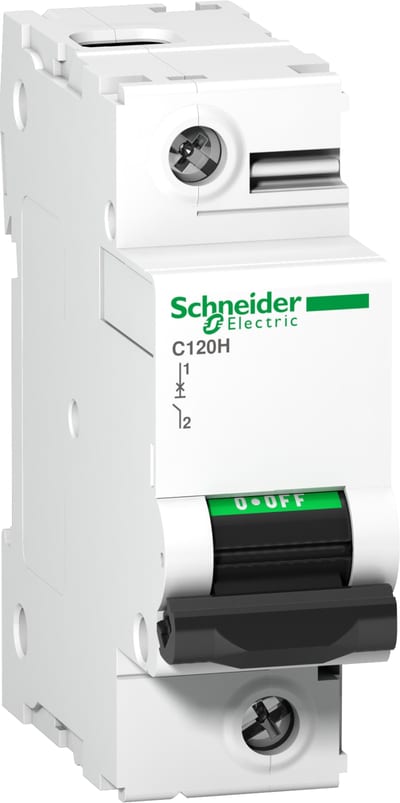

Schneider Electric Miniature circuit breaker (MCB), ACTI9 C120H, 1P, 100A, B curve, 15000A (IEC/EN 60898-1), 15KA (IEC/EN 60947-2) A9N18403
Schneider Electric

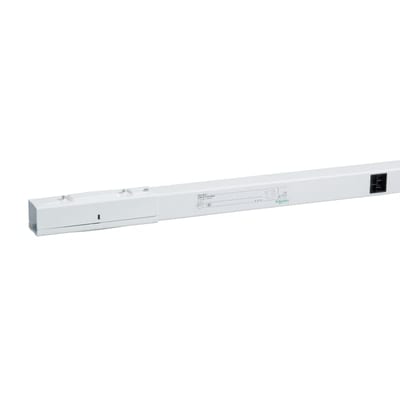

Schneider Electric Straight length, Canalis KBB, 40 A, 1 circuit 3L+N+PE, 2 tap-off units, 2 m, white KBB40ED4202W
Schneider Electric
Tesys T Profib 5-100A 230VAC
LTMR100PFM
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100HB2, 100KA/690VAC, 3 poles, MicroLogic 6.2E-M trip unit 50A C10W36M050
Schneider Electric

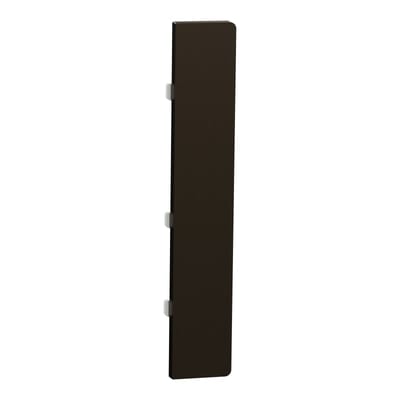

Schneider Electric Push button, KNX, Merten System Design, 1GANG, rockers, mocca metallic MTN6191-6052
Schneider Electric

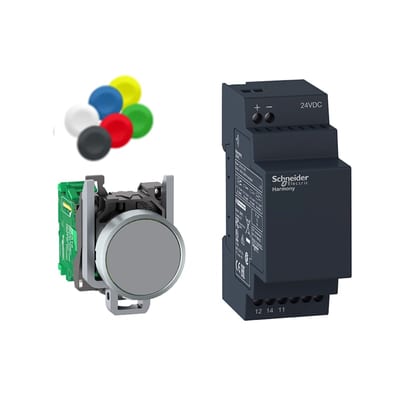

Schneider Electric Wireless and batteryless package, Harmony XB5R, Wireless metal 22mm black pushbutton, non configurable receiver, 24V DC XB4RFB01
