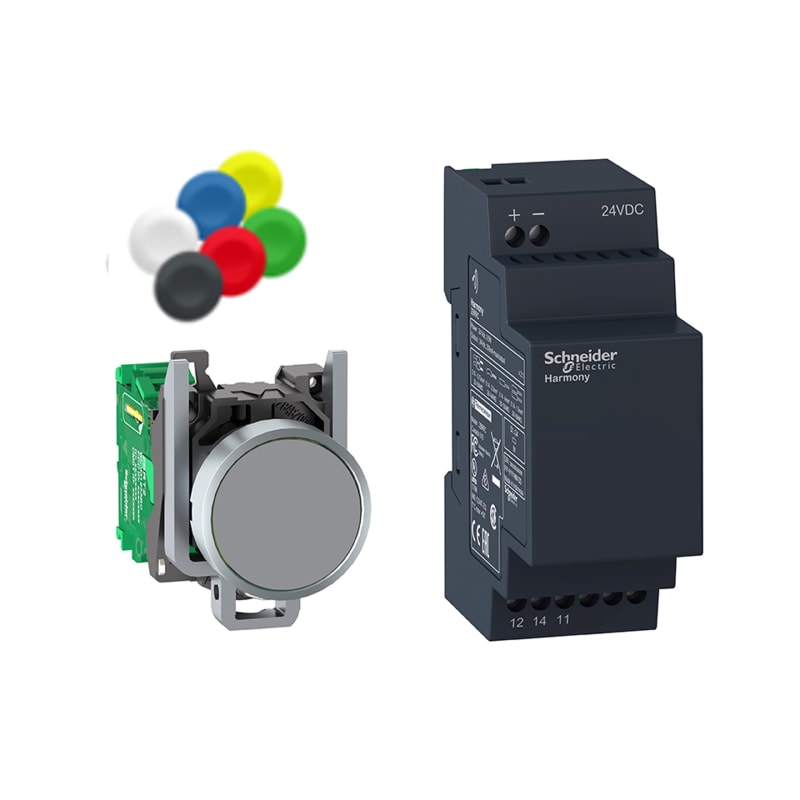

Schneider Electric Wireless and batteryless package, Harmony XB5R, Wireless metal 22mm black pushbutton, non configurable receiver, 24V DC XB4RFB01
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric XB4RFB01 — Harmony XB4 22 mm command actuator. Metal or plastic 22 mm cutout push-button, selector or indicator. Wireless set with wireless push-button in metal and parret receiver 1 C/O output and 24VDC supply.
Technical Specifications
- Manufacturer part number (MPN)
- XB4RFB01
- EAN / GTIN
- 3606480436024
- Sales unit
- pcs
- Package quantity
- 16 pcs
- Range of product
- Harmony XB4R
- Product or component type
- Wireless and batteryless package
- Device short name
- XB4R
- Head material
- Metal
- frequency
- 2405 MHz for transmitter; 2405 MHz for receiver
- emission class
- 5M00G7W
- Antenna type
- Omnidirectional
- Control type
- Wireless and batteryless push-button Ø 22 mm assembled on fixing collar
- Type of receiver
- Non-programmable receiver (1 relay)
- [Us] rated supply voltage
- 24 V DC
- Kit composition
- 1 fixing collars; 1 diameter: 22 mm; 1 push-button head diameter: 22 mm; 1 transmitter; 1 receiver; 1 set of caps
- Communication port protocol
- Zigbee conforming to IEEE 802.15.4
- Max power consumption in W
- 1 mW
- Number of channels
- 1
- Modulation Technique
- O-QPSK
- Bandwidth
- 5 MHz
- Antenna gain
- 0 dBi
- Supply voltage
- 24 V
- Product certifications
- CCC; C-Tick; GOST; CSA; UL
- Marking
- CE
- Standards
- UL 508; IEC 60947-1; CSA C22.2 No 14; IEC 60947-5-1
- Radio agreement
- ARIB T66; RSS; ICASA; SRRC; FCC; ANATEL
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 16
- Warranty (in months)
- 18
- Hole diameter
- 22.5 mm
- Colour button
- Black
- Suitable for lighting
- No
- Number of command positions
- 1
- Spring-return
- Yes
- Type of button
- Flat
- Colour front ring
- Chrome
- Width opening
- 30 mm
- Height opening
- 46.5 mm
- Degree of protection (IP)
- IP65
- Material front ring
- Metal
- With front ring
- Yes
- Transparent
- No
- Construction type lens
- Round
- Supply voltage lamp
- 24 V
- Switching function latching
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 3606480436024
- SAP 1000263825
- Code 81292763
