Schneider Electric
Tilkopl.Terminal NSX/INS250 P.C. Cablef. G
Part numberLVS04064EAN / GTIN3606481867285HS code8536.90
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

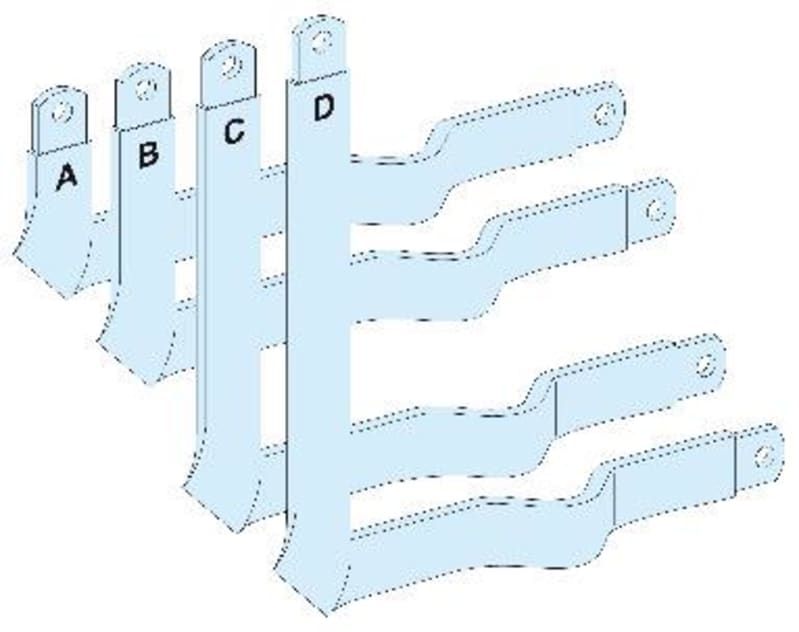

Schneider Electric LVS04064 Universal Tilkoplinger-NSX100-250/INS250-250A-4P-vertical-mounting in cable compartment-PrismaSeT G/P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04064
- EAN / GTIN
- 3606481867285
- Sales unit
- pcs
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- Connection
- Product name
- Linergy BW
- Accessory / separate part category
- Current distribution accessory
- Standards
- IEC 61439-1, inside enclosure; IEC 61439-2, inside enclosure
- Product certifications
- ASTA
- Cubicle-device connection
- Linergy BW universal power supply block
- Poles description
- 4P
- installation description
- Cubicle duct - width 300 mm; Floor-standing duct - width 300 mm; Wall-mounted duct - width 300 mm
- Installed device
- ComPact: fixed INS250 - control: direct front rotary handle vertical installation; ComPact: fixed INV250 - control: direct front rotary handle vertical installation; EasyPact: fixed CVS100...160 without earth leakage protection - control: direct front rotary handle vertical installation; EasyPact: fixed CVS250 without earth leakage protection - control: direct front rotary handle vertical installation; EasyPact: fixed CVS100...160 without earth leakage protection - control: toggle vertical installation; EasyPact: fixed CVS250 without earth leakage protection - control: toggle vertical installation; ComPact: fixed INV100 - control: direct front rotary handle vertical installation; ComPact: fixed NSX100...160 without earth leakage protection - control: toggle vertical installation; ComPact: fixed NSX250 without earth leakage protection - control: toggle vertical installation; ComPact: fixed NSX100...160 without earth leakage protection - control: direct front rotary handle vertical installation; ComPact: fixed NSX250 without earth leakage protection - control: direct front rotary handle vertical installation; ComPact: fixed INV200 - control: direct front rotary handle vertical installation; ComPact: fixed INV160 - control: direct front rotary handle vertical installation
- [Ie] rated operational current
- 250 A
- Colour
- Anthracite grey (RAL 7016)
- Product weight
- 2.72 kg
- Quantity per set
- Set of 4
- functional unit
- 300 mm PrismaSeT P cubicle duct; 300 mm PrismaSeT G floor-standing duct EasyPact CVS100...160 without fixed toggle vertical 3P 1 direct with long terminal shield 9; 300 mm PrismaSeT G wall-mounted duct EasyPact CVS100...160 without fixed toggle vertical 3P 1 direct with long terminal shield 9; 300 mm PrismaSeT G floor-standing duct EasyPact CVS100...160 without fixed toggle vertical 4P 1 direct with long terminal shield 9; 300 mm PrismaSeT G wall-mounted duct EasyPact CVS100...160 without fixed toggle vertical 4P 1 direct with long terminal shield 9; 300 mm PrismaSeT G floor-standing duct EasyPact CVS100...160 without fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9; 300 mm PrismaSeT G wall-mounted duct EasyPact CVS100...160 without fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9; 300 mm PrismaSeT G floor-standing duct EasyPact CVS100...160 without fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9; 300 mm PrismaSeT G wall-mounted duct EasyPact CVS100...160 without fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9; 300 mm PrismaSeT G floor-standing duct EasyPact CVS250 without fixed toggle vertical 3P 1 direct with long terminal shield 9; 300 mm PrismaSeT G wall-mounted duct EasyPact CVS250 without fixed toggle vertical 3P 1 direct with long terminal shield 9; 300 mm PrismaSeT G floor-standing duct EasyPact CVS250 without fixed toggle vertical 4P 1 direct with long terminal shield 9; 300 mm PrismaSeT G wall-mounted duct EasyPact CVS250 without fixed toggle vertical 4P 1 direct with long terminal shield 9; 300 mm PrismaSeT G floor-standing duct EasyPact CVS250 without fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9; 300 mm PrismaSeT G wall-mounted duct EasyPact CVS250 without fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9; 300 mm PrismaSeT G floor-standing duct EasyPact CVS250 without fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9; 300 mm PrismaSeT G wall-mounted duct EasyPact CVS250 without fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9; 300 mm PrismaSeT G floor-standing duct ComPact INS250 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9; 300 mm PrismaSeT G wall-mounted duct ComPact INS250 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9; 300 mm PrismaSeT G floor-standing duct ComPact INS250 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9; 300 mm PrismaSeT G wall-mounted duct ComPact INS250 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9; 300 mm PrismaSeT G floor-standing duct ComPact INV100 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9; 300 mm PrismaSeT G wall-mounted duct ComPact INV100 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9; 300 mm PrismaSeT G floor-standing duct ComPact INV100 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9; 300 mm PrismaSeT G wall-mounted duct ComPact INV100 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9; 300 mm PrismaSeT G floor-standing duct ComPact INV160 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9; 300 mm PrismaSeT G wall-mounted duct ComPact INV160 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9; 300 mm PrismaSeT G floor-standing duct ComPact INV160 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9; 300 mm PrismaSeT G wall-mounted duct ComPact INV160 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9; 300 mm PrismaSeT G floor-standing duct ComPact INV200 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9; 300 mm PrismaSeT G wall-mounted duct ComPact INV200 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9; 300 mm PrismaSeT G floor-standing duct ComPact INV200 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9; 300 mm PrismaSeT G wall-mounted duct ComPact INV200 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9; 300 mm PrismaSeT G floor-standing duct ComPact INV250 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9; 300 mm PrismaSeT G wall-mounted duct ComPact INV250 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9; 300 mm PrismaSeT G floor-standing duct ComPact INV250 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9; 300 mm PrismaSeT G wall-mounted duct ComPact INV250 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9; 300 mm PrismaSeT G floor-standing duct ComPact NSX100...160 without fixed toggle vertical 3P 1 direct with long terminal shield 9; 300 mm PrismaSeT G wall-mounted duct ComPact NSX100...160 without fixed toggle vertical 3P 1 direct with long terminal shield 9; 300 mm PrismaSeT G floor-standing duct ComPact NSX100...160 without fixed toggle vertical 4P 1 direct with long terminal shield 9; 300 mm PrismaSeT G wall-mounted duct ComPact NSX100...160 without fixed toggle vertical 4P 1 direct with long terminal shield 9; 300 mm PrismaSeT G floor-standing duct ComPact NSX100...160 without fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9; 300 mm PrismaSeT G wall-mounted duct ComPact NSX100...160 without fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9; 300 mm PrismaSeT G floor-standing duct ComPact NSX100...160 without fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9; 300 mm PrismaSeT G wall-mounted duct ComPact NSX100...160 without fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9; 300 mm PrismaSeT G floor-standing duct ComPact NSX250 without fixed toggle vertical 3P 1 direct with long terminal shield 9; 300 mm PrismaSeT G wall-mounted duct ComPact NSX250 without fixed toggle vertical 3P 1 direct with long terminal shield 9; 300 mm PrismaSeT G floor-standing duct ComPact NSX250 without fixed toggle vertical 4P 1 direct with long terminal shield 9; 300 mm PrismaSeT G wall-mounted duct ComPact NSX250 without fixed toggle vertical 4P 1 direct with long terminal shield 9; 300 mm PrismaSeT G floor-standing duct ComPact NSX250 without fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9; 300 mm PrismaSeT G wall-mounted duct ComPact NSX250 without fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9; 300 mm PrismaSeT G floor-standing duct ComPact NSX250 without fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9; 300 mm PrismaSeT G wall-mounted duct ComPact NSX250 without fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.0 cm
- Package 1 Width
- 28.0 cm
- Package 1 Length
- 38.5 cm
- Package 1 Weight
- 2.726 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 18
- Package 2 Height
- 24.0 cm
- Package 2 Width
- 80.0 cm
- Package 2 Length
- 120.0 cm
- Package 2 Weight
- 60.5 kg
- Warranty (in months)
- 18
- RAL-number
- 7016
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481867285
- SAP 1200546564
- Code 82879403
Product Documentation
Document preview: Schneider Electric LVS04064 — OEM Product Page
More from Schneider Electric
Schneider Electric
Schneider Electric Auxiliary contact block, TeSys D, 2NC, side mounting, screw clamp terminals LAD8N02
Schneider Electric
Schneider Electric ClimaSys forced vent. IP54, 165M3/h, 115V, with outlet grille and filter G2 NSYCVF165M115PF
Schneider Electric
Schneider Electric Floor standing encl.polyester vers.PLAZT w/open plinth+canopy 500X750X320 IP44 NSYPLAZT573G
Schneider Electric

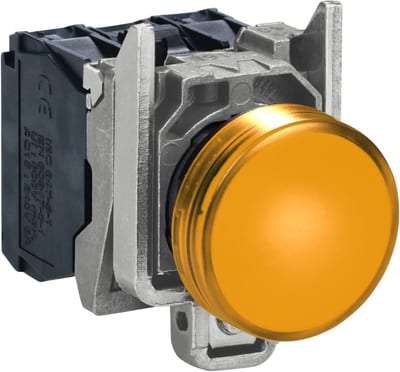

Schneider Electric Pilot light, Harmony XB4,metal, orange, 22mm, universal LED, plain lens, 110...120V AC XB4BVG5
Schneider Electric

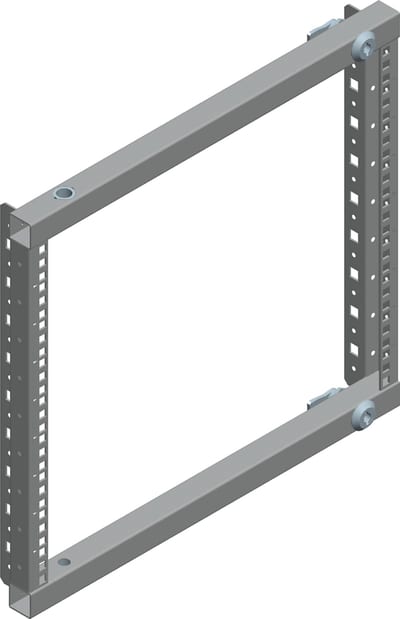

Schneider Electric PanelSeT SF/SM partial 19" swing rack - 1002 mm NSYRSWP21
Schneider Electric
Schneider Electric Actassi - bracket - set of 2 - depth 800 mm NSYAEBP2FS8
Schneider Electric

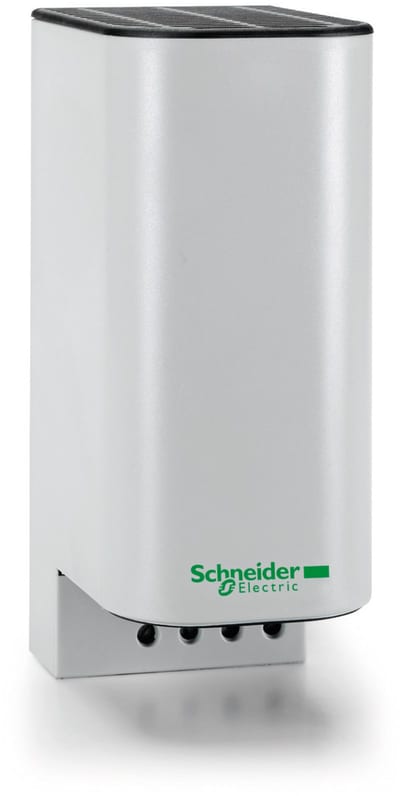

Schneider Electric ClimaSys PTC heating resistance 150W, 12-24V insulate NSYCR150WU1C
Schneider Electric

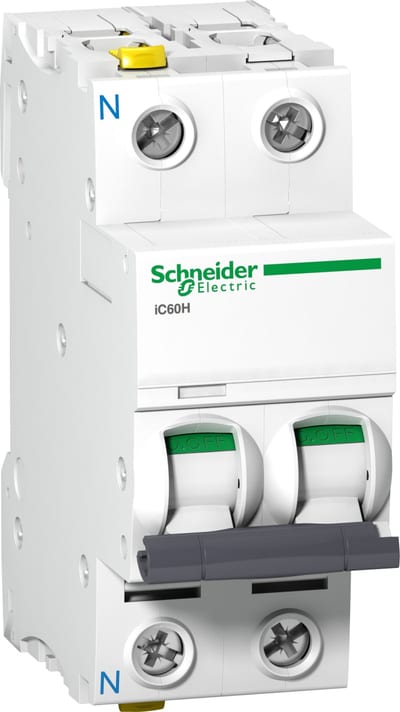

Schneider Electric A9F06650 ACTI9 IC60H Miniature Circuit Breaker 1P+N 50 A, Curve B
