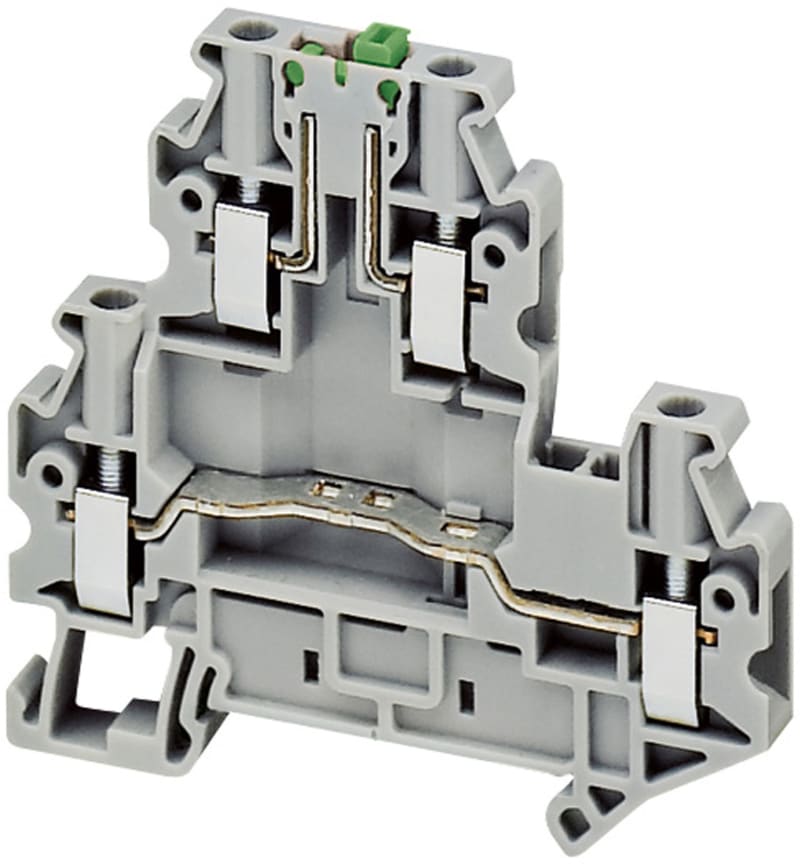

Schneider Electric NSYTRV42SCD Linergy TR Blade-Disconnect Terminal Block 4 mm² Grey 2-Level

Schneider Electric NSYTRV42SCD is a two-level Linergy TR blade-disconnect terminal block in grey, for 4 mm² conductors mounted clip-on to a DIN rail. It carries a rated current of 30 A at 500 V (IEC 60947-7-1) via one upstream and one downstream screw terminal, accepting flexible or solid conductors from 0.14 to 6 mm² with 0.6-0.8 N·m tightening torque. The polyamide 6/6 housing measures 6.2 mm wide, 65 mm high and 69.9 mm long; the block is sold in sets of 50.

Manufacturer part number (MPN)

NSYTRV42SCD

EAN / GTIN

3606480532306

Sales unit

pcs

Package quantity

50 pcs

Conductor cross-section

4 mm²

Range

Linergy

Product name

Linergy TR

Product or component type

Terminal block

Device short name

TRV

Terminal block type

Blade disconnect

Terminal block level

2

mounting mode

Clip-on

Nominal cross section

4 mm²

Length

69.9 mm

Colour

Grey

Quantity per set

Set of 50

Width

6.2 mm

Height

65 mm

Connections - terminals

1 x screw terminal: upstream; 1 x screw terminal: downstream

number of connections

2

Connection position

Sideways

Number of measurement input

2

Cable cross section

0.14…6 mm², flexible without cable end; 0.14…6 mm², solid

Tightening torque

0.6…0.8 N.m

Wire stripping length

9 mm

Tool type

Connection: screwdriver; Disconnection: screwdriver

[Ue] rated operational voltage

500 V conforming to EN/IEC 60947-7-1; 300 V CSA; 300 V UL

[In] rated current

30 A conforming to EN/IEC 60947-7-1; 30 A CSA; 30 A UL

Material

Polyamide 6/6: insulating case

Dielectric loss

0.01 at 1 MHz conforming to IEC 60250; 0.01 at 1 MHz conforming to VDE 0303-T4

Dielectric constant

3.7 at 1 MHz

Resistivity

10000 MΩ.m conforming to IEC 60093; 10000 MΩ.m conforming to VDE 0303-T30

Surface resistance

1000 GΩ conforming to IEC 60093; 1000 GΩ conforming to VDE 0303-T30

Creep resistance

500 CTI (> 400 kB) conforming to IEC 60093; 500 CTI (> 400 kB) conforming to VDE 0303-T30

Flame retardance

V0, thickness0.8 mm conforming to UL 94

Product weight

2.7 g

Range compatibility

PrismaSeT G; PrismaSeT P; PrismaSet HD; PrismaSeT Pack 250; PanelSeT; Mureva; TeSys

Product compatibility

Spacial enclosures

Product certifications

CSA; UL

Dielectric strength

1000 V conforming to IEC 60243-1

Ambient air temperature for operation

-40…130 °C conforming to IEC 60216-1; -40…130 °C conforming to VDE 0304-T21

Number of Units in Package 1

1

Number of Units in Package 2

50

Number of Units in Package 3

400

Country of origin

PL

Warranty (in months)

18

Connectable conductor cross section solid-core

0.14–6 mm²

Connectable conductor cross section multi-wired

0.14–6 mm²

Rated current In

30 A

Rated voltage

500 V

Type of electrical connection 1

Screw connection

Type of electrical connection 2

Screw connection

Number of levels

2

Number of clamp positions per level

1

Internally connected stages

No

Mounting method

DIN rail (top hat rail) 35 mm

Material insulation body

Thermoplastic

Operating temperature

-40–130 °C

Width/grid dimension

6.2 mm

Depth

69.9 mm

Closing plate required

Yes

Type of slitting

Swivelling

Type of cross disconnection

Swivelling

With integrated test socket

No

HS Code

8536.90
