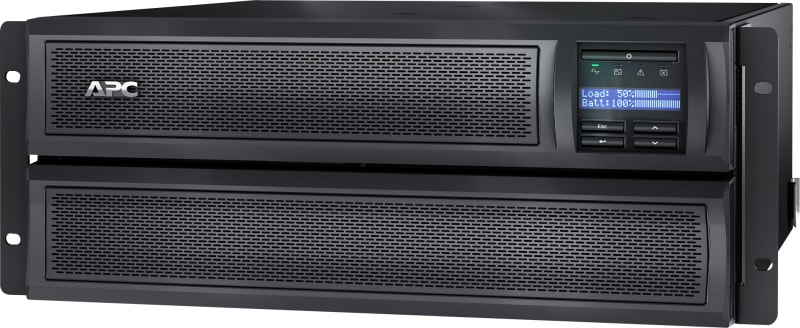

APC Smart-UPS X 2200VA Short D
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric SMX2200HV APC by Schneider Electric.
Technical Specifications
- Manufacturer part number (MPN)
- SMX2200HV
- EAN / GTIN
- 0731304292609
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Presentation
- Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
- Main input voltage
- 208 V AC 1 phase; 230 V AC 1 phase
- Other input voltage
- 220 V; 240 V
- Input connection
- IEC 320 C20; Schuko CEE 7 / EU1-16P; BS1363A British
- Efficiency at full load
- 140...280 V
- Input frequency
- 50/60 Hz +/- 3 Hz auto-sensing
- Output voltage
- 208 V AC 1 phase; 230 V AC 1 phase
- Other output voltage
- 208 V; 220 V; 240 V
- Rated power in W
- 1980 W
- Rated power in VA
- 2200 VA
- Output connection
- 8 IEC 320 C13; 2 IEC Jumpers; 2 IEC 320 C19
- Harmonic distortion
- Less than 5 %
- Maximum configurable power in VA
- 2200 VA
- Maximum configurable power in W
- 1980 W
- Transfer time
- 6 ms typical : 10 ms maximum
- UPS topology
- Line interactive
- Waveform type
- Its wave
- Output frequency
- 50/60 Hz +/- 3 Hz sync to mains
- Replacement battery
- APCRBC143
- Run Time
- View Runtime Graph
- Efficiency
- View Efficiency Graph
- Battery type
- Lead-acid internal included
- Control panel
- Multifunction LCD status and control console
- Emergency power off
- Yes
- Free slot
- 1
- Alarm
- Alarm when on battery : distinctive low battery alarm : configurable delays
- UPS connectivity
- Serial port; USB port; Available expansion slot
- Surge energy rating
- 645 J
- Noise filtering
- Full time multi-pole noise filtering : 0.3% IEEE surge light-through : zero clamping response time : meets UL 1449
- Number of rack unit
- 4U
- Cable length
- 2.00 m
- Number of cables
- 1
- Color
- Black
- Height
- 432 mm
- Width
- 178 mm
- Depth
- 483 mm
- Product weight
- 38.56 kg
- Mounting location
- Front
- Mounting preference
- Lower
- Mounting mode
- Rack-mounted
- Two post mountable
- 1
- USB compatible
- Yes
- Provided equipment
- CD with software; Documentation CD; Rack mounting support rails; Smart UPS signalling RS-232 cable; User manual; USB cable
- Number of power modules
- 0
- Number of power module filled slots
- 0
- Number of power module free slots
- 0
- Additional specification
- Extended run
- Redundant
- No
- Range of product
- Smart-UPS
- Product or component type
- Uninterruptible power supply (UPS)
- Product certification
- CE; EAC; IRAM; RCM; TISI; VDE; UK PSTI
- Standard
- EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0…40 °C
- Ambient air temperature for storage
- -15…45 °C
- Storage altitude
- 0…15240 m
- Relative humidity
- 0…95 %
- Storage relative humidity
- 0…95 %
- Acoustic level
- 55 dBA
- Heat dissipation
- 150 Btu/h
- Operating altitude
- 0...10000 ft
- Extendable runtime
- 1
- Included battery module
- 0
- Empty battery slot
- 0
- Typical recharge time
- 3 h
- RBC quantity
- 1
- Battery life
- 3…5 year(s)
- Battery charging power
- 233 W rated
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 4
- Pallet unit layers
- 2
- Pallet layers
- 4
- Country of origin
- PH
- Warranty (in months)
- 36 UPS|24 Battery
