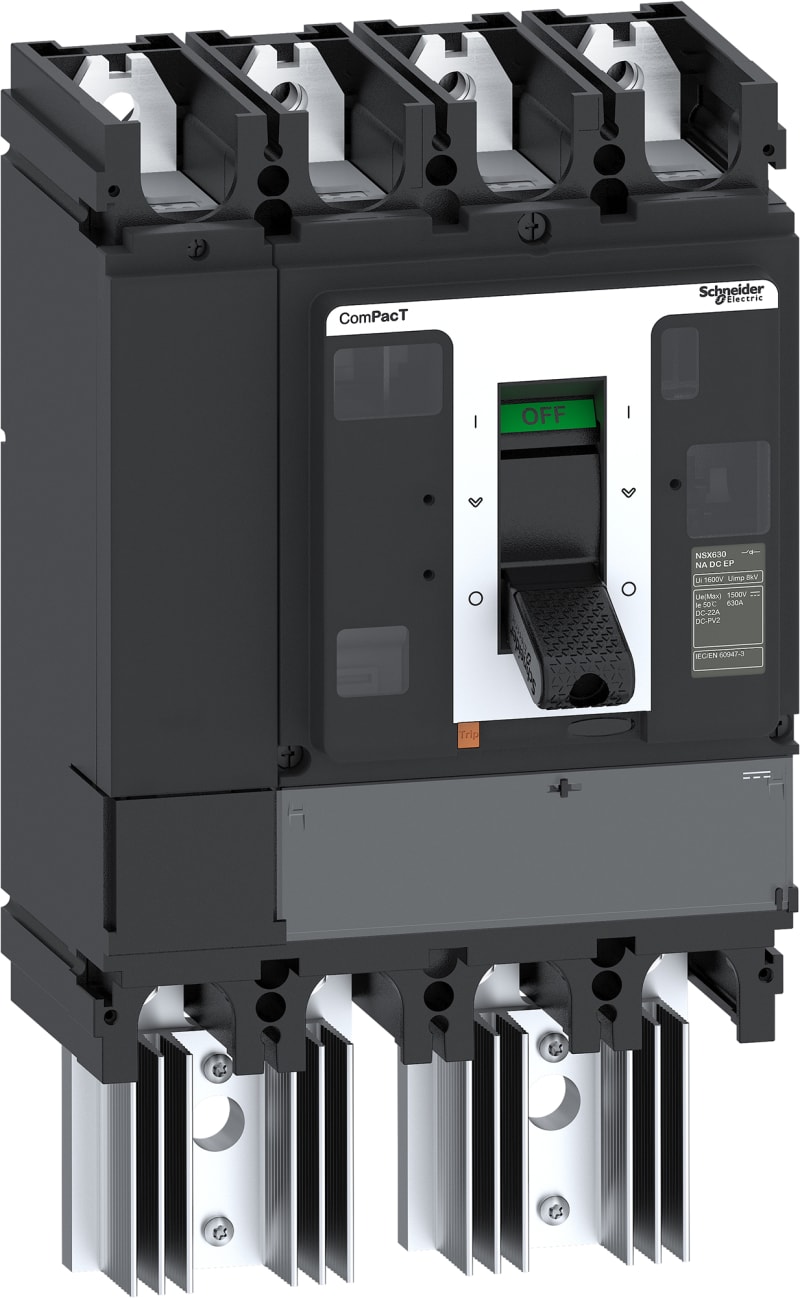

Schneider Electric Switch disconnector ComPacT NSX630NA DC EP, 4 poles, fixed, 320A rating, 1500V C634320D3S
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric C634320D3S Load-break switch NSX630 NA DC EP 4P 320A - 1500V DC.
Technical Specifications
- Manufacturer part number (MPN)
- C634320D3S
- EAN / GTIN
- 3606481988690
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Number of poles
- 4P
- Range
- ComPacT
- Product name
- ComPacT NSX DC EP
- Device short name
- NSX250 DC EP
- Product or component type
- Switch disconnector
- Device application
- Photovoltaic; Marine application
- Poles description
- 4P
- [Ith] conventional free air thermal current
- 320 A at 40 °C
- [Ie] rated operational current
- DC-22A: 320 A DC 1500 V; DC-PV2: 320 A DC 1500 V
- [Ue] rated operational voltage
- 1500 V DC
- Network type
- DC
- Suitability for isolation
- Yes conforming to EN/IEC 60947-3
- Utilisation category
- DC-22A; DC-PV2
- Breaking capacity code
- NA
- Contact position indicator
- Yes
- Visible break
- No
- mounting mode
- Fixed
- [Icw] rated short-time withstand current
- 7.56 kA during 1 s
- [Icm] rated short-circuit making capacity
- 7.56 kA switch-disconnector alone
- Control type
- Toggle
- [Ui] rated insulation voltage
- 1600 V DC
- [Uimp] rated impulse withstand voltage
- 8 kV
- Mounting support
- Backplate
- Upside connection
- Front
- Downside connection
- Front
- Connection pitch
- 45 mm
- Mechanical durability
- 8000 cycles
- Electrical durability
- 3000 cycles 1500 V DC In
- Width (W)
- 185 mm
- Height (H)
- 255 mm
- Depth (D)
- 110 mm
- Product weight
- 8.1 kg
- Standards
- EN/IEC 60947-1; EN/IEC 60947-3
- Product certifications
- CE; CCC
- IP degree of protection
- IP40 conforming to IEC 60529
- IK degree of protection
- IK07 conforming to IEC 62262
- Electrical shock protection class
- Class II
- Pollution degree
- 3 conforming to IEC 60664-1
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -50…85 °C
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481988690
- SAP 1200722368
- Code 83837143
Product Documentation
More from Schneider Electric
Schneider Electric

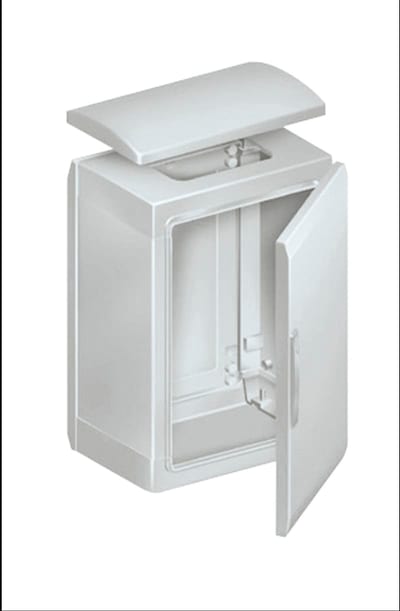

Schneider Electric Floor standing encl. polyester vers.PLAT open top w/ canopy 500X500X320 IP44 NSYPLAT553G
Schneider Electric
Schneider Electric Trip unit MA2.5, ComPacT NSX100, 3 poles, magnetic protections, motor protection, 2.5A rating C103MA003
Schneider Electric

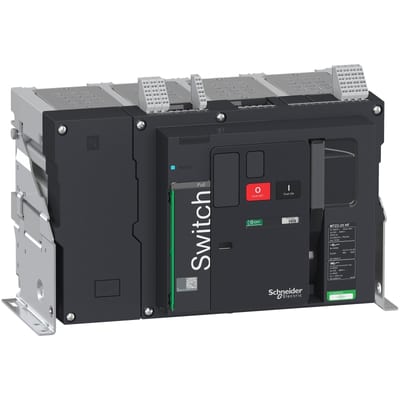

Schneider Electric switch disconnector Masterpact MTZ2 25 HF, 2500 A, 4 poles, fixed LV848081
Schneider Electric

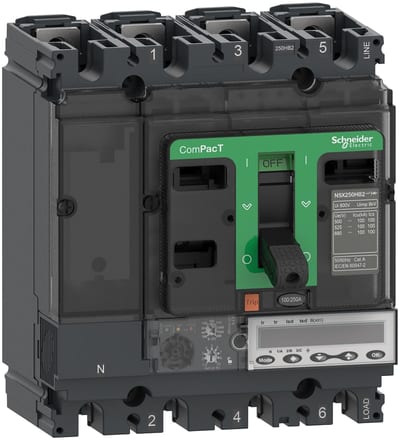

Schneider Electric Circuit breaker, ComPacT NSX100HB2, 100KA/690VAC, 4 poles, MicroLogic 5.2E trip unit 40A C10W45E040
Schneider Electric

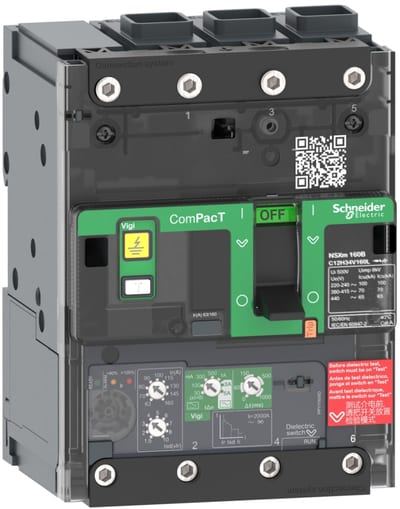

Schneider Electric Circuit breaker, ComPacT NSXm 160N, 50KA/415VAC, 3 poles, MicroLogic 4.1 trip unit 160A, EverLink lugs C12N34V160L
Schneider Electric

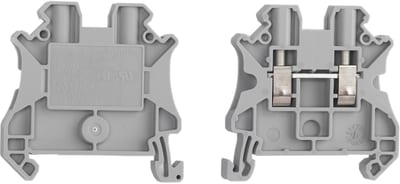

DIN-rail terminal 4mm² grey 2P
NSYTRV42
Schneider Electric

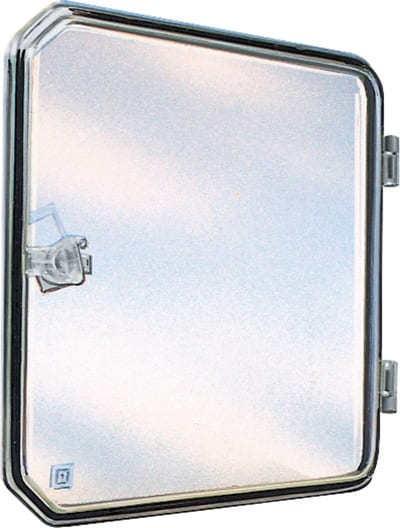

Schneider Electric Plastic window with hinged transparent cover. L78XW130XD25MM. NSYVA276MA
Schneider Electric

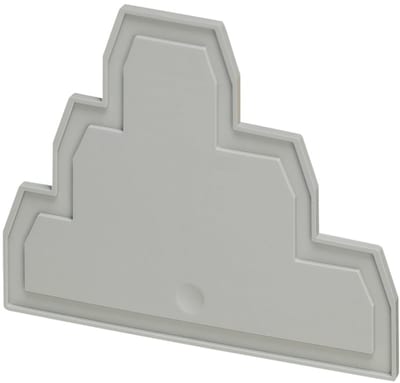

Schneider Electric NSYTRACE26 Linergy TR End Plate for Screw Terminal Blocks
