Top plate IP55 PrismaSeT P B400 D600
Pricing
Request a quote
We reply within 24 hours
Product Description

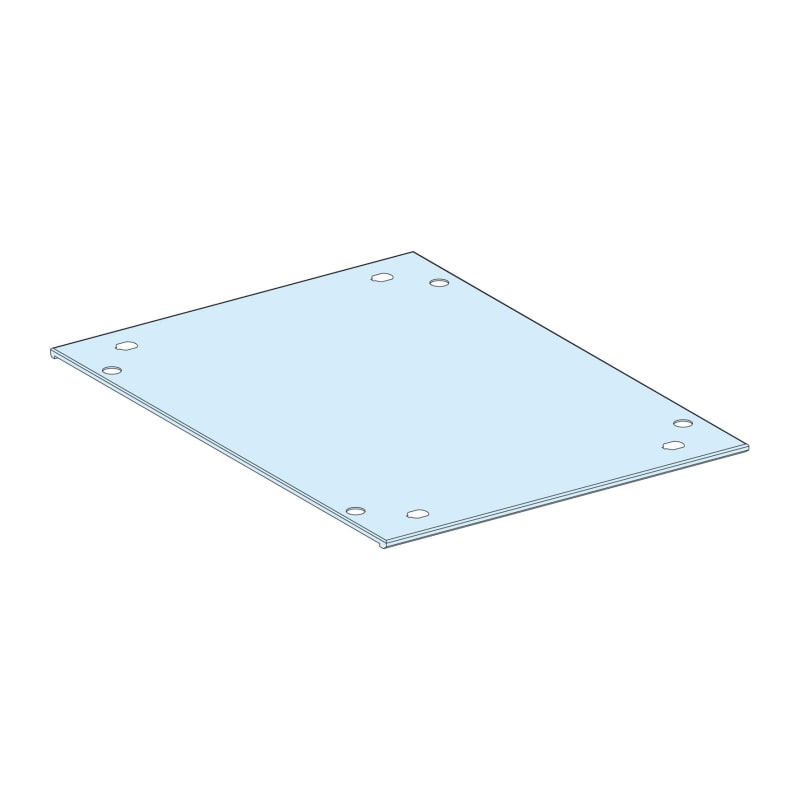

Schneider Electric LVS08654 Top plate IP55 PrismaSeT P-width 400mm depth 600mm.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08654
- EAN / GTIN
- 3606481877543
- Sales unit
- pcs
- IP rating
- IP55
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Roof
- Range compatibility
- PrismaSeT PrismaSeT P enclosure
- Device application
- Low voltage electrical distribution
- Enclosure type
- Metal enclosure
- installation description
- Cubicle - width 400 mm, depth 600 mm
- Standards
- IEC 61439-1 for enclosure; IEC 61439-2 for enclosure
- Product certifications
- ASTA
- Material
- Treated sheet steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Special colour options
- Yes
- Width
- 400 mm
- Depth
- 600 mm
- Product weight
- 2.72 kg
- Quantity per set
- Set of 1
- IP degree of protection
- IP55 for enclosure
- IK degree of protection
- IK10
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.000 cm
- Package 1 Width
- 42.000 cm
- Package 1 Length
- 62.500 cm
- Package 1 Weight
- 2.759 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 36
- Package 2 Height
- 87.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 112.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- RAL-number
- 9003
- With cable entry
- No
- Suitable for enclosure building width
- 400 mm
- Suitable for enclosure building depth
- 600 mm
- With de-aeration
- No
- Suitable for outdoor set-up
- No
- Surface finishing
- Powder coating
- Suitable for roof planking
- Yes
- Suitable for bottom planking
- No
- Suitable for outdoor installation
- No
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481877543
- SAP 1200547315
- Code 82880238
Product Documentation
More from Schneider Electric
Schneider Electric
Front plate 2M modular products PrismaSeT G/P
LVS03202
Schneider Electric
BOX 25A 3L+N Diazed E27
KSB25SD4
Schneider Electric
Schneider Electric power supply module X80 - 24..48 V DC - 31.2 W BMXCPS3020
Schneider Electric
Schneider Electric Residual current circuit breaker (RCCB), ACTI9 iID, 2P, 25A, A-SI type, 30MA, double terminal A9Z31225
Schneider Electric
Sealed Front plate 9MODULES PrismaSeT G/P
LVS03807
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 9A, 110V DC coil, screw clamp terminals LC1D09FD
Schneider Electric
Control desk 10X10X4
NSYSD10
Schneider Electric
Schneider Electric Trip unit MicroLogic 2.2M, ComPacT NSX250, 3 poles, electronic basic protections, motor protection, 220A rating C2532M220
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy LVS08654?
- LVS08654 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is LVS08654.
- What is the HS code for LVS08654?
- The customs tariff (HS) code for LVS08654 is 7326.90.
- Who manufactures LVS08654?
- LVS08654 is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for LVS08654?
- Yes — the LVS08654 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for LVS08654?
- The minimum order quantity is 1.
- Is LVS08654 available?
- Yes — LVS08654 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
