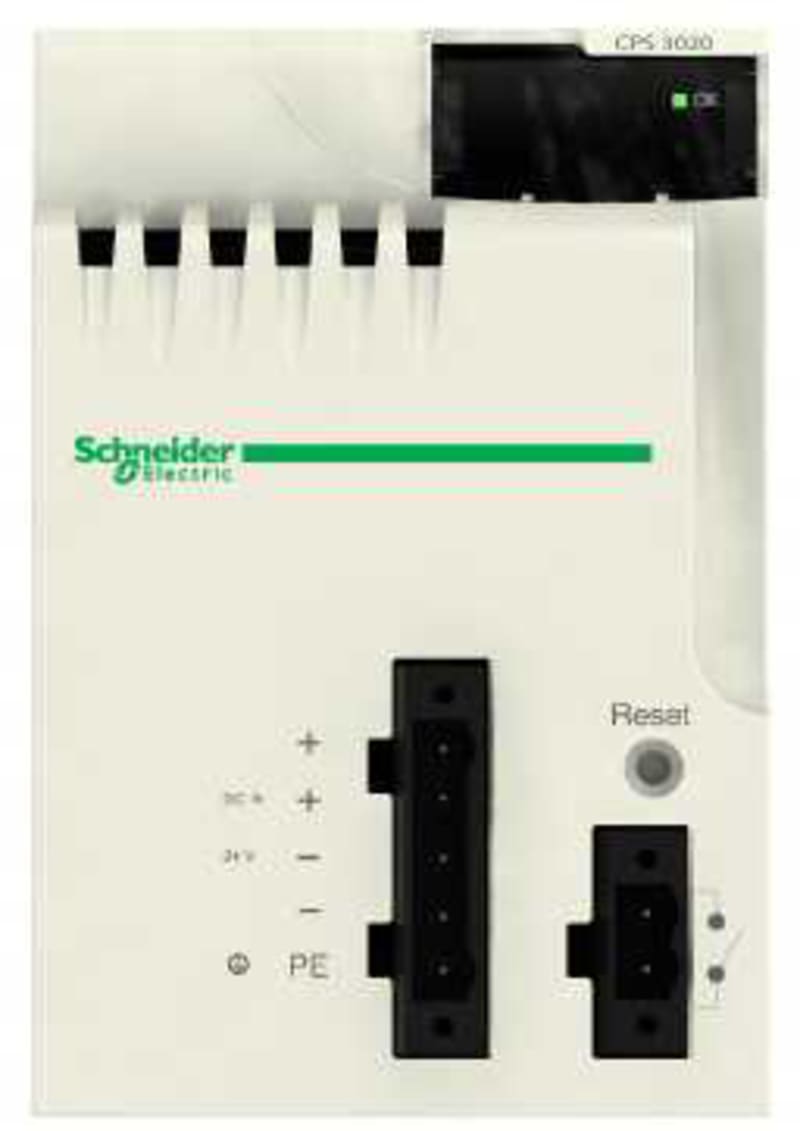

Schneider Electric power supply module X80 - 24..48 V DC - 31.2 W BMXCPS3020

Schneider Electric BMXCPS3020 M340 power supply 24-48VDC,insulated,31W.

Manufacturer part number (MPN)

BMXCPS3020

EAN / GTIN

3595863908985

Sales unit

pcs

Package quantity

2 pcs

Voltage

24-48 V DC

Range of product

Modicon X80

Product or component type

Power supply module

backplane compatibility

Not compatible with BMEXBP..02

Primary voltage

24...48 V isolated

Supply circuit type

DC

Secondary power

15 W 3.3 V DC I/O module logic power supply; 31.2 W 24 V DC I/O module power supply and processor

Primary voltage limit

18...62.4 V

Input current

0.83 A 48 V; 1.65 A 24 V

Inrush current

30 A 24 V; 60 A 48 V

I²t on activation

1 A².s 24 V; 3 A².s 48 V

It on activation

0.2 A.s 24 V; 0.3 A.s 48 V

MTBF reliability

4600000 H

Protection type

Internal fuse not accessible for primary circuit; Overload protection for secondary circuit, 24 V sensor power supply; Overvoltage protection for secondary circuit, 24 V sensor power supply; Short-circuit protection for secondary circuit, 24 V sensor power supply

Current at secondary voltage

1.3 A 24 V DC I/O module power supply and processor; 4.5 A 3.3 V DC I/O module logic power supply

Maximum power dissipation in W

8.5 W

Status LED

1 LED (green) rack voltage OK

Control type

RESET push-button cold restart

Electrical connection

1 connector 2 pin(s)alarm relay; 1 connector 5 pin(s)line supply, protective earth

Maximum cable distance between devices

10 m power supply cable copper 1.5 mm²; 15 m power supply cable copper 2.5 mm²

Insulation resistance

>= 10 MOhm primary/ground; >= 10 MOhm primary/secondary

Product weight

0.34 kg

Immunity to microbreaks

1 ms

Dielectric strength

1500 V primary/ground; 1500 V primary/secondary

Vibration resistance

3 gn

Shock resistance

30 gn

IP degree of protection

IP20

Directives

2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility

Ambient air temperature for storage

-40…85 °C

Ambient air temperature for operation

0…60 °C

Relative humidity

5…95 % at 55 °C without condensation

Protective treatment

TC

Operating altitude

0...2000 m; 2000...5000 m with derating factor

Number of Units in Package 1

1

Number of Units in Package 2

12

Number of Units in Package 3

48

Country of origin

ID

Warranty (in months)

18

Width

68 mm

Height

104 mm

Depth

99 mm

Suitable for safety functions

No

Type of voltage (input voltage)

AC/DC

Power output

31.2 W

Redundancy

No

Output voltage DC

3.3–24 V

Input voltage DC

24–48 V

Max. output current DC

4.5 A

Max. input current DC

1.65 A

Type of output voltage

AC/DC

HS Code

8504.40
