Sealed Front plate 9MODULES PrismaSeT G/P
Pricing
Request a quote
We reply within 24 hours
Product Description

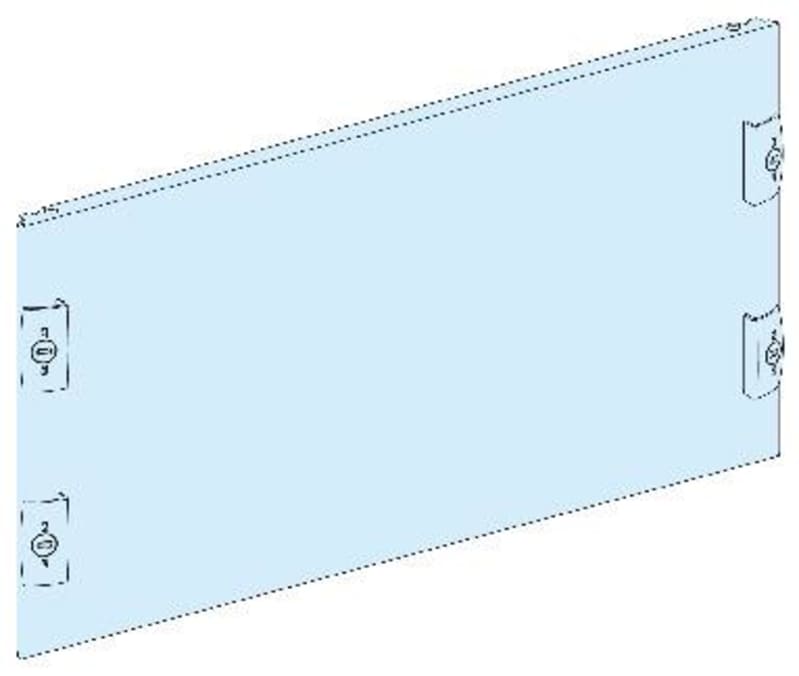

Schneider Electric LVS03807 sealed Front plate 9 Modules PrismaSeT G/P-600/650mm.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03807 EAN / GTIN: 3606481873866 Sales unit: pcs Package quantity: 6 pcs Range: PrismaSeT Range of product: PrismaSeT G; PrismaSeT P Product or component type: Front plate Accessory / separate part category: Installation accessory Range compatibility: PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P cubicle Type of front plate: Plain Installed device: Power meters: kilowatt-hour meters - vertical installation Poles description: 2 x 4P: mounting plate support: kilowatt-hour meters vertical installation Enclosure/cubicle description: Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Cubicle - width 650 mm depth 400 mm; Pack enclosure - width 555 mm Number of vertical modules [50 mm]: 9 Standards: IEC 61439-2; IEC 61439-1 Product certifications: ASTA material: Steel Protective treatment: Electrophoresis treatment and hot-polymerised polyester epoxy powder Surface finish: Matt; Textured Colour: White (RAL 9003) Width: 500 mm Height: 450 mm Product weight: 1.8 kg Quantity per set: Set of 1 functional unit: 600 mm PrismaSeT G floor-standing enclosure power meters kilowatt-hour meters vertical 4P 2 9; 600 mm PrismaSeT G wall-mounted enclosure power meters kilowatt-hour meters vertical 4P 2 9; 650 mm 400 mm PrismaSeT P cubicle power meters kilowatt-hour meters vertical 4P 2 9 Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 3.000 cm Package 1 Width: 45.500 cm Package 1 Length: 51.000 cm Package 1 Weight: 1.850 kg Unit Type of Package 2: P12 Number of Units in Package 2: 20 Package 2 Height: 44.000 cm Package 2 Width: 80.000 cm Package 2 Length: 120.000 cm Package 2 Weight: 49.500 kg Country of origin: FR Warranty (in months): 18 Number of height units: 9 Surface finishing: Powder coating
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481873866
- SAP 1200546747
- Code 82880430
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 9A, 110V DC coil, screw clamp terminals LC1D09FD
Schneider Electric
Control desk 10X10X4
NSYSD10
Schneider Electric
Schneider Electric Trip unit MicroLogic 2.2M, ComPacT NSX250, 3 poles, electronic basic protections, motor protection, 220A rating C2532M220
Schneider Electric
Schneider Electric one piece spreader, 35 mm to 45 mm pitch, ComPact NSX 100/160/250, flat connection, 4 poles LV431061
Schneider Electric
Earth Connection (VZ14)
Schneider Electric
Earth Connection (VZ15)
Schneider Electric
Schneider Electric Harmony RSB Interface Plug-In Relay 12 A 1 CO 230 V AC
RSB1A120P7
Schneider Electric
Basefront 200X1200 (NSYSPF12200)
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy LVS03807?
- LVS03807 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is LVS03807.
- What is the HS code for LVS03807?
- The customs tariff (HS) code for LVS03807 is 7326.90.
- Who manufactures LVS03807?
- LVS03807 is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for LVS03807?
- Yes — the LVS03807 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for LVS03807?
- The minimum order quantity is 1.
- Is LVS03807 available?
- Yes — LVS03807 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
