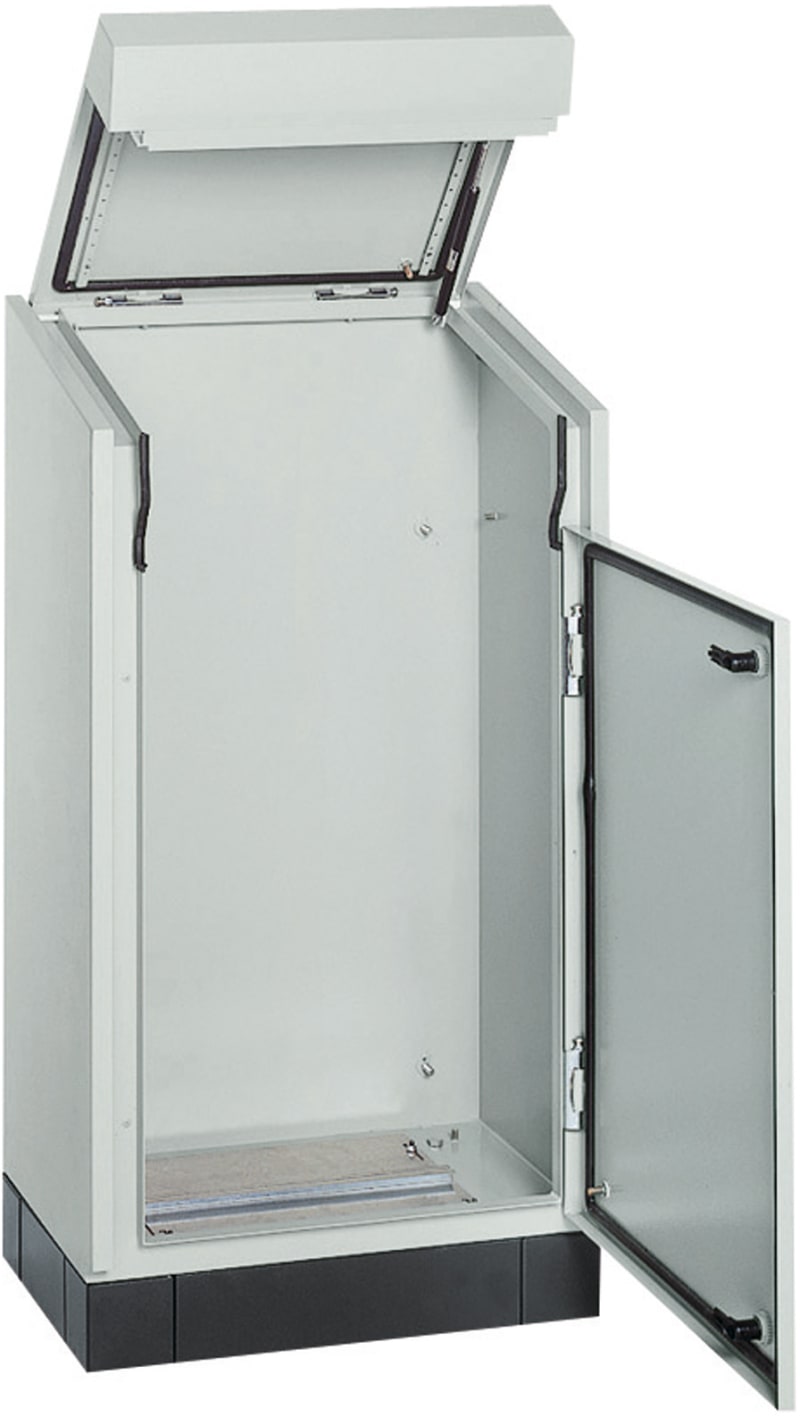

Control desk 10X10X4
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSD10 Control desk 10X10X4.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSD10
- EAN / GTIN
- 3606480154324
- Sales unit
- pcs
- Range
- PanelSeT
- Product name
- PanelSeT SD
- Enclosure type
- Multi-purpose
- Category
- Monobloc control desk
- Nominal height
- 1000 mm
- Nominal width
- 1000 mm
- Nominal depth
- 466 mm
- Product installation
- Floor-standing
- Device composition
- 1 structure; 2 lock: door; 4 adjustment rail; 1 cable gland plate; 2 pneumatic stay: desk lid; 2 door
- Body type
- Single piece structure folded and welded
- Door type
- Plain
- Number of doors
- Front: 2 door(s)
- Door opening side
- Reversible 120 ° door
- Lock type
- 2 points lock, 3 mm double-bar
- Mounting plate description
- Without mounting plate
- Type of gland plate
- 1 entry plate
- Accessibility for operation
- Front
- Removable parts
- Door by hinges; Desk lid by hinges; Cable gland plate by clipping screws
- Material
- Body: steel
- Surface finish
- Epoxy-polyester powder
- thickness
- 1.5 mm
- Standards
- IEC 62208
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK10 conforming to IEC 62262
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 48.000 cm
- Package 1 Width
- 101.000 cm
- Package 1 Length
- 115.000 cm
- Package 1 Weight
- 57.000 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 2
- Package 2 Height
- 130.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 149.000 kg
- Country of origin
- CZ
- Warranty (in months)
- 18
- Colour
- Grey
- Width
- 1000 mm
- Height
- 1000 mm
- Depth
- 466 mm
- RAL-number
- 7035
- Degree of protection (IP)
- IP55
- Surface finishing
- Powder coating
- Component of the desk system
- Base unit
Standards & Compliance
- HS Code
- 9405.42
Cross References
- EAN 3606480154324
- SAP 1000089739
- Code 8915100
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Trip unit MicroLogic 2.2M, ComPacT NSX250, 3 poles, electronic basic protections, motor protection, 220A rating C2532M220
Schneider Electric
Schneider Electric one piece spreader, 35 mm to 45 mm pitch, ComPact NSX 100/160/250, flat connection, 4 poles LV431061
Schneider Electric
Earth Connection (VZ14)
Schneider Electric

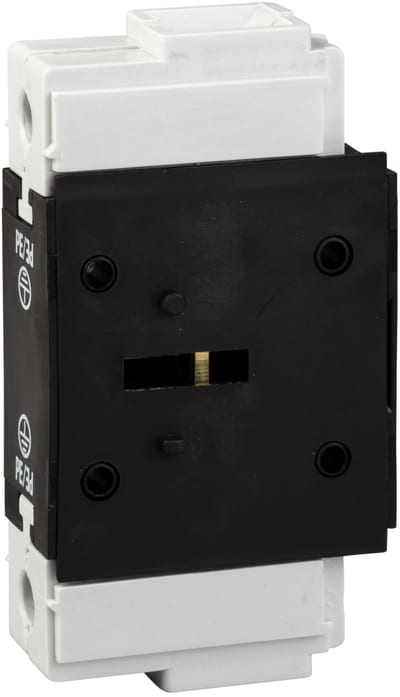

Earth Connection (VZ15)
Schneider Electric

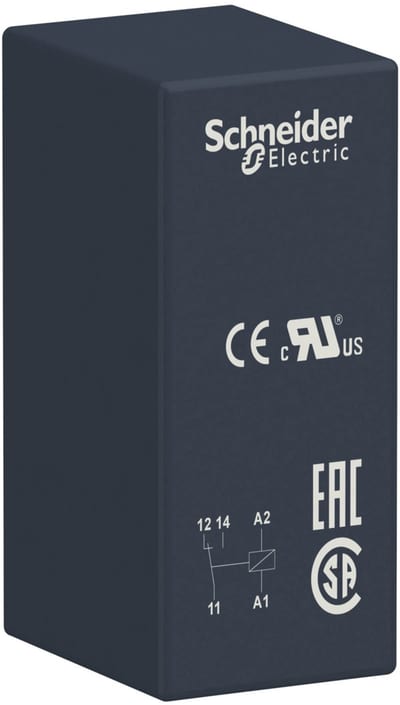

Schneider Electric Harmony RSB Interface Plug-In Relay 12 A 1 CO 230 V AC
RSB1A120P7
Schneider Electric

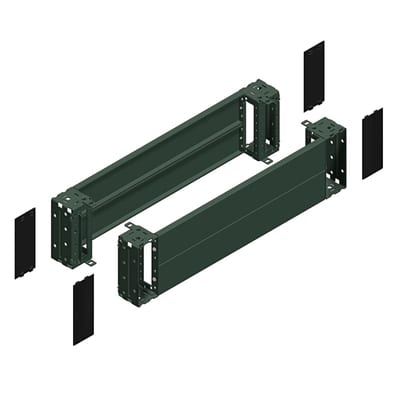

Basefront 200X1200 (NSYSPF12200)
Schneider Electric
Schneider Electric Wall mounted enclosure, PrismaSeT G, W 600mm, H 330mm (6M), IP30 LVS08102
Schneider Electric

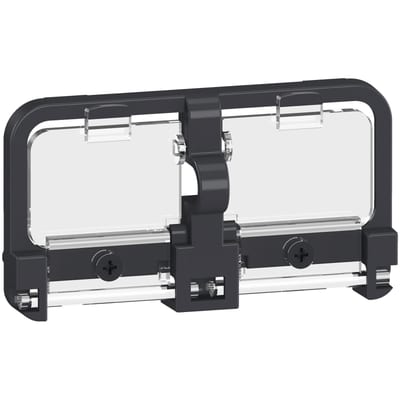

Schneider Electric Push-Button Locking Cover for Masterpact MTZ1
