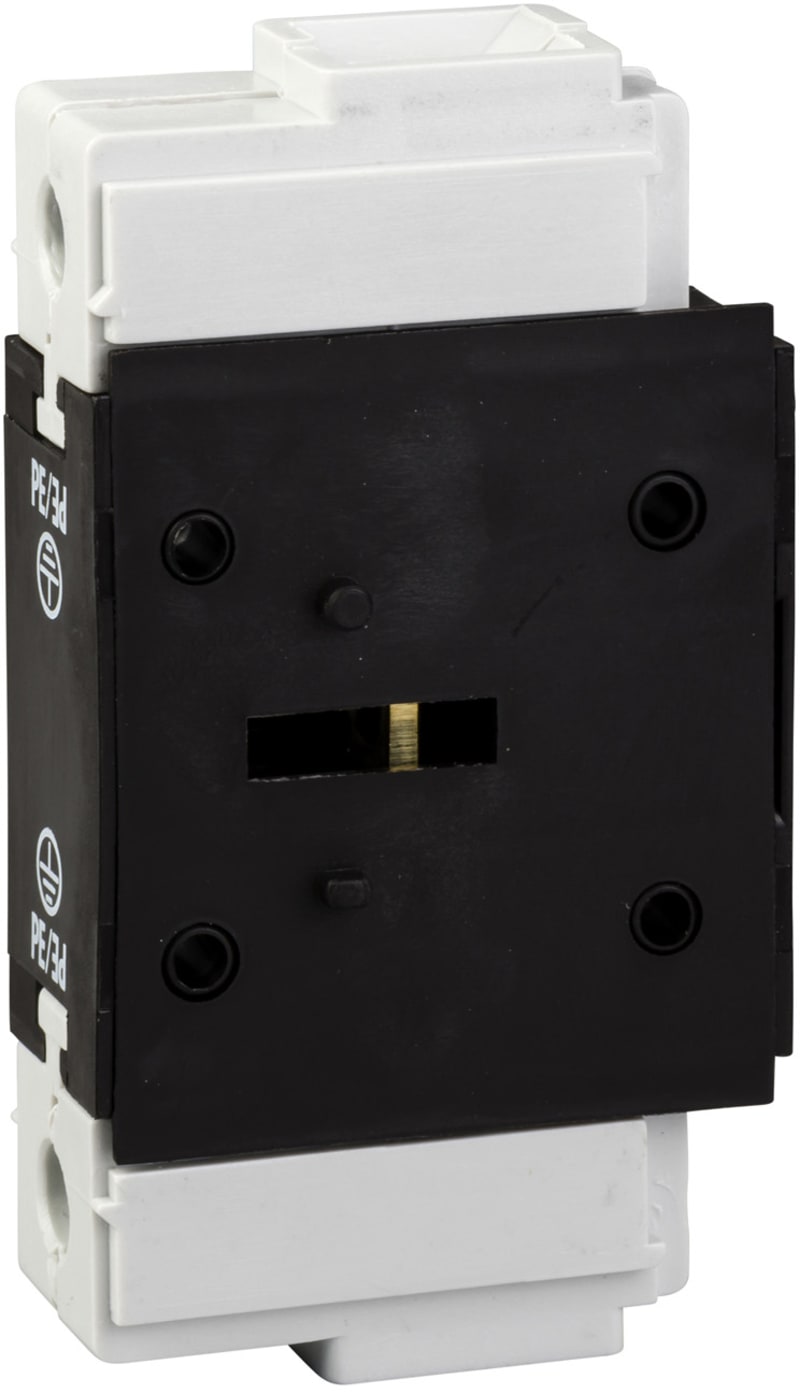

Earth Connection (VZ15)

Schneider Electric VZ15 Earth Connection.

Manufacturer part number (MPN)

VZ15

EAN / GTIN

3389110551945

Sales unit

pcs

Package quantity

69 pcs

Range

TeSys

Device short name

VZ

Product or component type

Additional earthing block

Performance level

High performance

Contacts type and composition

Without

Product compatibility

V3; V4

Network type

DC; AC

Network frequency

50/60 Hz

Mounting location

Left; Right

[Ue] rated operational voltage

690 V AC 50/60 Hz

[Uimp] rated impulse withstand voltage

6 kV

[Ith] conventional free air thermal current

80 A

Connections - terminals

Screw clamp terminals

Height

83 mm

Width

20 mm

Depth

46 mm

Product weight

0.1 kg

Standards

IEC 60947-3

Product certifications

UL; CSA; GL; UKCA

Protective treatment

TC

IP degree of protection

IP20 conforming to IEC 60529

Mechanical robustness

Vibrations 10...150 Hz (5 gn) conforming to IEC 60068-2-6; Shocks 11 ms (15 gn) conforming to IEC 60068-2-27

Ambient air temperature for operation

-20…50 °C

Fire resistance

960 °C conforming to IEC 60695-2-1

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.5 cm

Package 1 Width

3.7 cm

Package 1 Length

9.0 cm

Package 1 Weight

79.0 g

Unit Type of Package 2

S02

Number of Units in Package 2

69

Package 2 Height

15.0 cm

Package 2 Width

30.0 cm

Package 2 Length

40.0 cm

Package 2 Weight

5.758 kg

Country of origin

CZ

Warranty (in months)

18

Accessory

Yes

Spare part

No

HS Code

8536.90

• EAN 3389110551945
• SAP 1000037461
• Code 8778601
