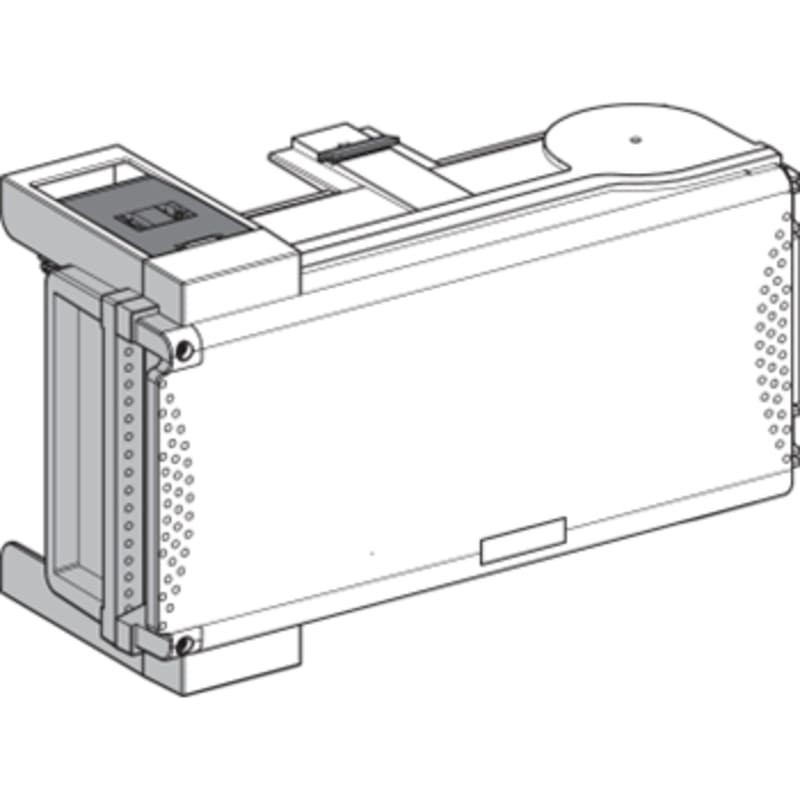

BOX 25A 3L+N Diazed E27
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric KSB25SD4 Box 25A 3L+N Diazed E27.
Technical Specifications
- Manufacturer part number (MPN)
- KSB25SD4
- EAN / GTIN
- 3606480005947
- Sales unit
- pcs
- Package quantity
- 38 pcs
- Rated current
- 25 A
- Range of product
- Canalis
- Range compatibility
- Canalis KT busbar trunking; Canalis KS busbar trunking
- Product or component type
- Tap-off unit
- busbar trunking compatibility
- Canalis KS busbar trunkingplug-in; Canalis KT busbar trunking with KS type plug-in
- [Ie] rated operational current
- 25 A at 35 °C
- protection type
- fuse insulator: Diazed fuse, size E27 conforming to DIN
- Provided equipment
- fuse to be ordered separately
- Mounting mode
- Plug-in with fixed polarity
- Tap-off unit polarity
- 3L+N+PE
- Colour
- White (RAL 9001)
- Device application
- Medium power distribution
- [Ue] rated operational voltage
- 230...690 V depending on protective device
- [Uimp] rated impulse withstand voltage
- 6.8 kV
- [Ui] rated insulation voltage
- 690 V depending on protective device
- Network frequency
- 50/60 Hz
- Electrical connection
- Cable clamp terminal - ISO50 25 mm² flexible; Cable clamp terminal - ISO50 25 mm² rigid
- door/cover opening side
- Right
- Tap-off unit disconnection mode
- By opening the door
- Standards
- IEC 61439-1; IEC 61439-6
- Body material
- Plastic
- Width
- 356 mm
- Depth
- 103 mm
- depth (door open)
- 432.5 mm
- Height
- 167 mm
- Product weight
- 2.4 kg
- Earthing system
- TT; TN-S; IT
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to IEC 62262
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 38
- Country of origin
- IT
- Warranty (in months)
- 18
- RAL-number
- 9001
- With locking
- No
- Protection
- None
- Number of conductors (without earthing)
- 4
- Phase selection
- No
- Number of poles
- 5
- Length
- 356 mm
- Degree of protection (IP)
- IP55
- Branch off type
- Pipe in-lead
- Rated current AC 50 Hz
- 25 A
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480005947
- SAP 1000524131
- Code 8421065
Product Documentation
More from Schneider Electric
Schneider Electric

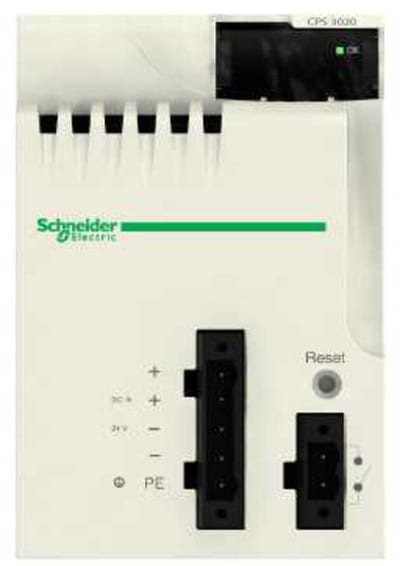

Schneider Electric power supply module X80 - 24..48 V DC - 31.2 W BMXCPS3020
Schneider Electric

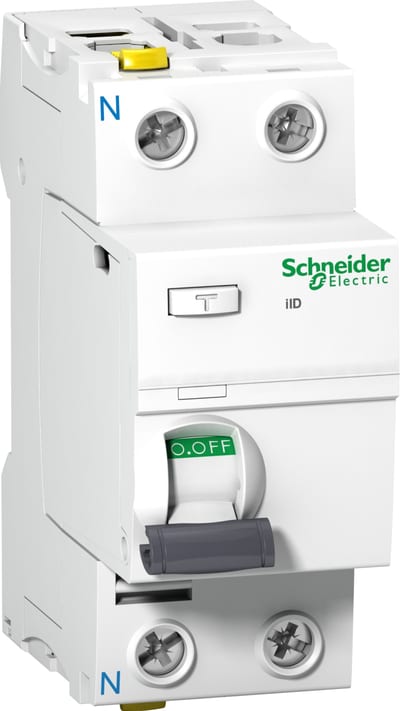

Schneider Electric Residual current circuit breaker (RCCB), ACTI9 iID, 2P, 25A, A-SI type, 30MA, double terminal A9Z31225
Schneider Electric

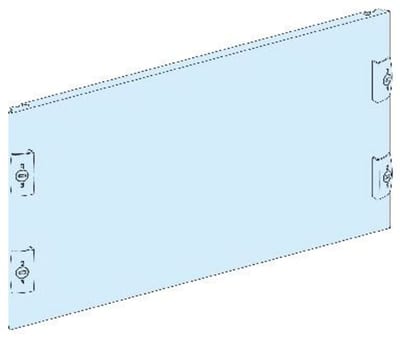

Sealed Front plate 9MODULES PrismaSeT G/P
LVS03807
Schneider Electric

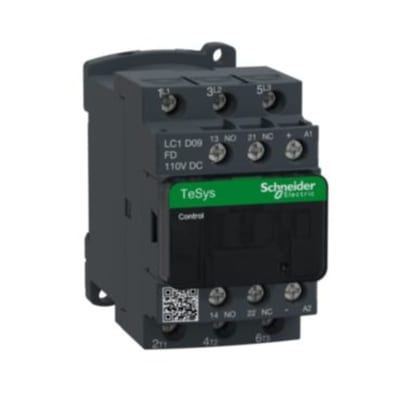

Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 9A, 110V DC coil, screw clamp terminals LC1D09FD
Schneider Electric

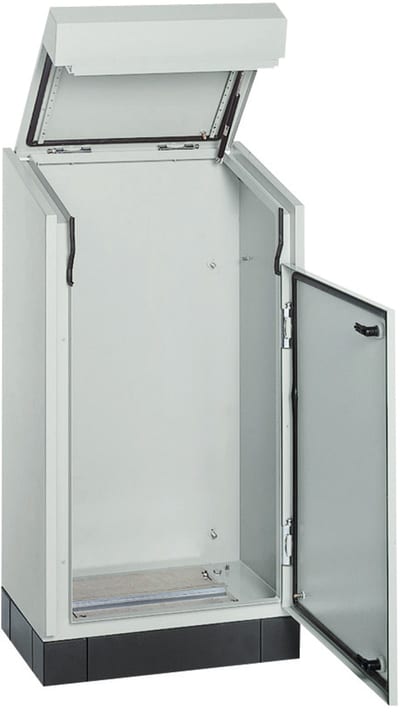

Control desk 10X10X4
NSYSD10
Schneider Electric

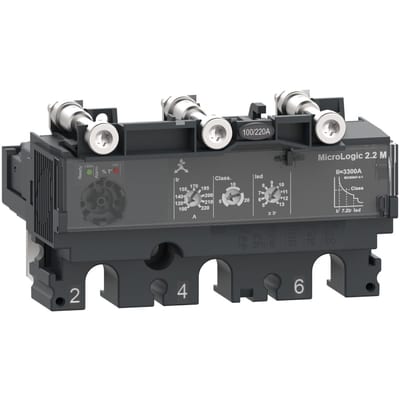

Schneider Electric Trip unit MicroLogic 2.2M, ComPacT NSX250, 3 poles, electronic basic protections, motor protection, 220A rating C2532M220
Schneider Electric

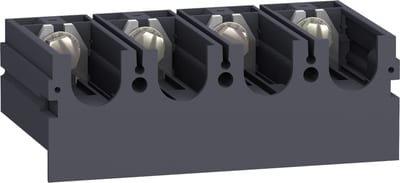

Schneider Electric one piece spreader, 35 mm to 45 mm pitch, ComPact NSX 100/160/250, flat connection, 4 poles LV431061
Schneider Electric

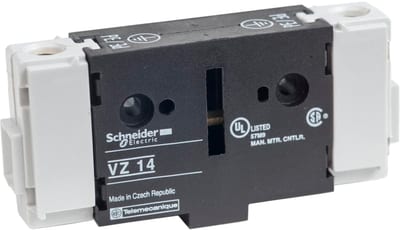

Earth Connection (VZ14)
