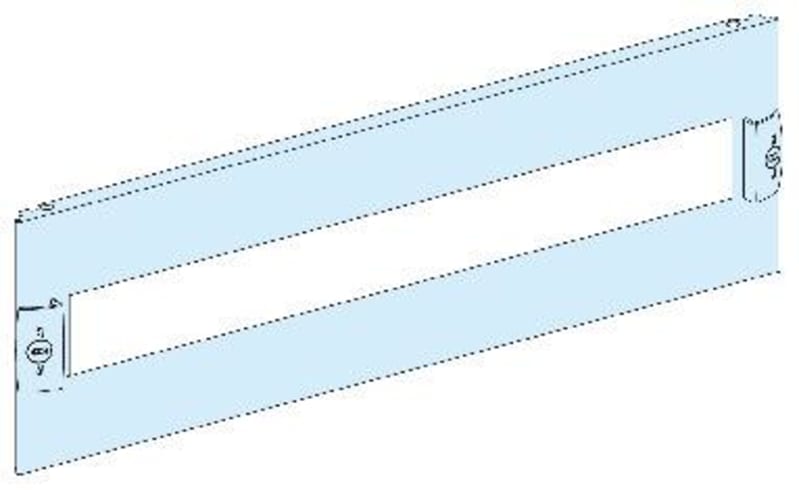

Front plate 2M modular products PrismaSeT G/P
Pricing
Request a quote
We reply within 24 hours
Product Description
Frontplate-2 Modules for Modular products-PrismaSeT G/P-for 600/650mm felt.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03202
- EAN / GTIN
- 3606481866257
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G; PrismaSeT P
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P cubicle; PrismaSeT PrismaSeT Pack 250 enclosure
- Type of front plate
- Modular; Cut-out
- Installed device
- Acti 9: fixed 1/2 or 1 module lamp - horizontal installation; Acti 9: fixed measurement device - horizontal installation; Multi9: fixed measurement device - horizontal installation
- Enclosure/cubicle description
- Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Cubicle - width 650 mm depth 400 mm; Pack enclosure - width 600 mm
- 9 mm pitches
- 48
- Number of 18 mm modules per row
- 24
- Number of vertical modules [50 mm]
- 2
- Standards
- IEC 61439-1; IEC 61439-2
- Product certifications
- ASTA
- Material
- Steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 500 mm
- Height
- 100 mm
- Product weight
- 0.36 kg
- Quantity per set
- Set of 1
- functional unit
- 600 mm PrismaSeT G floor-standing enclosure Acti 9 1/2 or 1 module lamp fixed horizontal direct 2; 600 mm PrismaSeT G wall-mounted enclosure Acti 9 1/2 or 1 module lamp fixed horizontal direct 2; 650 mm 400 mm PrismaSeT P cubicle Acti 9 1/2 or 1 module lamp fixed horizontal direct 2; 600 mm PrismaSeT G floor-standing enclosure Acti 9 measurement device fixed horizontal 6 direct 2; 600 mm PrismaSeT G wall-mounted enclosure Acti 9 measurement device fixed horizontal 6 direct 2; 600 mm PrismaSeT G floor-standing enclosure Multi9 measurement device fixed horizontal 6 direct 2; 600 mm PrismaSeT G wall-mounted enclosure Multi9 measurement device fixed horizontal 6 direct 2; 600 mm Prisma Pack 250 Pack enclosure Acti 9 measurement device fixed horizontal 6 direct 2; 600 mm Prisma Pack 250 Pack enclosure Multi9 measurement device fixed horizontal 6 direct 2
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.700 cm
- Package 1 Width
- 11.500 cm
- Package 1 Length
- 51.500 cm
- Package 1 Weight
- 350.000 g
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 10
- Package 2 Height
- 17.000 cm
- Package 2 Width
- 13.000 cm
- Package 2 Length
- 53.500 cm
- Package 2 Weight
- 3.500 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 180
- Package 3 Height
- 37.000 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 77.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 600 mm
- Number of height units
- 2
- Surface finishing
- Powder coating
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481866257
- SAP 1200546613
- Code 82879638
