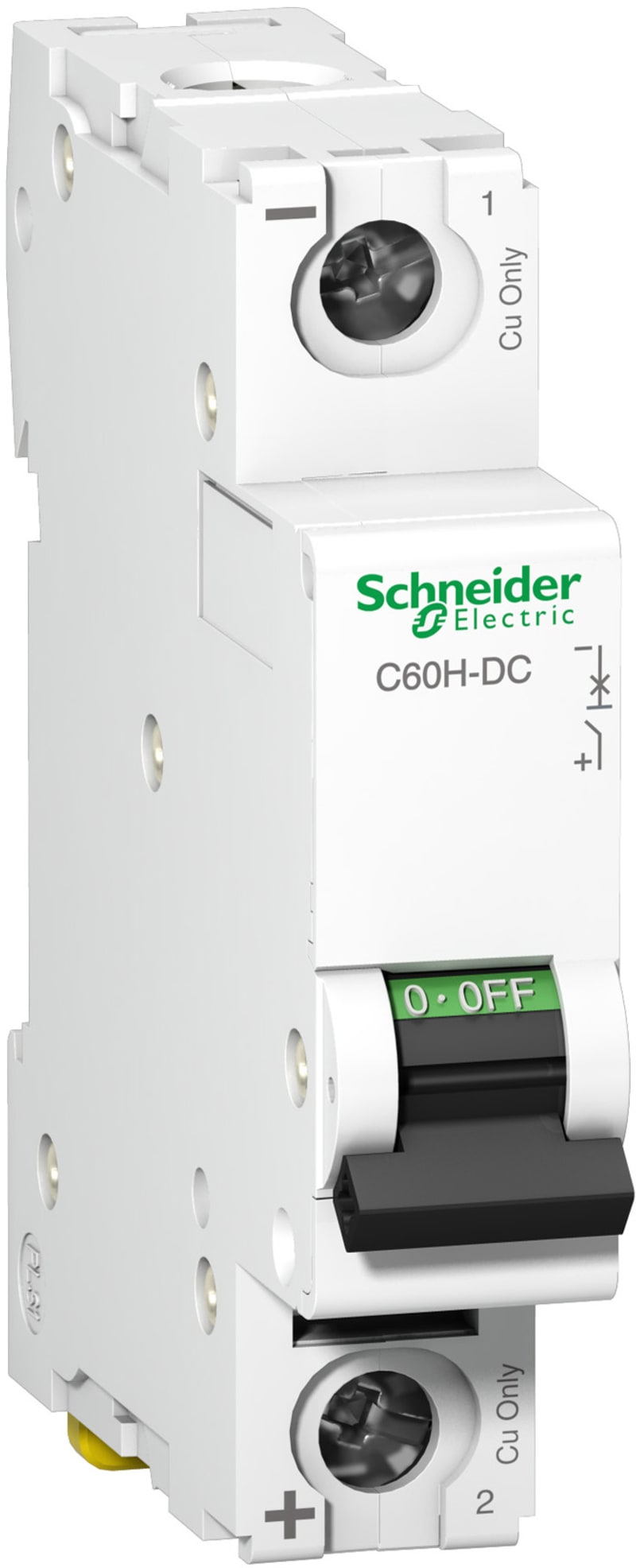

Schneider Electric Miniature circuit breaker (MCB), ACTI9 C60H-DC, 1P, 63A, C curve, 6KA (IEC/EN 60947-2) A9N61519
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9N61519 Miniature circuit breaker C60H-DC 63A 1P/C.
Technical Specifications
- Manufacturer part number (MPN)
- A9N61519
- EAN / GTIN
- 3606480424199
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Rated current
- 63 A
- Number of poles
- 1P
- Range
- Acti9
- Product name
- Acti9 C60H-DC
- Product or component type
- Miniature circuit-breaker
- Device short name
- C60H-DC
- Device application
- Distribution
- Poles description
- 1P
- Number of protected poles
- 1
- [In] rated current
- 63 A at 25 °C
- Network type
- DC
- Trip unit technology
- Thermal-magnetic
- Curve code
- C
- Breaking capacity
- 10 kA Icu at 220 V DC conforming to EN 60947-2; 10 kA Icu at 220 V DC conforming to IEC 60947-2; 6 kA Icu at 250 V DC conforming to EN 60947-2; 6 kA Icu at 250 V DC conforming to IEC 60947-2; 20 kA Icu at 110 V DC conforming to EN 60947-2; 20 kA Icu at 110 V DC conforming to IEC 60947-2
- Utilisation category
- Category A conforming to EN 60947-2; Category A conforming to IEC 60947-2
- Suitability for isolation
- Yes conforming to IEC 60947-2; Yes conforming to EN 60947-2
- Standards
- EN 60947-2; IEC 60947-2
- Network frequency
- 50/60 Hz
- [Ue] rated operational voltage
- 250 V DC
- [Ics] rated service breaking capacity
- 15 kA 75 % conforming to EN 60947-2 - 110 V DC; 15 kA 75 % conforming to IEC 60947-2 - 110 V DC; 4.5 kA 75 % conforming to EN 60947-2 - 250 V DC; 4.5 kA 75 % conforming to IEC 60947-2 - 250 V DC; 7.5 kA 75 % conforming to EN 60947-2 - 220 V DC; 7.5 kA 75 % conforming to IEC 60947-2 - 220 V DC
- [Ui] rated insulation voltage
- 500 V DC conforming to IEC 60947-2; 500 V DC conforming to EN 60947-2
- [Uimp] rated impulse withstand voltage
- 6 kV conforming to EN 60947-2; 6 kV conforming to IEC 60947-2
- Contact position indicator
- Yes
- Control type
- Toggle
- Local signalling
- ON/OFF indication
- mounting mode
- Fixed
- Mounting support
- 35 mm symmetrical DIN rail
- Comb busbar and distribution block compatibility
- Top or bottom: standard
- 9 mm pitches
- 2
- Product weight
- 0.128 kg
- Colour
- White
- Mechanical durability
- 20000 cycles
- Provision for padlocking
- Padlockable
- Locking options description
- In position O
- Tightening torque
- Power circuit: 2.5 N.m top or bottom
- Earth-leakage protection
- Without
- Pollution degree
- 3 conforming to EN 60947-2; 3 conforming to IEC 60947-2
- Overvoltage category
- IV
- Tropicalisation
- 2 conforming to IEC 60068-2
- Operating altitude
- 2000 m
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -40…85 °C
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480424199
- SAP 1000326307
- Code 8355107
Product Documentation
More from Schneider Electric
Schneider Electric

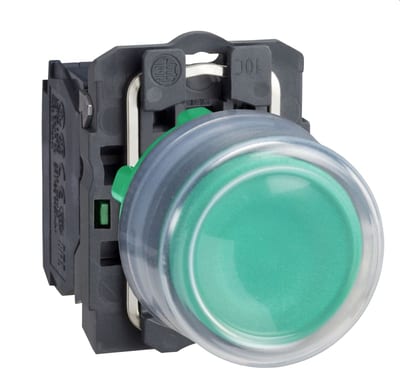

Schneider Electric Push button, Harmony XB5, plastic, projecting, green, 22mm, spring return, booted, unmarked, 1NO XB5AP31
Schneider Electric

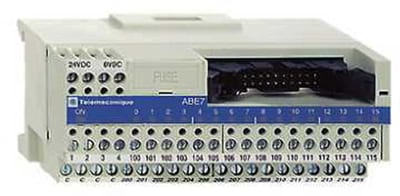

Schneider Electric passive connection sub-base ABE7 - 16 inputs or outputs - Led ABE7H16C21
Schneider Electric

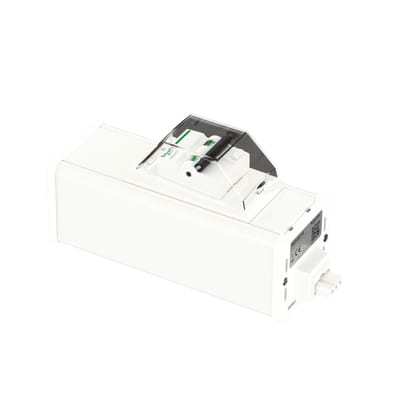

Schneider Electric INS44216 Unica System+ Modular Unit with 2-Pole RCD — 16 A, 250 V, White
Schneider Electric

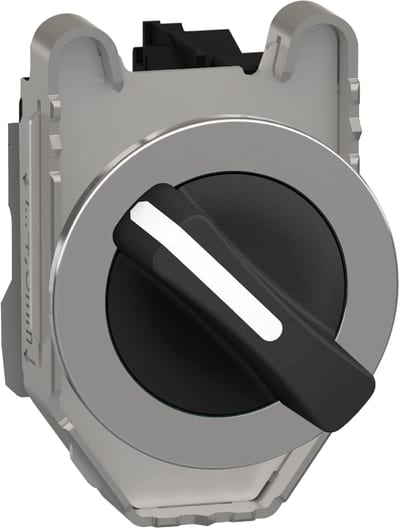

Schneider Electric Selector switch flush mounted, Harmony XB4, metal, black, 30mm, 2 positions, stay put, 1NO XB4FD21
Schneider Electric

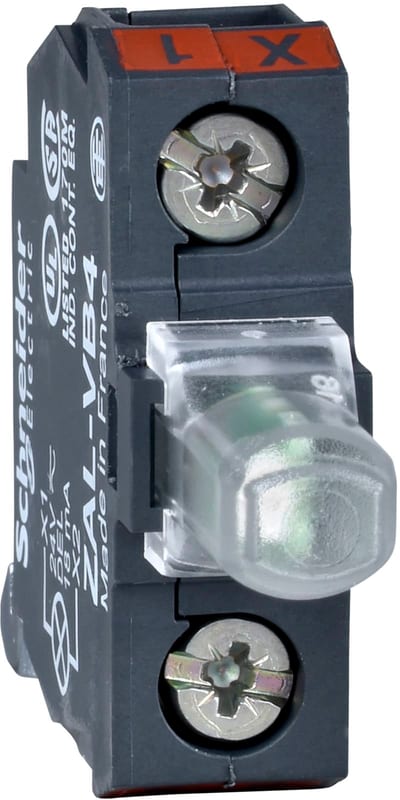

Protected LED, White 120 VAC
ZALVG1
Schneider Electric

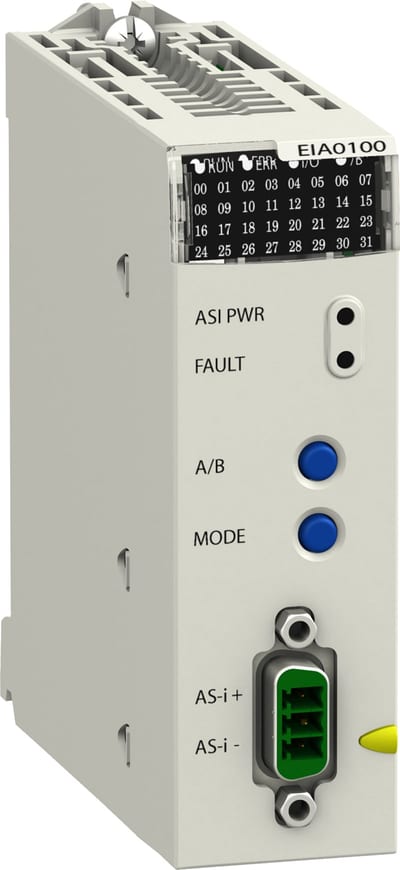

Schneider Electric Master module - upto 62 devices on discrete I/O - upto 31 devices on analog I/O BMXEIA0100
Schneider Electric

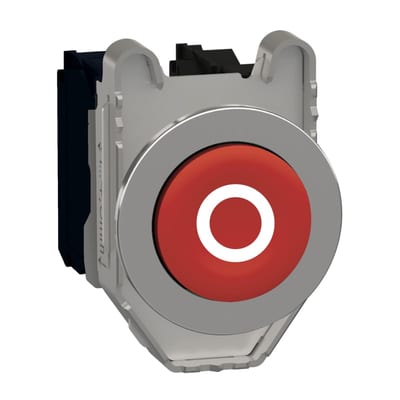

Push-button flush red high 1NO/NC
