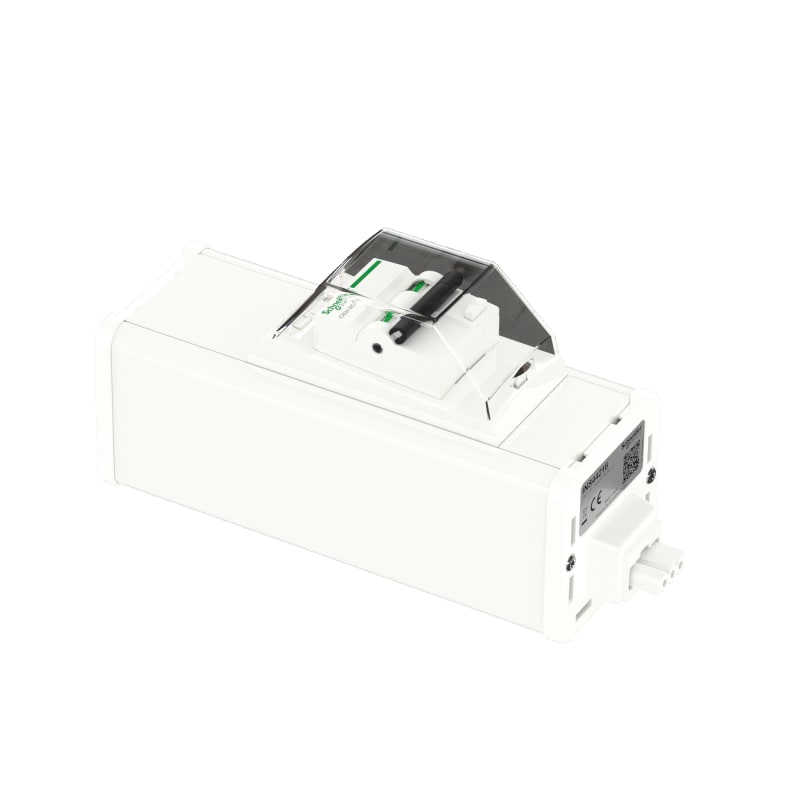

Schneider Electric INS44216 Unica System+ Modular Unit with 2-Pole RCD — 16 A, 250 V, White

A Unica System+ prewired modular power unit fitted with a two-pole residual current breaker, rated 16 A at 250 V. It is a made-up assembly rather than a loose device: the unit arrives wired, in a rectangular aluminium housing, with quick-connect (Mini-Wieland) power connections at each end so several modular units can be chained onto one and the same power circuit. It is designed for pole, post and desk mounting, which is where this style of protected power take-off belongs — office furniture, benches, workstations and similar installations where the earth-fault protection has to travel with the outlet. THIS ITEM IS THE WHITE VERSION. It is otherwise identical to the INS44217, which is the anthracite version; colour is the only difference between the two. Supplied by cBallast on quote-to-invoice terms; lead time and freight are quoted per RFQ against the destination Incoterm.

Manufacturer part number (MPN)

INS44216 EAN / GTIN: 3606489819477 HS code: 8536.90 Sales unit: pcs Package quantity: 10 pcs Degree of gloss: Matt With on/off switch: No Mains filter: No Model: Surface mounting Folding: No Extendable: No Shape: Rectangular material: Aluminium Colour: White Length: 151 mm Width: 64 mm Height: 64 mm Number of USB connections: 2 Overvoltage protection: No With built-in USB power supply: No Nominal voltage: 230 V Degree of protection (IP): IP20 Impact strength: IK05 Anti-bacterial treatment: No Country of origin: Portugal

Device type

Unica System+ prewired modular unit with 2-pole residual current breaker

Rated current

16 A

Rated voltage

250 V

Colour

White

Connection system

Quick connect (Mini-Wieland), chainable at each end

Mounting

Pole, post or desk mounting

Colour alternative

INS44217 — identical unit in anthracite

HS Code

8536.90

• EAN 3606489819477
• SAP 1200478183
• Code 82563064
• INS44217 (anthracite version)
