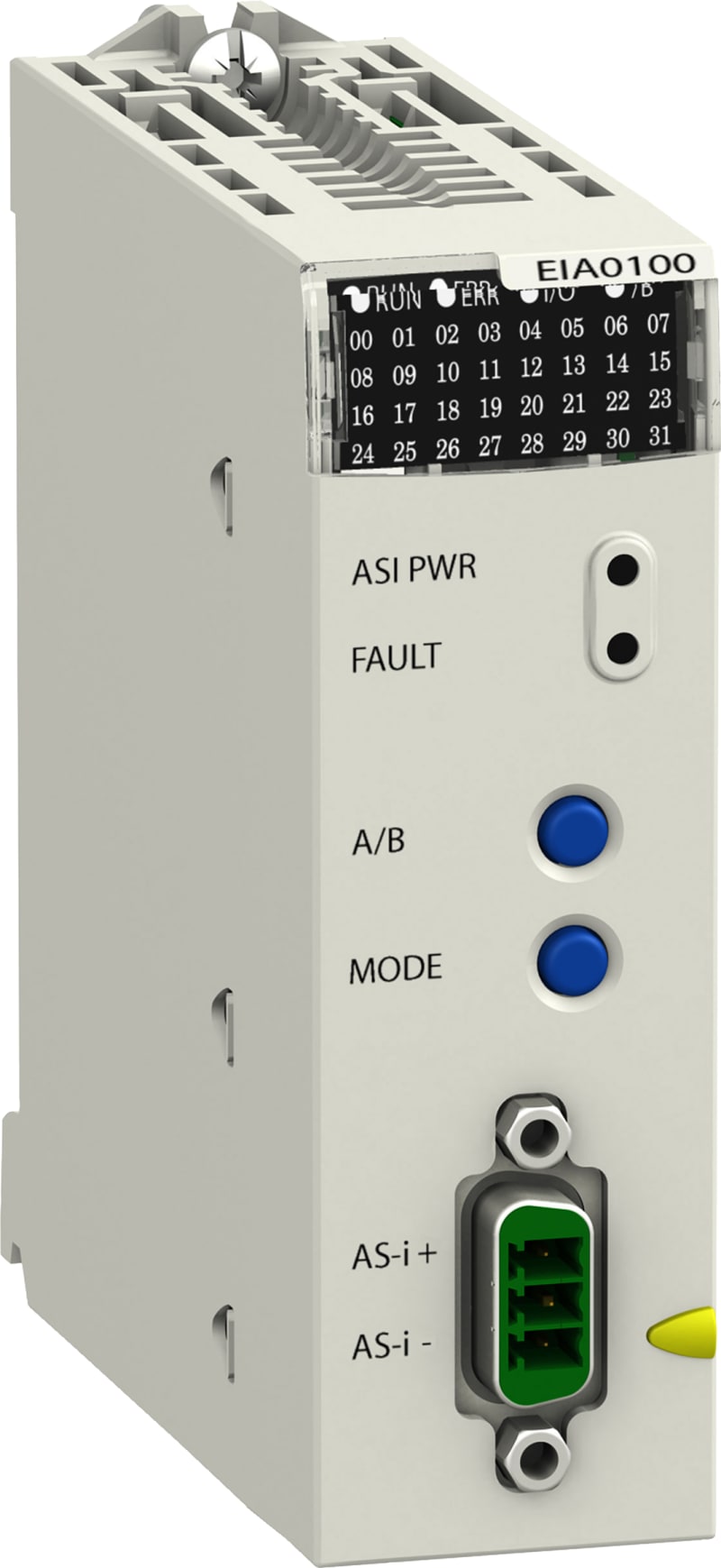

Schneider Electric Master module - upto 62 devices on discrete I/O - upto 31 devices on analog I/O BMXEIA0100

Schneider Electric BMXEIA0100 M340 AS-in V3 master module.

Manufacturer part number (MPN)

BMXEIA0100

EAN / GTIN

3595864038032

Sales unit

pcs

Range of product

Modicon X80

Product or component type

Master module

Actuator sensor interface profile [AS-i]

M4 master profile; S7.3 slave profile; S7.A.7 slave profile; S7.A.A slave profile; S7.A.8 slave profile; S7.A.9 slave profile; S6.0.X slave profile

Addressing

Standard and extended

Cycle time

5 ms for 31; 10 ms for 62

Electrical connection

1 male connector SUB-D, 3 pins

Number of server device(s)

124 server device(s) for discrete inputs and outputs - standard; 124 server device(s) for analog inputs and outputs - standard; 496 server device(s) for discrete inputs and outputs - extended; 124 server device(s) for analog inputs and outputs - extended

Maximum cable distance between devices

100 m; 200 m line extension; 300 m 2 repeaters; 500 m 2 repeaters and the master at the middle

Local signalling

1 LED (green) for module active (RUN); 1 LED (red) for module error (ERR); 1 LED (green) for displays the group of 31 slaves (A/B); 1 LED (red) for I/O module fault (I/O); 32 LEDs for diagnostics of the AS-Interface and each slave; 1 LED (green) for ASI power; 1 LED (red) for fault

Current consumption

160 mA at 3.3 V DC

Module format

Standard

Product weight

0.34 kg

Directives

2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility; 2014/34/EU - ATEX directive

Product certifications

CE; UL; CSA; RCM; EAC; Merchant Navy; ATEX zone 2/22; IECEx zone 2/22

Standards

IEC 61131-2; IEC 61010-2-201; UL 61010-2-201; CSA C22.2 No 61010-2-201; IACS E10; IEC 61000-6-5, interface type 1 and type 2; IEC 61850-3, location G; IEC 60079-0

Environmental characteristic

Hazardous location

Ambient air temperature for operation

0…60 °C

Ambient air temperature for storage

-40…70 °C

IP degree of protection

IP20

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

7.4 cm

Package 1 Width

11.0 cm

Package 1 Length

12.7 cm

Package 1 Weight

210.0 g

Unit Type of Package 2

S02

Number of Units in Package 2

15

Package 2 Height

15.0 cm

Package 2 Width

30.0 cm

Package 2 Length

40.0 cm

Package 2 Weight

3.2 kg

Country of origin

FR

Warranty (in months)

18

Power consumption

1.1 W

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Number of HW-interfaces other

1

With optical interface

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

Yes

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

Yes

Redundancy

No

Type of data transmission

Module rack extension

With potential separation

Yes

SIL according to IEC 61508

None

Suitable for safety functions

No

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

None

Explosion safety category for dust

None

Width

33 mm

Height

100 mm

Depth

160 mm

HS Code

8538.90
