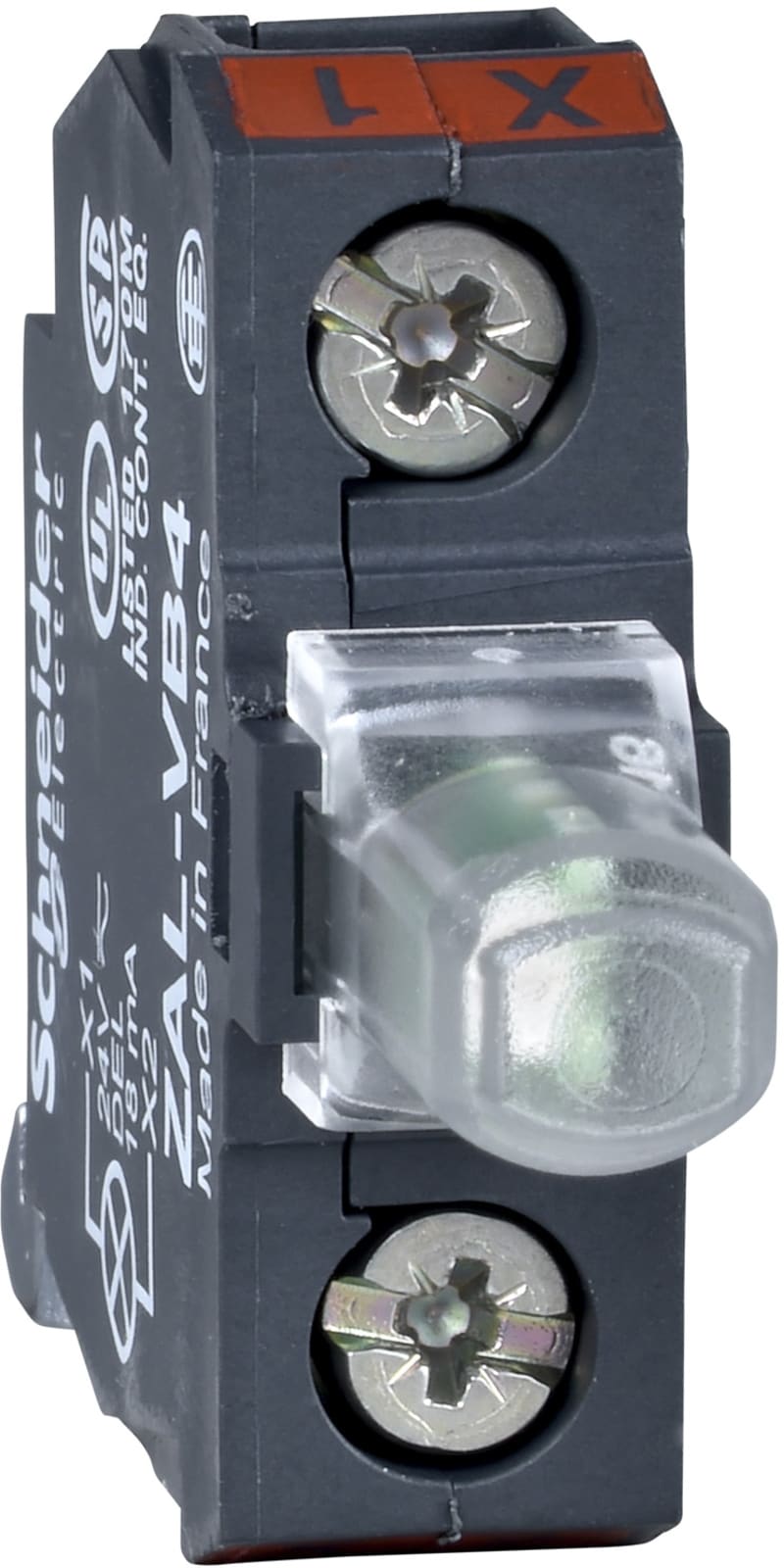

Protected LED, White 120 VAC

Schneider Electric ZALVG1 Protected LED White 120 VAC.

Manufacturer part number (MPN)

ZALVG1

EAN / GTIN

3389110115161

Sales unit

pcs

Package quantity

5 pcs

Voltage

120 V AC

Range of product

Harmony XAL

Product or component type

Light block

Device short name

ZALV

Product destination

For XB5 Ø 22 mm control and signalling units

Mounting of block

Rear mounting

Sale per indivisible quantity

5

Light source colour

White

[Us] rated supply voltage

48...120 V AC

Assembly style

For customer assembly

Product weight

0.015 kg

Connections - terminals

Screw clamp terminals, = 1 x 0.22 mm² without cable end conforming to IEC 60947-1

Tightening torque

0.8…1.2 N.m conforming to IEC 60947-1

Shape of screw head

Cross compatible with Philips no 1 screwdriver; Cross compatible with pozidriv No 1 screwdriver; Slotted compatible with flat Ø 4 mm screwdriver; Slotted compatible with flat Ø 5.5 mm screwdriver

[Ui] rated insulation voltage

250 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1

Signalling type

Steady

Light source

Universal LED

Supply voltage limits

40…132 V AC

Current consumption

19 mA

Service life

100000 h at rated voltage and 25 °C

Surge withstand

1 kV conforming to IEC 61000-5-1

Light block supply

Direct

Bulb base

Integral LED

Electrical composition code

MR1; PR1

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

IP degree of protection

IP20 conforming to IEC 60529

Standards

IEC 60947-5-5; UL 508; CSA C22.2 No 14; IEC 60947-5-1; IEC 60947-5-4; IEC 60947-1; JIS C8201-5-1; JIS C8201-1

Product certifications

UL listed; CSA

Vibration resistance

5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Resistance to fast transients

2 kV conforming to IEC 61000-4-4

Resistance to electromagnetic fields

10 V/m conforming to IEC 61000-4-3

Resistance to electrostatic discharge

6 kV on contact (on metal parts) conforming to IEC 61000-4-2; 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2

Electromagnetic emission

Class B conforming to IEC 55011

Number of Units in Package 1

1

Number of Units in Package 2

5

Number of Units in Package 3

400

Country of origin

FR

Warranty (in months)

18

Transformer integrated

No

With integrated voltage decreasing resistor

No

With integrated diode

Yes

Colour light source

White

Lamp type

LED

Type of fastening

Floor fastening

With light source

Yes

Connection type auxiliary circuit

Screw connection

Rated voltage Ue at AC 50 Hz

48–120 V

Rated voltage Ue at AC 60 Hz

48–120 V

Voltage type for actuating

AC/DC

HS Code

8536.61
