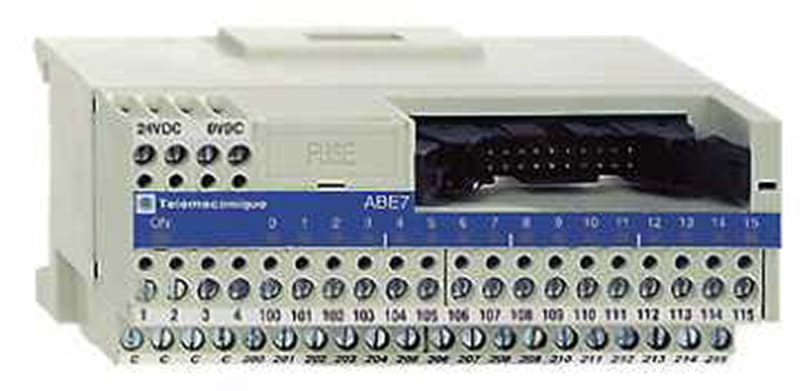

Schneider Electric passive connection sub-base ABE7 - 16 inputs or outputs - Led ABE7H16C21

Schneider Electric ABE7H16C21 Telefast passiv in-/output modules 16 in/o, 2 term, 2-row, led, mini.

Manufacturer part number (MPN)

ABE7H16C21

EAN / GTIN

3389110251166

Sales unit

pcs

Package quantity

32 pcs

Range of product

Modicon ABE7

Product or component type

Passive discrete I/O sub-base

Sub-base type

Miniature sub-base

[Us] rated supply voltage

19...30 V conforming to IEC 61131-2

Number of channels

16

Number of terminal per channel

2

Connections - terminals

Screw type terminals, 1 x 0.09...1 x 1.5 mm², 0.09…1.5 mm² (28 AWG...16 AWG) flexible with cable end; Screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.14…2.5 mm² (26 AWG...12 AWG) solid; Screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.14…2.5 mm² (26 AWG...14 AWG) flexible without cable end; Screw type terminals, 2 x 0.09...2 x 0.75 mm², 0.09…0.75 mm² (28 AWG...20 AWG) flexible with cable end; Screw type terminals, 2 x 0.2...2 x 2.5 mm², 0.2…2.5 mm² (24 AWG...14 AWG) solid

supply voltage type

DC

Number of horizontal rows

2

Status LED

1 LED per channel (green) channel status; 1 LED (green) power ON

Polarity distribution

0 V or 24 V

Short-circuit protection

2 A internal fuse, 5 x 20 mm, fast blow (PLC end)

Fixing mode

By clips (35 mm symmetrical DIN rail); By screws (solid plate with fixing kit)

Maximum supply current

1.8 A

Current per channel

0.5 A

Maximum current per output common

1.8 A

Voltage drop on power supply fuse

0.3 V

[Ui] rated insulation voltage

2000 V

Installation category

II conforming to IEC 60664-1

Tightening torque

0.6 N.m with flat Ø 3.5 mm screwdriver

Product weight

0.205 kg

Product certifications

GL; DNV; CSA; UL; EAC

IP degree of protection

IP2X conforming to IEC 60529

Resistance to incandescent wire

750 °C, extinction time <30 s conforming to IEC 60695-2-11

Shock resistance

15 gn for 11 ms conforming to IEC 60068-2-27

Vibration resistance

2 gn (f= 10…150 Hz) conforming to IEC 60068-2-6

Resistance to electrostatic discharge

4 kV (contact) level 3 conforming to IEC 61000-4-2; 8 kV (air) level 3 conforming to IEC 61000-4-2

Resistance to radiated fields

10 V/m (26000000…1000000000 Hz) conforming to IEC 61000-4-3 level 3

Resistance to fast transients

2 kV level 3 conforming to IEC 61000-4-4

Ambient air temperature for operation

-5…60 °C conforming to IEC 61131-2

Ambient air temperature for storage

-40…80 °C conforming to IEC 61131-2

Pollution degree

2 conforming to IEC 60664-1

Number of Units in Package 1

1

Number of Units in Package 2

32

Country of origin

LV

Warranty (in months)

18

Housing material

Plastic

Operating temperature

20–80 °C

With potential separation

No

With LED indication

No

Connection for NPN-sensors

No

Cable length configurable

No

Fix cable version suitable for cable guide chain

No

HS Code

8536.90
