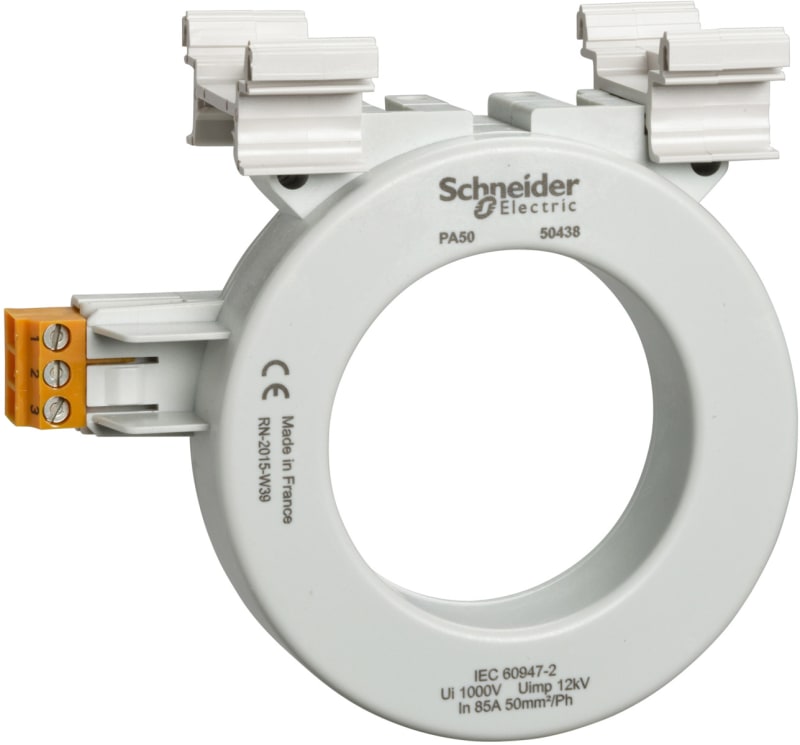

Schneider Electric 50438 closed toroid A type, for Vigirex and Vigilhom, PA50, inner diameter 50 mm, rated current 85 A

Schneider Electric 50438 closed toroid A type, for Vigirex and Vigilhom, PA50, inner diameter 50 mm, rated current 85 A is listed under Electrical Components / Current Transformers. Sales unit: pcs; Package quantity: 70 pcs; Range: VigiPacT; Device short name: PA50; Product or component type: Earth leakage current sensor; Device application: Equipment monitoring and control.

Manufacturer part number (MPN)

50438

EAN / GTIN

3303430504382

Sales unit

pcs

Package quantity

70 pcs

Range

VigiPacT

Device short name

PA50

Product or component type

Earth leakage current sensor

Device application

Equipment monitoring and control

Range compatibility

VigiPacT RH10M residual current protection relay; VigiPacT RH10P residual current protection relay; VigiPacT RH21M residual current protection relay; VigiPacT RH21P residual current protection relay; VigiPacT RH68M residual current protection relay; VigiPacT RH86M residual current protection relay; VigiPacT RH86P residual current protection relay; VigiPacT RH99M residual current protection relay; VigiPacT RH99P residual current protection relay; VigiPacT RH197M residual current protection relay; VigiPacT RH197P residual current protection relay; VigiPacT RHU residual current protection relay; VigiPacT RHUs residual current protection relay; VigiPacT RMH residual current protection relay

current sensor type

A type closed toroid

[Ie] rated operational current

85 A

Transformer ratio

1/1000

Network frequency

50/60 Hz; 400 Hz

[Icw] rated short-time withstand current

85 kA for 0.5 s

Residual short-circuit withstand current

85 kA / 0.5 s conforming to IEC 60947-2

[Ui] rated insulation voltage

1000 V

Overvoltage category

IV

[Uimp] rated impulse withstand voltage

12 kV

Mounting mode

Fixed (plain backplate); Fixed (profiled sheet metal); Fixed (slotted backplate); Clip-on (DIN rail); Clip-on (Vigirex relay)

Calorific value

1.42 MJ

Connections - terminals

Screw connection 0.22…2.5 mm²

Diameter

50.4 mm inner:

Product weight

0.2 kg

Height

100 mm

Width

88 mm

Depth

29 mm

IP degree of protection

IP30; Connectors: IP20

Environmental characteristic

Exposure to damp heat in service: category C2: 48 hours conforming to IEC 60068-2-56; Exposure to damp heat not in service (25...55 °C, PURE WHITE 95 %) : 28 cycles conforming to IEC 60068-2-30; Salt mist: Kb/2 conforming to IEC 60068-2-52

Pollution degree

Level 3 conforming to IEC 60664-1

Ambient air temperature for operation

-35…70 °C

Ambient air temperature for storage

-55…85 °C

Standards

IEC 60947-2

Product certifications

CE

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.000 cm

Package 1 Width

9.000 cm

Package 1 Length

15.000 cm

Package 1 Weight

180.000 g

Unit Type of Package 2

S04

Number of Units in Package 2

100

Package 2 Height

30.000 cm

Package 2 Width

40.000 cm

Package 2 Length

60.000 cm

Package 2 Weight

18.766 kg

Country of origin

FR

Warranty (in months)

18

Model

Summation current transformer

Rated primary current

85 A

Rated secondary current

0.085 A

Accuracy class

1

Calibrated

Yes

With contact protection

Yes

Opening diameter

50.4 mm

Snap mounting

Yes

With copper rail

No

Number of primary inputs

4

Secondary connection

Plug-in connection

HS Code

8504.31
