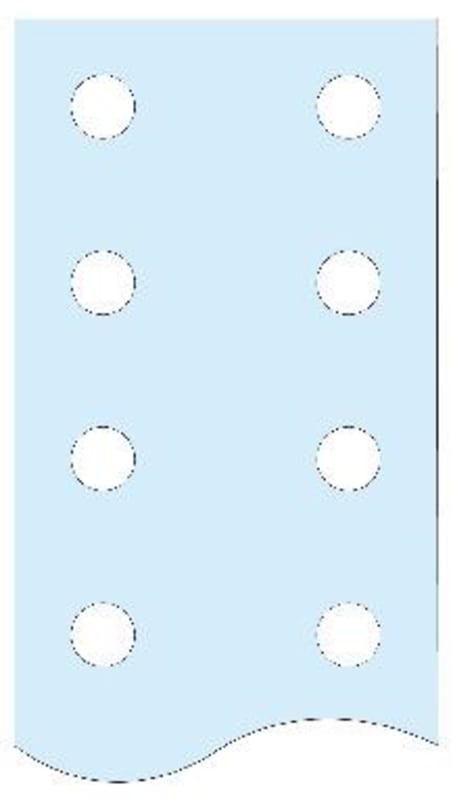

Perforated Earth Busbar LinergyTB 50X5MM L1675
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04515 — PE V.BAR W.HOLES 50X5 L1675 LINERGY TB.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04515
- EAN / GTIN
- 3606481870414
- Sales unit
- pcs
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- PE conductor flat bar
- Product name
- Linergy TB
- Range compatibility
- PrismaSeT PrismaSeT P enclosure
- Quantity per set
- Set of 1
- Installation direction
- Horizontal; Vertical
- installation description
- Cubicle
- [Ie] rated operational current
- 600 A
- [Icw] rated short-time withstand current
- 40 kA (1 s) for 3 supports (vertical position); 40 kA (1 s) (horizontal position)
- Busbar cross section
- 50 x 5 mm
- Length
- 1675 mm
- Width
- 50 mm
- Depth
- 5 mm
- Product weight
- 3.64 kg
- Colour
- Natural
- Type of busbar connection
- Ø 10 mm drilled hole
- Standards
- IEC 61439-1; IEC 61439-2
- Product certifications
- ASTA
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.500 cm
- Package 1 Width
- 12.000 cm
- Package 1 Length
- 178.000 cm
- Package 1 Weight
- 3.550 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 100
- Package 2 Height
- 28.000 cm
- Package 2 Width
- 120.000 cm
- Package 2 Length
- 202.000 cm
- Package 2 Weight
- 376.000 kg
- Country of origin
- IT
- Warranty (in months)
- 18
- Model
- Flat
- Height
- 5 mm
- Flexible
- No
- Surface protection
- Untreated
- Rated current In
- 600 A
Standards & Compliance
- HS Code
- 7407.29
Cross References
- EAN 3606481870414
- SAP 1200546962
- Code 82880369
Product Documentation
More from Schneider Electric
Schneider Electric

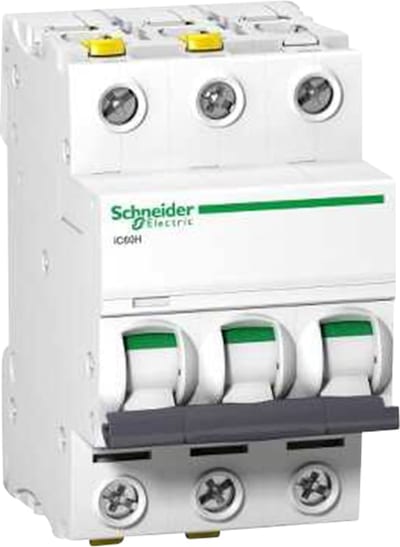

Schneider Electric A9F08320 ACTI9 IC60H Miniature Circuit Breaker 3P 20 A, Curve D
Schneider Electric

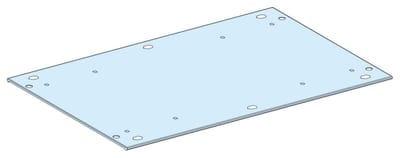

Top plate IP30 PrismaSeT P B800 D600
LVS08638
Schneider Electric

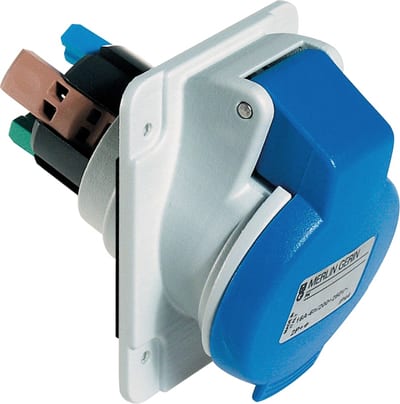

Schneider Electric PratiKa socket - fast - angled - 16A - 2P + E - 200...250 V AC - panel PKY16F423
Schneider Electric
Schneider Electric NSYMM86 Plain mounting plate H800XW600MM made of galvanised sheet steel
Schneider Electric

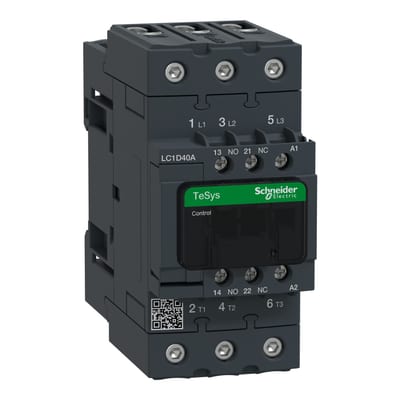

Schneider TeSys D Contactor LC1D40A 40A 3P 24V DC Coil
LC1D40ABBE
Schneider Electric

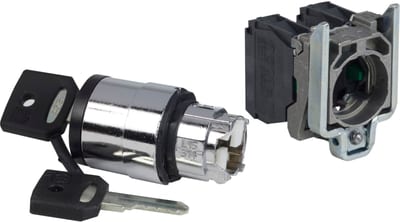

Schneider Electric XB4BG03 black selector switch Ø22 3-Position stay put 2NO 600V
Schneider Electric

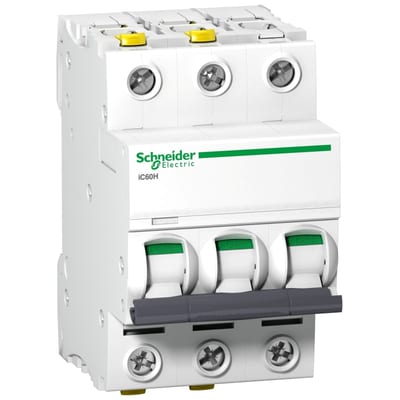

Schneider Electric A9F07313 ACTI9 IC60H Miniature Circuit Breaker 3P 13 A, Curve C
Schneider Electric

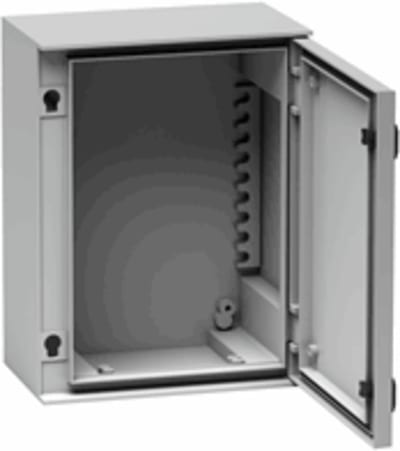

Schneider Electric wall-mounting enclosure ABS/PC monobloc IP66 H310XW215XD160MM NSYPLM32G
