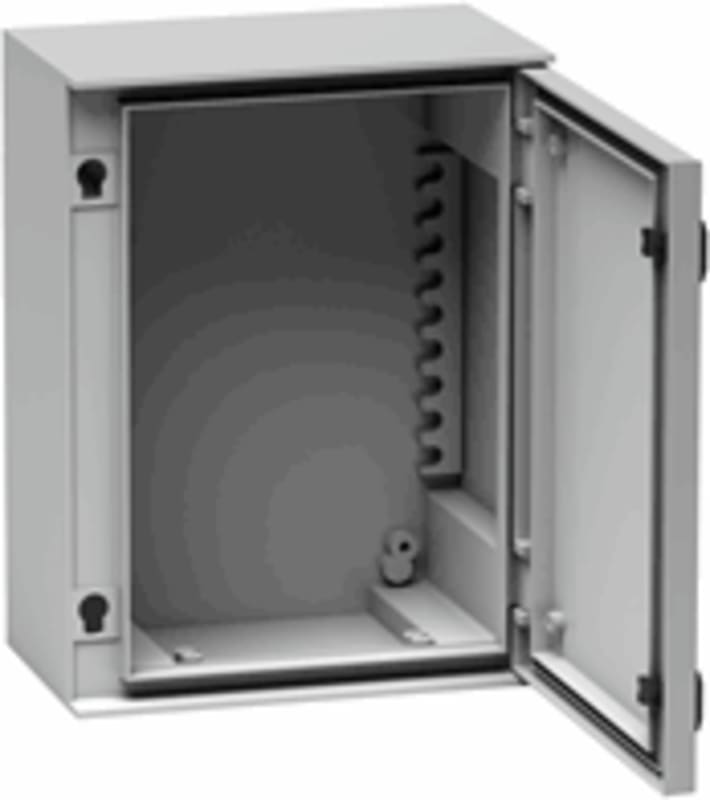

Schneider Electric wall-mounting enclosure ABS/PC monobloc IP66 H310XW215XD160MM NSYPLM32G
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYPLM32G THALASSA 7035 310x215x160.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPLM32G
- EAN / GTIN
- 3606480776472
- Sales unit
- pcs
- Package quantity
- 140 pcs
- Dimensions
- 310×215×160
- Range
- PanelSeT
- Device short name
- PLM
- Enclosure type
- Multi-purpose
- Category
- Compact enclosure
- Nominal height
- 310 mm
- Nominal width
- 215 mm
- Nominal depth
- 160 mm
- Enclosure mounting
- Wall mounted
- Device composition
- 1 body; 1 door; 1 lock
- Door type
- Plain
- Lock type
- 3 mm double-bar lock
- Number of locks
- 1
- Mounting plate description
- Without mounting plate
- Accessibility for operation
- Front
- Removable parts
- Door by hinges
- Material
- ABS + PC
- Colour
- Grey (RAL 7035)
- Standards
- NEMA classification 4X; IEC 62208; NEMA classification 13
- Electrical insulation class
- Class II
- IP degree of protection
- IP66 conforming to IEC 60529
- IK degree of protection
- IK10 conforming to IEC 62262
- Fire resistance
- 960 °C conforming to IEC 62208
- Ambient air temperature for operation
- -40…80 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 70
- Country of origin
- HU
- Warranty (in months)
- 18
- Width
- 215 mm
- Height
- 310 mm
- Depth
- 160 mm
- RAL-number
- 7035
- Number of doors
- 1
- Impact strength
- IK10
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- Yes
- Connectable
- No
- Wall fastening possible
- Yes
- Surface finishing
- Untreated
- Max. permitted load of the enclosure according to IEC 62208
- 113 N
- Max. permitted load of the door(s) according to IEC 62208
- 18 N
Standards & Compliance
- HS Code
- 9403.70
Cross References
- EAN 3606480776472
- SAP 1000752618
- Code 8489597
Product Documentation
More from Schneider Electric
Schneider Electric

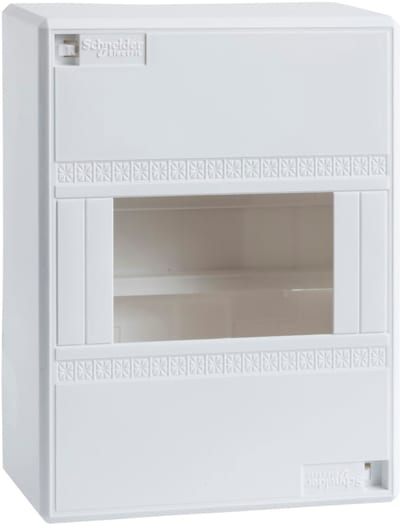

MINI Opale Enclosure 1-ROW 4M
13394
Schneider Electric

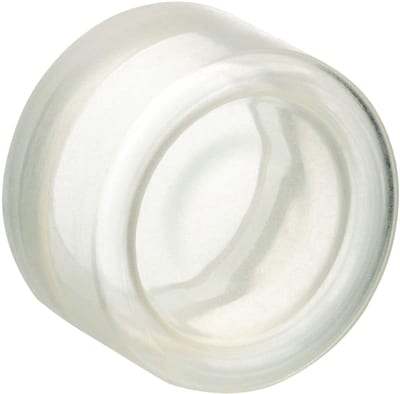

Schneider Electric ZBP0 Transparent boot for circular projecting push button Ø22
Schneider Electric

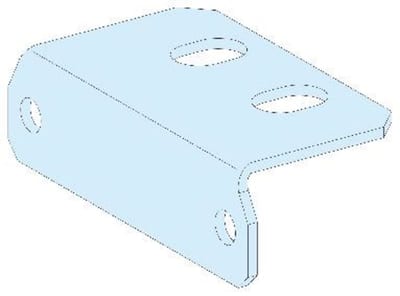

MOUNTING BRACKETS-2 pcs-horizontal PE rail
LVS04667
Schneider Electric

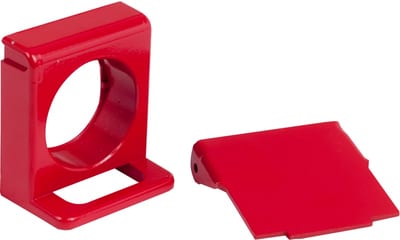

Schneider Electric ZB4BZ64 red padlockable flap for Ø22 flush pushbutton
Schneider Electric

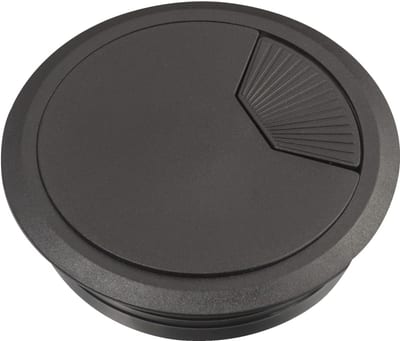

Schneider Electric Grommet, Unica System+, diameter 80mm, black INS61212
Schneider Electric

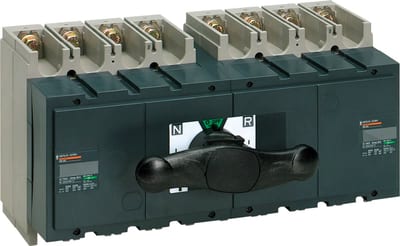

Changeover Switch, INS250 4P
