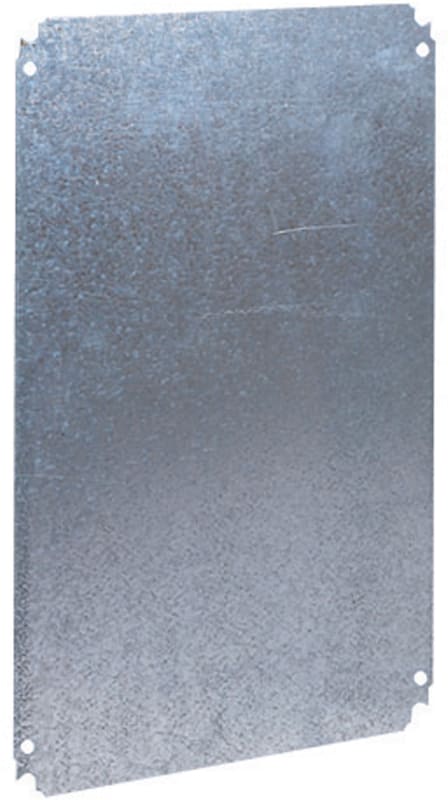

Schneider Electric NSYMM86 Plain mounting plate H800XW600MM made of galvanised sheet steel
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric NSYMM86 Plain mounting plate H800XW600MM made of galvanised sheet steel is listed under Enclosures / Mounting Plates. Sales unit: pcs; Dimensions: 800×600 mm; Range: PanelSeT; Product or component type: Mounting plate; Device application: Multi-purpose; Enclosure nominal dimensions: - H: 800 mm W: 600 mm ; H: 600 mm W: 800 mm.
Technical Specifications
- Manufacturer part number (MPN)
- NSYMM86
- EAN / GTIN
- 3606480183430
- Sales unit
- pcs
- Dimensions
- 800×600 mm
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Mounting plate
- Device application
- Multi-purpose
- Enclosure nominal dimensions
- - H: 800 mm W: 600 mm ; H: 600 mm W: 800 mm
- Mounting location
- Step slide; Direct fixing on backstuds
- Mounting plate description
- Plain
- Range compatibility
- PanelSeT S3D; PanelSeT CRN; PanelSeT PLM
- Quantity per set
- Set of 1
- Material
- Galvanised steel
- Fixing mode
- Screwed on backstuds - screw type M8; By fixing element
- Permanent permissible load
- 135 kg
- Height
- 750 mm
- Width
- 550 mm
- thickness
- 2.5 mm
- Product weight
- 8.07 kg
- Variant particularity
- With enclosures H800 x W1200
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 0.500 cm
- Package 1 Width
- 55.000 cm
- Package 1 Length
- 76.000 cm
- Package 1 Weight
- 8.000 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 60
- Package 2 Height
- 34.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 515.000 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Galvanised
Standards & Compliance
- HS Code
- 8302.42
Cross References
- EAN 3606480183430
- SAP 1000094784
- Code 8876795
Product Documentation
