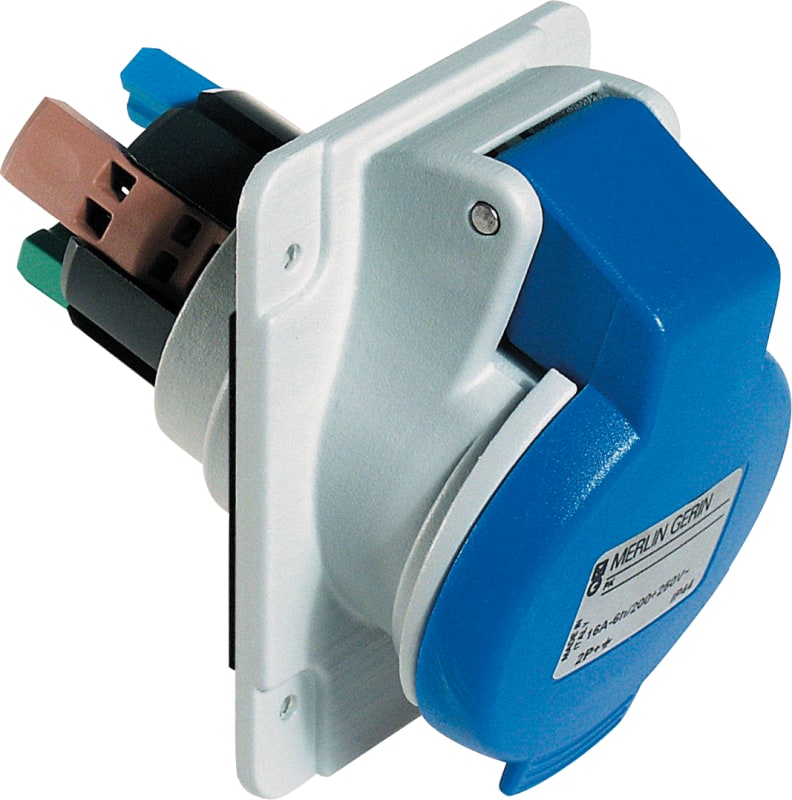

Schneider Electric PratiKa socket - fast - angled - 16A - 2P + E - 200...250 V AC - panel PKY16F423

Schneider Electric PKY16F423 Innf.outlet angled 16A 2P+J 230V.

Manufacturer part number (MPN)

PKY16F423

EAN / GTIN

3303432010867

Sales unit

pcs

Package quantity

10 pcs

Voltage

230 V

Rated current

16 A

Range

Mureva

Product or component type

Socket

Device short name

Mureva socket

Plug, socket category

Low voltage

Poles description

2P + E

Network type

AC

Outlet standard

Industrial

mounting mode

Panel-mounted

Plug, socket, control station shape

Angled

[In] rated current

16 A

[Ue] rated operational voltage

200...250 V

Network frequency

50/60 Hz

Ground lug clockwise position

6 h

Plug, socket material

Housing: self-extinguishing engineering polymer

Contacts material

Sleeves: brass

Connections - terminals

Fast connection

Cable cross section

1…2.5 mm²

Product weight

0.148 kg

Base dimension

65 x 85 mm

Height

85 mm

Width

65 mm

Depth

103 mm

Colour

Grey (RAL 7035)

Voltage colour

Blue

Standards

IEC 60309-2; IEC 60309-1

IP degree of protection

IP44 conforming to IEC 60529

IK degree of protection

IK08 conforming to EN 62262

Fire resistance

850 °C conforming to IEC 60695-2-1

Relative humidity

50 % at 40 °C; 70 % at 30 °C; 90 % at 20 °C

Ambient air temperature for operation

35 °C ( 86400 s )

Country of origin

IT

Warranty (in months)

18

RAL-number

7035

Cable entry

None

Number of poles

3

Material

Plastic

IEC-amperage

16 A

Connection system

Screwless terminal

Insert direction

Angled

Degree of protection (IP)

IP44

Military model

No

Clock hour position

6 h

Identification colour

Blue

Voltage according to EN 60309-2

230 V (50+60 Hz) blue

Drill hole distance vertical

60 mm

Drill hole distance horizontal

52 mm

Flange size vertical

85 mm

Flange size horizontal

65 mm

HS Code

8536.69

• EAN 3303432010867
• SAP 1000419964
• Code 835021
