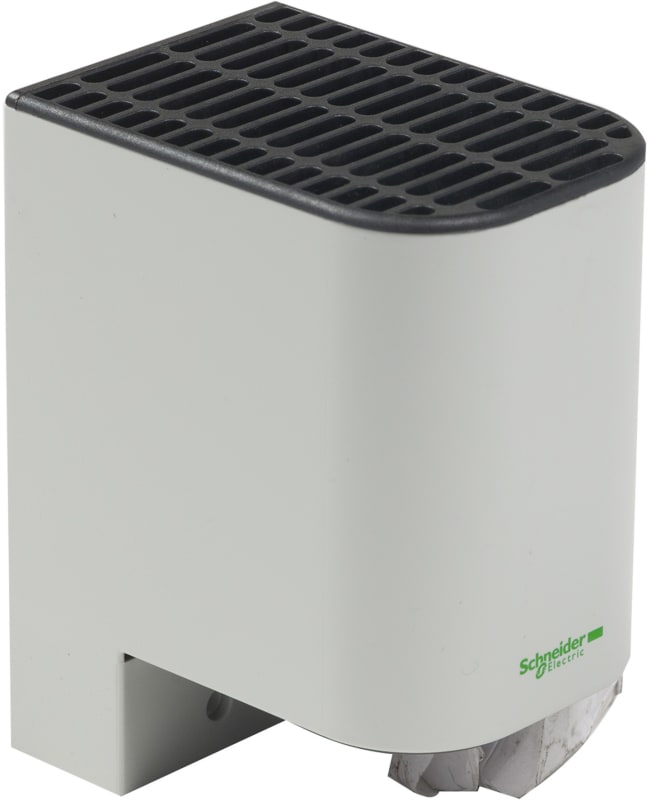

Schneider Electric ClimaSys PTC heating resistance 50W,110-250V insulate NSYCR50WU2C
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYCR50WU2C Heating element 55W 110-250V AC, ClimaSys.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCR50WU2C
- EAN / GTIN
- 3606480152290
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Voltage
- 110-250 V
- Range
- ClimaSys
- Product name
- ClimaSys CR
- Product or component type
- Resistance heater
- Power range
- 50 W
- Input voltage
- 120...240 V AC 50/60 Hz
- Electrical connection
- 4 screw terminals 2.5 mm²
- Operating position
- Vertical
- Ambient air temperature for operation
- -40…70 °C
- IP degree of protection
- IP20
- Electrical insulation class
- Class II
- Product certifications
- UL; VDE
- Material
- Body: extruded aluminium; Cover: plastic
- Height
- External: 110 mm
- Width
- External: 60 mm
- Depth
- External : 90 mm
- Condition of use
- Electrical protection is needed; Air sealed enclosure; Heaters must be installed with a thermal controller
- fixing mode
- By clips
- Mounting support
- 35 mm DIN rail
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 50
- Number of Units in Package 3
- 500
- Country of origin
- DE
- Warranty (in months)
- 18
- Voltage type
- AC
- With room temperature controller
- No
- With fan
- No
- Degree of protection (IP)
- IP20
- Rated power
- 55 W
- Operating voltage AC 50 Hz
- 110–250 V
- Operating voltage AC 60 Hz
- 110–250 V
- Continuous heating power at 10 °C
- 55 W
Standards & Compliance
- HS Code
- 8516.29
Cross References
- EAN 3606480152290
- SAP 1000089020
- Code 8837997
Product Documentation
More from Schneider Electric
Schneider Electric
CYB-BK3 Data cover PV.SNEPP
5970040
Schneider Electric
Perforated Earth Busbar LinergyTB 50X5MM L1675
LVS04515
Schneider Electric
Schneider Electric A9F08320 ACTI9 IC60H Miniature Circuit Breaker 3P 20 A, Curve D
Schneider Electric
Top plate IP30 PrismaSeT P B800 D600
LVS08638
Schneider Electric
Schneider Electric PratiKa socket - fast - angled - 16A - 2P + E - 200...250 V AC - panel PKY16F423
Schneider Electric
Schneider Electric NSYMM86 Plain mounting plate H800XW600MM made of galvanised sheet steel
Schneider Electric
Schneider TeSys D Contactor LC1D40A 40A 3P 24V DC Coil
LC1D40ABBE
Schneider Electric
Schneider Electric XB4BG03 black selector switch Ø22 3-Position stay put 2NO 600V
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYCR50WU2C?
- NSYCR50WU2C can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYCR50WU2C.
- What is the HS code for NSYCR50WU2C?
- The customs tariff (HS) code for NSYCR50WU2C is 8516.29.
- Who manufactures NSYCR50WU2C?
- NSYCR50WU2C is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for NSYCR50WU2C?
- Yes — the NSYCR50WU2C datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYCR50WU2C?
- The minimum order quantity is 1.
- Is NSYCR50WU2C available?
- Yes — NSYCR50WU2C is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
