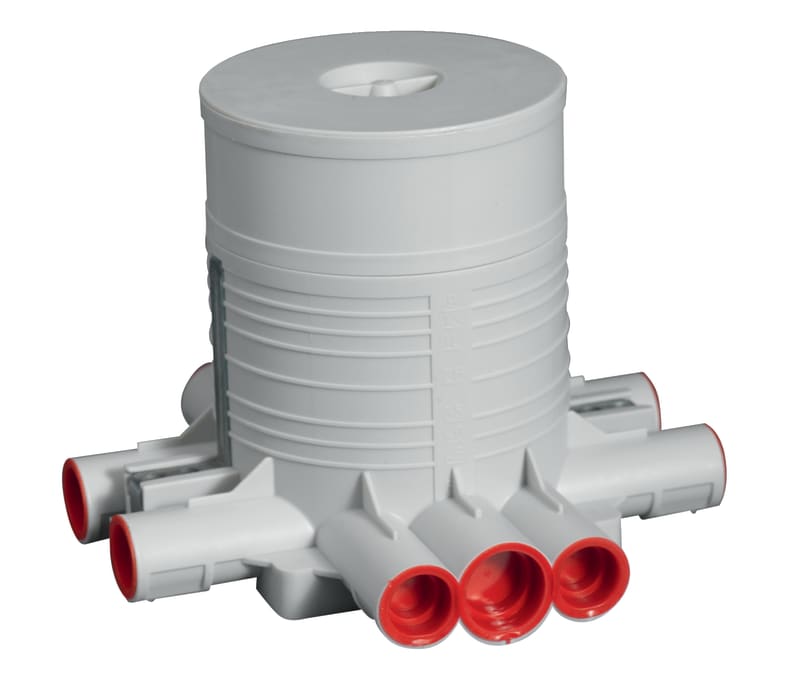

Eljo Ceiling Box TB 85
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric IMT36342 Eljo ceiling box TB 85.
Technical Specifications
- Manufacturer part number (MPN)
- IMT36342
- EAN / GTIN
- 3606480162060
- Sales unit
- pcs
- Package quantity
- 25 pcs
- With partition panel
- No
- Mounting method
- Flush-mounted
- Shape
- Round
- Construction type
- Cable junction box
- Model
- Single
- Provided with revolving ring
- No
- Couplable
- Yes
- Diameter
- 83 mm
- Length
- 145 mm
- Width
- 145 mm
- Depth
- 111 mm
- Inner depth
- 108 mm
- For number of electric fittings
- 1
- Mounting switching equipment
- Screwing
- With screws
- No
- Housing feed-through by break-out opening
- No
- Housing feed-through by seal membrane
- Yes
- Housing feed-through by nozzle
- Yes
- Housing feed-through by step membrane
- No
- For tube diameter
- 16/20 mm
- Pipe locking
- Yes
- Pipe locking optional
- No
- Inlet from the rear
- Yes
- Number of inlets
- 14
- Number of included spouts
- 10
- Material
- Plastic
- Halogen free
- Yes
- Surface protection
- Untreated
- Colour
- Grey
- Degree of protection (IP)
- IP20
- Transparent cover
- Yes
- Cover attachment
- Snapped on
- Sealable
- No
- Circuit integrity
- None
- With screening
- No
- Air tight
- No
- Max. conductor cross section
- 2.5 mm²
- Clamp position fixed
- No
- Luminaire hook mounting
- No
- Nozzle
- None
- With nail lugs
- No
- Special application
- None
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 3606480162060
- SAP 1000516582
- Code 8393919
