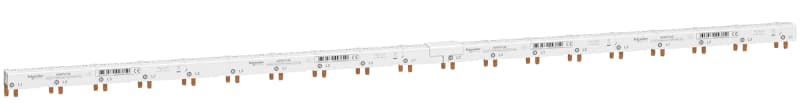

Schneider Electric comb busbar, ACTI9, 3L+N balanced with Aux and Vigi, 9 mm pitch, 48 modules, 80 A A9XPV748
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9XPV748 Acti 9 busbar 3PN 48m iC40+Vigimodul+auxiliary contact.
Technical Specifications
- Manufacturer part number (MPN)
- A9XPV748
- EAN / GTIN
- 3606489443610
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Range
- Acti9
- Product or component type
- Comb busbar
- mounting mode
- Horizontal
- Accessory / separate part category
- Connection accessory
- Lines description
- 3L + N
- Length in 18 mm modules
- 48
- Standards
- EN/IEC 61439-1
- Number of ways
- 18 ways Aux + N + L + Vigi
- Distribution type
- Aux N L1 Vigi Aux N L2 Vigi Aux N L3 Vigi
- Poles configuration for 1 way
- 1 x 1P + N
- Connection pitch
- 9 mm between phase and neutral
- Connector type
- Tooth
- Distance between way
- 45 mm
- Marking
- N L1 N L2 N L3
- Insulation
- Insulated
- Device presentation
- Cuttable
- [Ie] rated operational current
- 80 A at 40 °C
- [Ue] rated operational voltage
- 230 V AC Ph/N
- [Ui] rated insulation voltage
- 400 V AC conforming to IEC 61439-1
- [Uimp] rated impulse withstand voltage
- 4 kV
- Mounting location
- Top on tunnel type terminals
- 9 mm pitches
- 96
- Height
- 29 mm
- Width
- 862 mm
- Depth
- 26 mm
- Product weight
- 472 g
- Colour
- White (RAL 9003)
- Range compatibility
- Acti9 Acti9 C40; Acti9 Acti9 C40 Vigi; Acti9 Acti9 DT40; Acti9 Acti9 DT40 Vigi; Acti9 Acti9 iDPN; Acti9 Acti9 iDPN Vigi; Multi9 Multi9 N40 Vigi; Acti9 Acti9 iC40; Acti9 Acti9 iDT40; Acti9 Acti9 iDD40; Acti9 Acti9 iDD40 TG; Acti9 Vigi iTG40; Acti9 Acti9 iIG40; Acti9 Acti9 iCV40; Acti9 Vigi iCG40; Acti9 Acti9 iID40
- Fire resistance
- 960 °C ( 30 s ) conforming to IEC 60695-2-1
- Pollution degree
- 3 conforming to EN/IEC 60439-1
- IP degree of protection
- IP20 with end-pieces and tooth covers
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 5
- Number of Units in Package 3
- 200
- Country of origin
- PL
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606489443610
- SAP 1200170808
- Code 82204181
