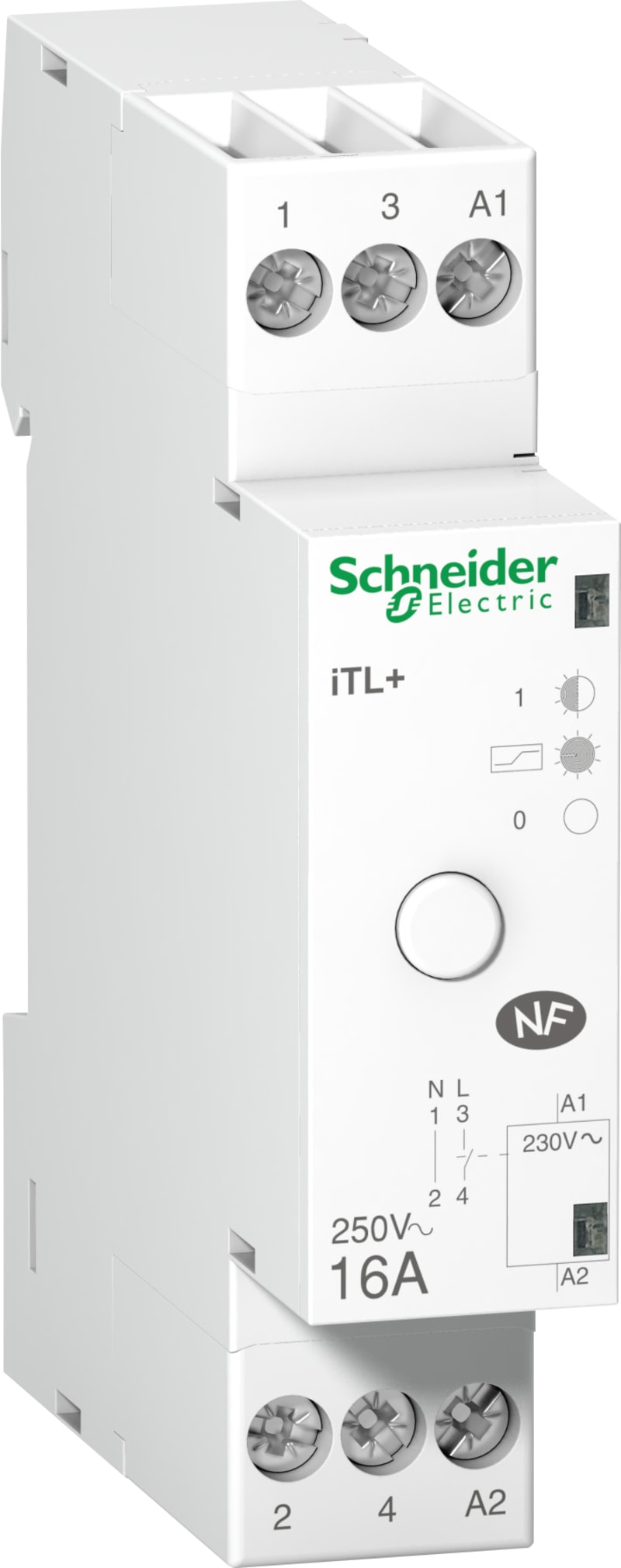

Schneider Electric impulse relay iTL+ - 1P+N - 1NO - 16A - coil 230 VAC 50Hz A9C15032

Schneider Electric A9C15032 Impulse relay iTL+ 16A 230VAC.

Manufacturer part number (MPN)

A9C15032

EAN / GTIN

3606480376979

Sales unit

pcs

Package quantity

63 pcs

Voltage

230 V AC

Rated current

16 A

range of product

Acti9

Product name

Acti9 iTL+

Product or component type

Impulse relay

Device short name

iTL+

Device application

Standard

Poles

1P + N

Neutral position

Left

Pole contact composition

1 NO

[In] rated current

16 A

Network type

AC

[Uc] control circuit voltage

230 V AC 50 Hz

Network frequency

50 Hz

[Ue] rated operational voltage

230 V AC 50 Hz

Control type

Remote and manual control

Control signal type

Impulse

Switching frequency

6 switching operation/minute

Impulse duration

50 ms...1 s

Remote control type

Illuminated push-button 5 mA

Local signalling

ON/OFF indication

Hold-in power consumption in VA

1.1 VA

Inrush power in VA

11 VA

mounting mode

Clip-on

Mounting support

DIN rail

9 mm pitches

2

Height

84 mm

Width

18 mm

Depth

60 mm

Product weight

70 g

Electrical durability

AC-21: 5000000 cycles; AC-22: 5000000 cycles

Connections - terminals

Tunnel type terminals top or bottom 2 cable(s) 1.5 mm² rigid; Tunnel type terminals top or bottom 2 cable(s) 1.5 mm² flexible with ferrule; Tunnel type terminals top or bottom 2 cable(s) 2.5 mm² rigid; Tunnel type terminals top or bottom 2 cable(s) 2.5 mm² flexible without cable end; Tunnel type terminals top or bottom 1 cable(s) 4 mm² rigid; Tunnel type terminals top or bottom 1 cable(s) 4 mm² flexible without cable end

Wire stripping length

10 mm

Tightening torque

1 N.m

Product compatibility

No auxiliary

Standards

EN 669-2-2

Quality labels

NF

Noise level

30 dB

IP degree of protection

IP20 conforming to IEC 60529 (on opening); IP40 conforming to IEC 60529 (in enclosure)

Tropicalisation

2 conforming to IEC 60068-1

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-5…55 °C

Ambient air temperature for storage

-40…60 °C

Country of origin

FR

Warranty (in months)

18

Mounting method

DIN rail

Function

Mechanical switch

Built-in depth

43.5 mm

Width in number of modular spacings

1

Control voltage 1

230 V

Type of control voltage 1

AC

Type of control voltage 2

AC

Frequency control voltage 1

50 Hz

Suitable for manual operation

Yes

Voltage type (supply voltage)

AC

Supply voltage

250 V

Max. switching current (cos phi = 0.6)

2900 A

Max. incandescent lamp load

2900 W

Max. load fluorescent lamp

2900 VA

Rated switch current

16 A

Number of contacts as normally open contact

1

HS Code

8536.49
