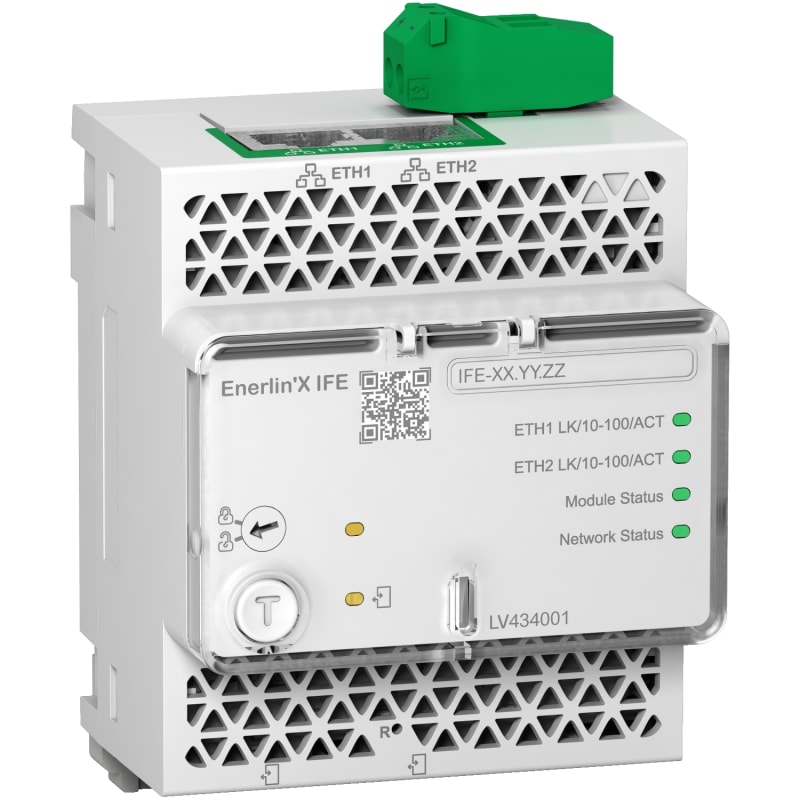

Schneider Electric Module IFE - Modbus TCP - No Gateway LV434001
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV434001 Ethernet interface, IFE, for circuit breakers NS, NSX, NT, NW, MTZ.
Technical Specifications
- Manufacturer part number (MPN)
- LV434001
- EAN / GTIN
- 3606481283139
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 24 pcs
- Range of product
- ComPact NSX100...250; ComPact NSX400...630; ComPact NS630b...1600; ComPact NS1600b...3200
- Device short name
- IFE
- Product or component type
- Interface module
- Range compatibility
- Masterpact MasterPact MTZ; Masterpact MasterPact NT; Masterpact MasterPact NW; ComPact ComPact NSX; ComPact ComPact NS630b...1600; ComPact ComPact NS1600b...3200; PowerPact PowerPact J; PowerPact PowerPact L; PowerPact PowerPact H; PowerPact PowerPact P; PowerPact PowerPact R
- Communication network type
- Ethernet, Modbus TCP/IP, HTTP, FTP, SMTP, NTP, SNMP10/100 Mbit/s on 2-port RJ45; Universal Logic Plug on 2-port RJ45
- Web server
- Embedded HTTP server
- mounting mode
- By clips
- Mounting support
- 35 mm DIN rail
- Control type
- By software
- [Us] rated supply voltage
- 24 V DC - 20...10 %
- Maximum supply current
- 3 A
- Current consumption
- 120 mA
- Connections - terminals
- RJ45 connector
- Product certifications
- GOST; cULus; FCC; CE
- Standards
- UL 60950; UL 508; IEC 60947-6-2; IEC 60950
- Height
- 105 mm
- Width
- 72 mm
- Depth
- 71 mm
- Product weight
- 182.5 g
- Accessory / separate part category
- Spare part for Compact NS630b...1600; Spare part for Compact NS1600b...3200
- IP degree of protection
- Connectors: IP2X; Other parts: IP3x; Front panel: IP4X
- Relative humidity
- 5…85 %
- Ambient air temperature for storage
- -40…85 °C
- Ambient air temperature for operation
- -20…70 °C
- Pollution degree
- 3
- Flame retardance
- V0 conforming to UL 94; V0 conforming to IEC 60947-1; V0 conforming to IEC 60695-2-11
- Shock resistance
- 1000 m/s²
- Vibration frequency
- 5…8.4 Hz
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 192
- Number of Units in Package 3
- 24
- Country of origin
- ID
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481283139
- SAP 1200319878
- Code 82300839
