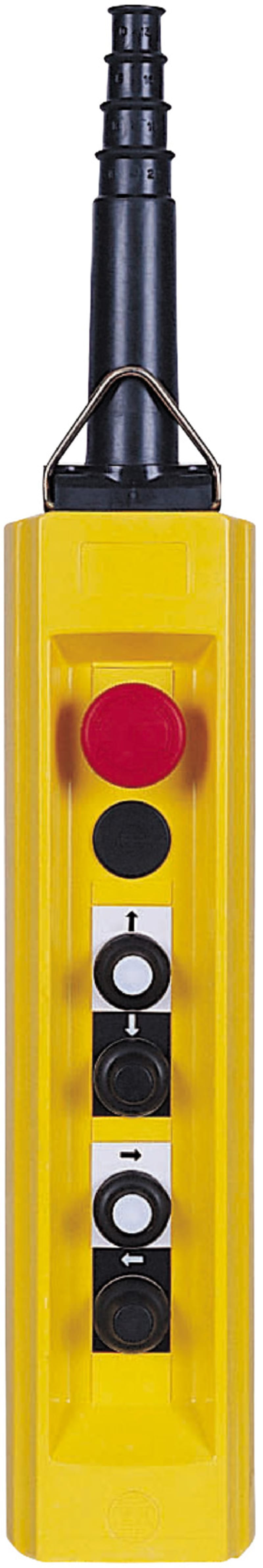

Schneider Electric XACB4933 Pendant Control Station 4 Buttons + E-Stop

Schneider Electric XACB4933 is a Harmony XAC pendant control station for controlling a single-speed hoist motor. It combines four push-buttons (raise, lower, left, right) with a latching Ø 40 mm emergency-stop button in a double-insulated glass-reinforced polyester enclosure rated IP65. Screw-clamp terminals accept up to 2.5 mm² conductors; contact block is 3 NC with mechanical interlocking between pairs.

Manufacturer part number (MPN)

XACB4933

EAN / GTIN

3389110423976

Sales unit

pcs

Contact configuration

3 NC

Range of product

Harmony XAC

Product or component type

Pendant control station

Device short name

XACB

Control station type

Double insulated

Enclosure material

Glass reinforced polyester

Electrical circuit type

Power circuit

enclosure type

Complete ready for use

Control station application

Control of single speed hoist motor

Control station composition

4 push-buttons + 1 emergency stop

Control button type

Stop push-button Ø 40 mm 3 NC latching; First push-button 3-pole raise, slow; Second push-button 3-pole lower, slow; Fourth push-button 3-pole left, slow; Third push-button 3-pole right, slow

Product compatibility

XESD2201 for reversing operation; XACS499 for emergency stop

Mechanical interlocking

With mechanical interlocking between pairs

Control station colour

Yellow

Connections - terminals

Screw clamp terminals, 1 x 2.5 mm² with or without cable end; Screw clamp terminals, 2 x 1.5 mm² with or without cable end

Standards

IEC 60204-32; CSA C22.2 No 14; IEC 60947-5-1

Product certifications

CSA type 4

Protective treatment

TH

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…70 °C

Vibration resistance

15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

Shock resistance

100 gn conforming to IEC 60068-2-27

Overvoltage category

Class II conforming to IEC 61140

IP degree of protection

IP65 conforming to IEC 60529

Mechanical durability

1000000 cycles

Cable entry

Rubber sleeve with stepped entry 10…22 mm

[Ithe] conventional enclosed thermal current

20 A

[Ui] rated insulation voltage

Emergency stop contact: 400 V (pollution degree 3) conforming to IEC 60947-1; 300 V conforming to CSA

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

Contact operation

Snap action

Operating force

32 N push-button; 40 N emergency stop

Short-circuit protection

12 A fuse protection by cartridge fuse type aM

Rated power in hp

3 hp at 240 V

Rated operational power in W

3000 W at 240 V; 3000 W at 400 V

Electrical durability

1000000 cycles AC-3, 3000 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A; 1000000 cycles AC-4, 3000 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A; 700000 cycles AC-3, 3000 W at 240 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A; 700000 cycles AC-4, 3000 W at 240 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A

Terminals description ISO n°1

(33-34)NO; (23-24)NO; (13-14)NO; (53-54)NO; (73-74)NO; (63-64)NO

Terminals description ISO n°2

(31-32)NC; (21-22)NC; (11-12)NC

Terminal identifier

(11-12)NC; (13-14)NO

Product weight

1.39 kg

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

10.200 cm

Package 1 Width

11.400 cm

Package 1 Length

70.300 cm

Package 1 Weight

1.892 kg

Unit Type of Package 2

P06

Number of Units in Package 2

15

Package 2 Height

72.500 cm

Package 2 Width

60.000 cm

Package 2 Length

80.000 cm

Package 2 Weight

37.000 kg

Country of origin

CZ

Warranty (in months)

18

Width

98 mm

Height

499 mm

Depth

83 mm

Number of command positions

4

Colour housing cover

Yellow

Suitable for emergency stop

No

Housing material

Plastic

Number of speeds

1

Type of executable motions

Transport - hoist

Degree of protection (IP)

IP65

HS Code

8537.10
