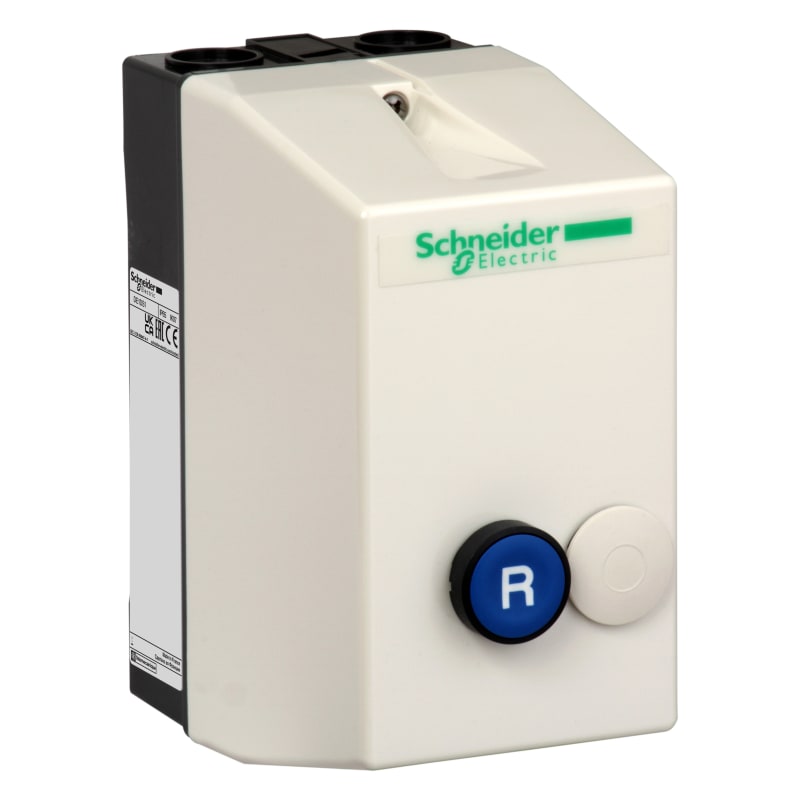

Enclosure LE1D09-D12 resetknapp
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric DE1DS1A05 Empty enclosure for standard startere, TeSys LE, with 1 push-button, for LE1D09 and LE1D12.
Technical Specifications
- Manufacturer part number (MPN)
- DE1DS1A05
- EAN / GTIN
- 3389110087086
- Sales unit
- pcs
- Package quantity
- 30 pcs
- Range of product
- TeSys
- Range
- TeSys
- Device short name
- DE1D
- Product or component type
- Enclosure
- Material
- Polycarbonate
- Device composition
- Contactor ordered separately; Thermal overload relay ordered separately
- Product compatibility
- LE1D12; LE1D09
- Control type
- Push-button reset blue R
- Cable entry number
- 2 ISO20 top; 2 ISO20 bottom; 2 Pg 13 bottom; 2 Pg 16 bottom
- Height
- 166 mm
- Width
- 88 mm
- Depth
- 145 mm
- Product weight
- 0.3 kg
- IP degree of protection
- IP65 conforming to IEC 60529
- IK degree of protection
- IK07 conforming to IEC 60529
- Ambient air temperature for operation
- -5…40 °C
- Environmental characteristic
- Standard environment
- Product certifications
- UKCA
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 17.500 cm
- Package 1 Width
- 17.500 cm
- Package 1 Length
- 22.500 cm
- Package 1 Weight
- 506.000 g
- Unit Type of Package 2
- P06
- Number of Units in Package 2
- 30
- Package 2 Height
- 75.000 cm
- Package 2 Width
- 60.000 cm
- Package 2 Length
- 80.000 cm
- Package 2 Weight
- 28.510 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Surface mounting
- With transparent cover
- No
- Suitable for emergency stop
- No
- Housing material
- Plastic
- Degree of protection (IP)
- IP65
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3389110087086
- SAP 1000471986
- Code 8122541
