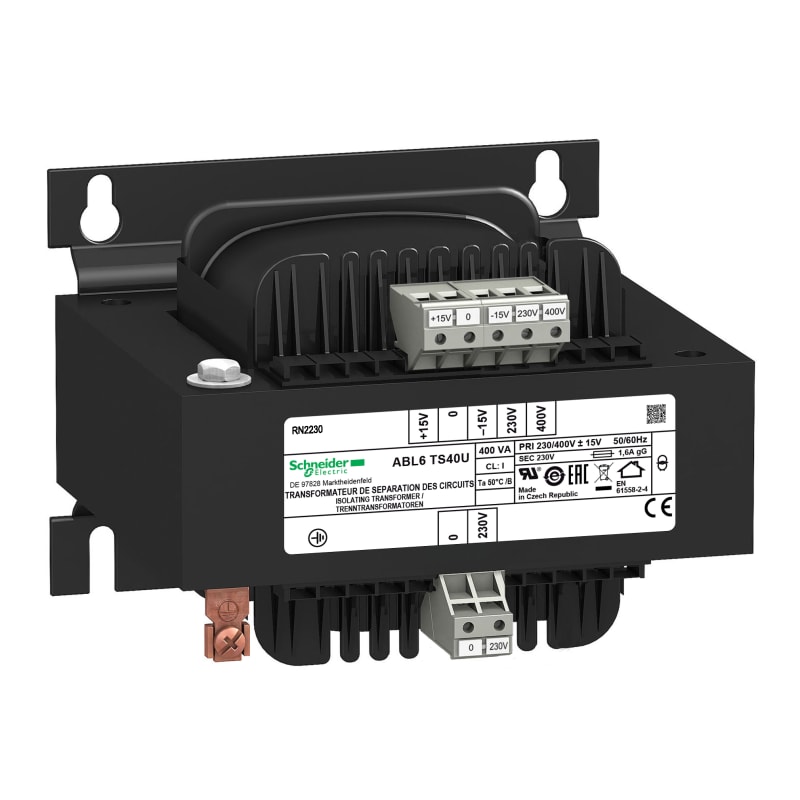

Schneider Electric voltage transformer - 230..400 V - 1 x 230 V - 400 VA ABL6TS40U

Schneider Electric ABL6TS40U Safety- and isolating transformer 400VA - supply 230-400V - output 230V.

Manufacturer part number (MPN)

ABL6TS40U

EAN / GTIN

3389110880380

Sales unit

pcs

Package quantity

15 pcs

Voltage

230-400 V

Range of product

Modicon Transformer Optimized

rated power in VA

400 VA

Product or component type

Safety and isolation transformer

Input voltage

230 V AC single phase, terminal(s): N-L1; 400 V AC phase to phase, terminal(s): L1-L2

Output voltage

230 V AC

Secondary winding

Single

Protective cover

Without

Ambient air temperature for operation

-20…50 °C

Input voltage limits

360...440 V; 207...253 V

Network frequency limits

47…63 Hz

Input voltage tolerance

+/- 15 V

Efficiency

92 %

Power dissipation in W

34.8 W

Output sustained overvoltage

4 % (no load, hot state)

Maximum voltage drop at rated load

0.7 %

No load losses

12.4 W

Short-circuit voltage

0,0477

Output protection type

Against overload, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection; Against overvoltage, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection; Against short-circuits, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection

Connections - terminals

For input connection: screw type terminals, connection capacity: 5 x 4 mm² 11 AWG; For input ground connection: screw type terminals, connection capacity: 1 x 4 mm² 11 AWG; For output connection: screw type terminals, connection capacity: 2 x 4 mm² 11 AWG

Marking

CE

Fixing mode

By 4 screws diameter: 5.8 mm on vertical panel, operating position: horizontal; By 4 screws diameter: 5.8 mm on vertical panel, operating position: vertical; By 4 screws diameter: 5.8 mm on horizontal panel with derating to 90 %

Operating altitude

3000 m

Electrical insulation class

Class B

Width

135.0 mm

Height

108.0 mm

Depth

134.0 mm

Product weight

6.43 kg

Product certifications

EAC; UR; DNV-GL

Standards

UL 506

IP degree of protection

IP20

Environmental characteristic

EMC conforming to IEC 62041; Safety conforming to EN 61558-1; Safety conforming to EN 61558-2-4

Protective treatment

TC

Ambient air temperature for storage

-40…80 °C

Overvoltage category

Class I conforming to VDE 0106-1

Dielectric strength

2000 V between winding and ground; 4000 V between primary and secondary

Number of Units in Package 1

1

Number of Units in Package 2

15

Country of origin

CZ

Warranty (in months)

18

Built as safety transformer

Yes

Built as isolating transformer

Yes

Built as energy saving transformer

No

Rated apparent power

400 VA

Type of insulation material according to IEC 85

B

Short-circuit-proof

No

Relative short circuit voltage

4.77 %

Degree of protection (IP)

IP20

Ring core

No

Suitable for mounting on PCB

No

Suitable for distribution board

No

HS Code

8504.31
