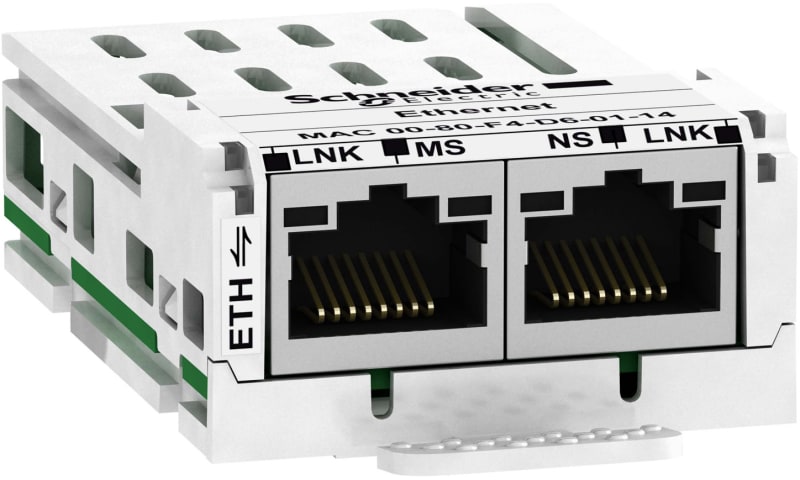

Schneider Electric Ethernet TCP/IP communication module VW3A3616
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VW3A3616 Ethernet Modbud TCP and IP communication card for ATV320 and LXM32.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A3616
- EAN / GTIN
- 3606480177590
- Sales unit
- pcs
- Package quantity
- 208 pcs
- Range of product
- Altivar
- Product or component type
- Communication module
- Accessory / separate part category
- Communication accessories
- Product compatibility
- Lexium 32M
- Range compatibility
- Altivar Machine ATV320; Altivar 32; Lexium 32
- Communication port protocol
- Modbus TCP; EtherNet/IP
- Electrical connection
- 1 connector RJ45, EtherNet/IP; 1 connector RJ45, Modbus TCP
- Transmission rate
- 10/100 Mbps
- Addressing
- IP addressing manual, BOOTP or DHCP
- Exchange mode
- Half duplex and full duplex
- Communication service
- Up to 8 connections (includes connections of Modbus TCP/Ethernet IP) for Ethernet IP/Modbus TCP; FDR Agent for Ethernet IP/Modbus TCP; Read holding registers (03), 63 words max for Modbus TCP; Read input registers (04), 63 words max for Modbus TCP; Write single register (06) for Modbus TCP; Write multiple registers (16), 63 words max for Modbus TCP; Read/write multiple registers (23) for Modbus TCP; Read device identification (43) for Modbus TCP; Diagnostics (08) for Modbus TCP; I/O scanner : read/write, 6 words maximum for Modbus TCP; Communication monitoring for Modbus TCP; SNMP agent for Ethernet IP; Master/Slave hierarchy ODVA AC drive profile and CiA 402 profile for Ethernet IP; Fixed communication monitoring adjusted by Ethernet IP scanner adaptor (Master) for Ethernet IP
- Display type
- 1 LED for MS (Module Status); 1 LED for NS (Network Status); 1 LED for Ethernet port activity; 1 LED for Modbus TCP port activity
- Product weight
- 0.3 kg
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.200 cm
- Package 1 Width
- 6.100 cm
- Package 1 Length
- 9.000 cm
- Package 1 Weight
- 62.000 g
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 100
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 6.590 kg
- Country of origin
- CN
- Warranty (in months)
- 18
- Type of accessory/spare part
- Communication module
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8517.62
Cross References
- EAN 3606480177590
- SAP 1000473381
- Code 8583187
Product Documentation
More from Schneider Electric
Schneider Electric
Enclosure LE1D09-D12 resetknapp
DE1DS1A05
Schneider Electric
Schneider Electric Module IFE - Modbus TCP - No Gateway LV434001
Schneider Electric
Schneider Electric TeSys GV2 - Emergency stop pushbutton - spring return GV2K011
Schneider Electric
Schneider Electric spring fixing bracket, Canalis KBB, 25 A and 40 A, suspended by 3M of cable with lock, galvanized version KBB40ZFSU
Schneider Electric

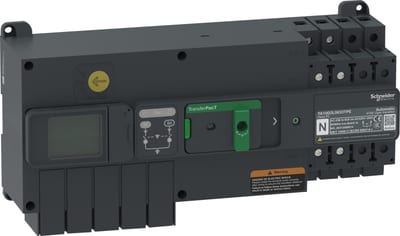

Schneider Electric transfer switch, TransferPacT Active automatic, 32A, 230V, 2P, LCD,frame 100A TA10D2L0323TPE
Schneider Electric

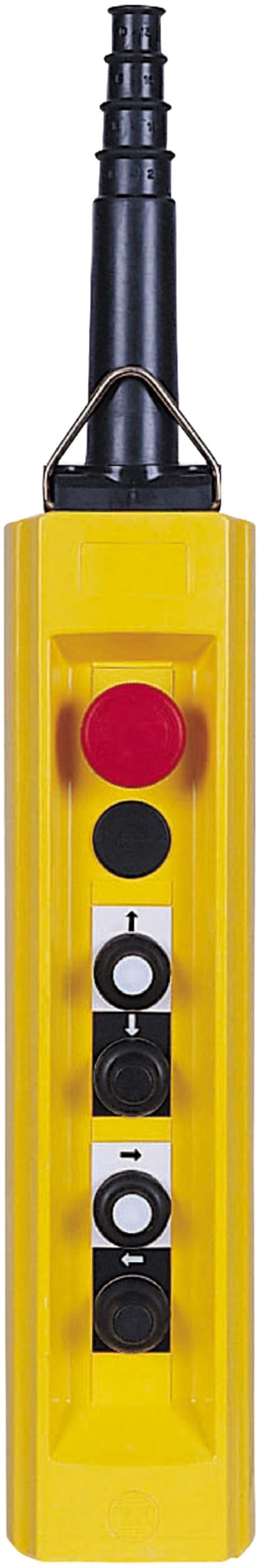

Schneider Electric XACB4933 Pendant Control Station 4 Buttons + E-Stop
Schneider Electric

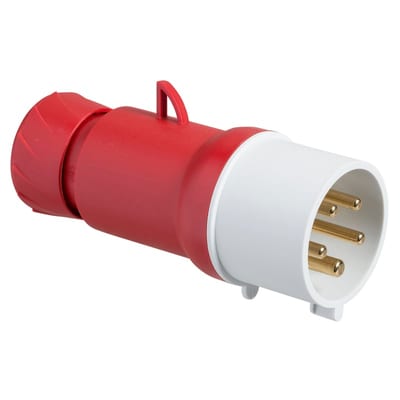

Schneider Electric PratiKa wander plug - straight - 32 A - 3P + N + E - 380...415 V AC - IP44 PKE32M435
Schneider Electric

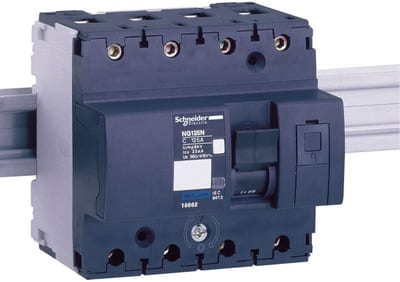

Schneider Electric NG125 - circuit breaker - NG125N - 4P - 32A - C curve
