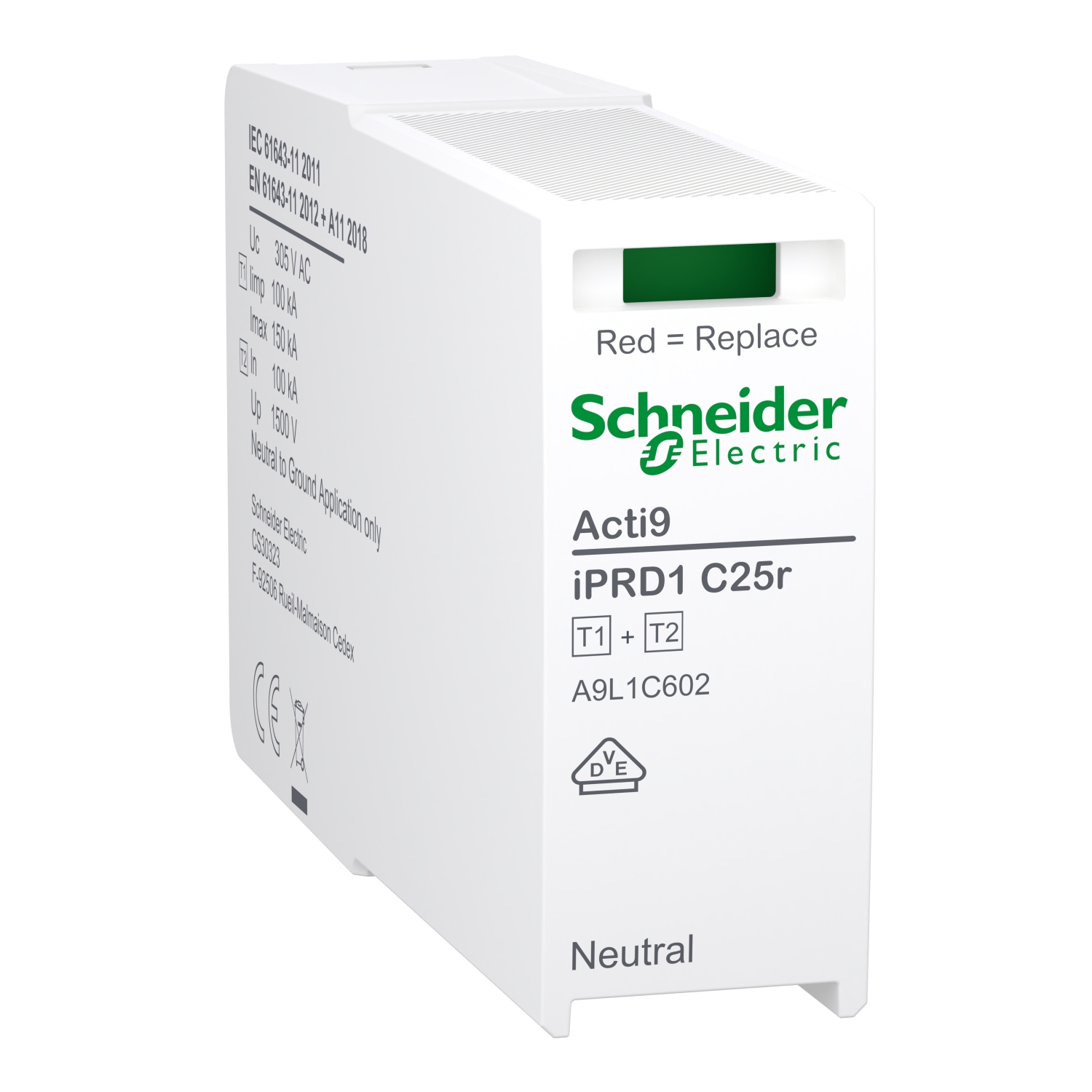

Schneider Electric A9L1C602 ACTI9 IPRD1 C25R/F25R Replacement Cartridge, Type 1+2, Neutral-Earth (N-PE)

Schneider Electric A9L1C602 is a replacement plug-in protection cartridge for the Acti9 iPRD1 C25r/F25r combined Type 1 + Type 2 surge protective device (3P and 3P+N). It restores neutral-to-earth (N-PE) overvoltage protection after cartridge end-of-life, which the host device signals through its mechanical status window and remote signalling contact. The 18 mm cartridge is replaced from the front without disturbing the installed conductors. Conforms to IEC 61643-11 / EN 61643-11:2012+A11:2018.

Manufacturer part number (MPN)

A9L1C602

EAN / GTIN

3606486819593

Product type

Acti9 iPRD1 C25r/F25r replacement protection cartridge

Protection mode

Neutral-Earth (N-PE)

SPD class

Type 1 + Type 2 (combined)

Compatible host device

iPRD1 C25r/F25r, 3P and 3P+N

Cartridge width

18 mm (1 module)

Mounting

front-plug into iPRD1 base

Conforms to

IEC 61643-11:2011, EN 61643-11:2012+A11:2018

HS code

8536.90

Sales unit

pcs

Package quantity

16 pcs

range of product

Acti9

Product or component type

Cartridge

Device short name

iPRD1 C25r

Range compatibility

Acti9 iPRD1 C25r; Acti9 iPRD1 F25r

Surge arrester type

Electrical distribution network

Standards

IEC 61643-11:2011; EN 61643-11:2012; EN 61643-11:2018/A11

Product certifications

CE

Quality labels

VDE

Surge arrester class type

Type 1 + 2

Surge arrester technology

GDT

Product destination

Surge protection device iPRD1 C25r 3P + N; Surge protection device iPRD1 F25r 3P + N

Earthing system

TT; TN-S

[Ue] rated operational voltage

240 V AC 50/60 Hz

Nominal discharge current

Common mode: 100 kA (N/PE)

Maximum discharge current

Common mode: 150 kA N/PE

[Iimp] impulse current

Common mode: 100 kA N/PE 50 A.s

[Uc] maximum continuous operating voltage

Common mode: 305 V N/PE

Maximum [Up] voltage protection level

Common mode 1.5 kV N/PE

[Ut] temporary overvoltage

1200 V N/PE 200 ms withstand

[Ifi] follow current

100 kA

Local signalling

Operating state: flag (green); Fault indication: flag (red)

mounting mode

Plug-in

Mounting support

Into SPD module

9 mm pitches

2

Height

45 mm

Width

18 mm

Depth

73.5 mm

Product weight

115 g

Colour

White (RAL 9003)

Material

Thermoplastic

Response time

< 100 ns

IP degree of protection

IP20

Relative humidity

5…95 %

Operating altitude

0...2000 m

Ambient air temperature for storage

-40…85 °C

Country of origin

SI

Warranty (in months)

18

Standard

IEC 61643-11

IP Rating

IP20

HS Code

8536.90

• EAN 3606486819593
• SAP 1201002345
• Code 84341255
