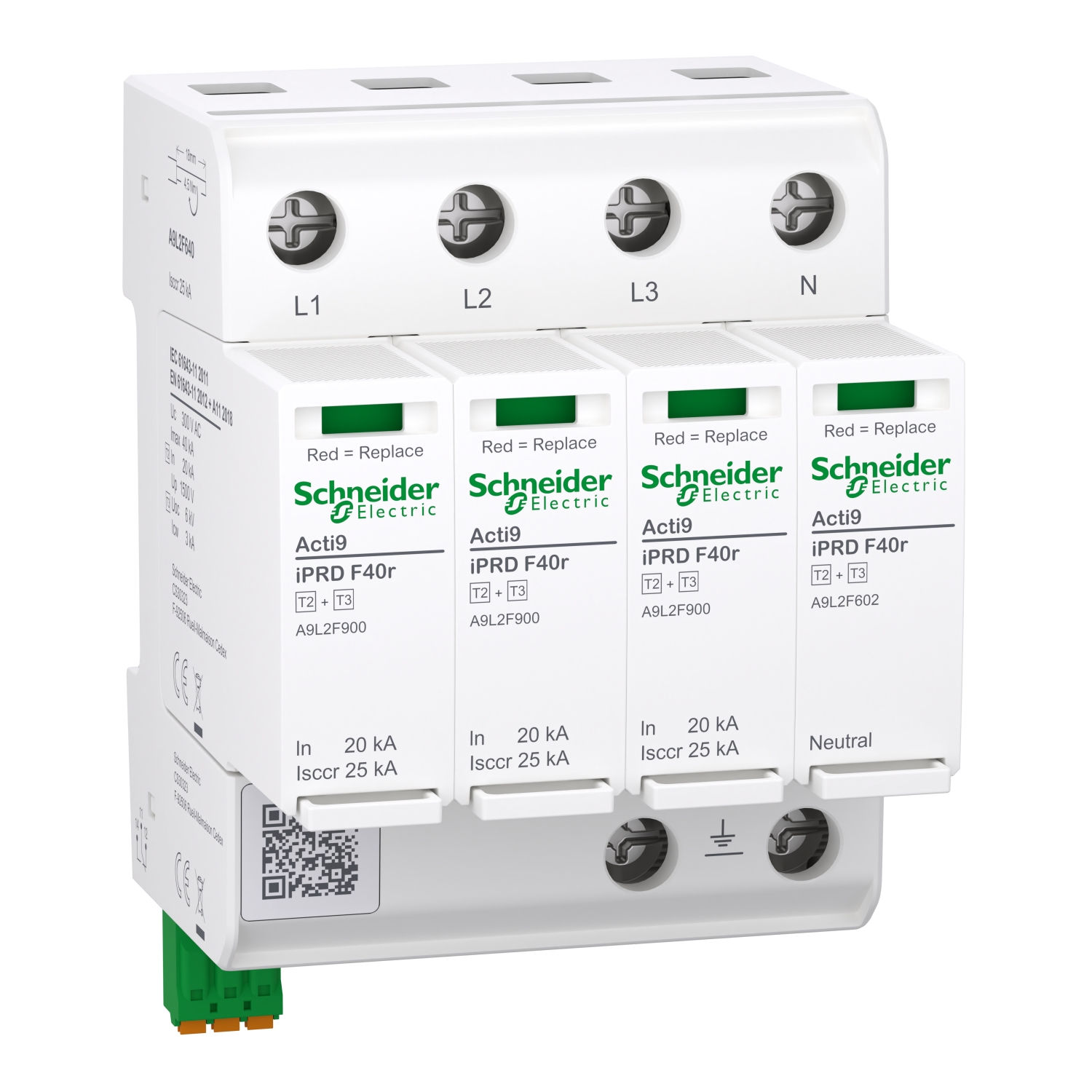

Schneider Electric Surge arrester with pluggable cartridge, ACTI9 iPRD F40R, 3P+N, 40KA, type 2+3, with fuse, with remote monitoring A9L2F640

Schneider Electric A9L2F640 Modular, pluggable surge protection device, Acti9 iPRD F40r, 3P+N, 40kA, T2+3, with fuse and signalkont.

Manufacturer part number (MPN)

A9L2F640

EAN / GTIN

3606486808504

HS code

8536.90

Sales unit

pcs

Package quantity

12 pcs

Number of poles

3P+N

range of product

Acti9

Product name

Acti9 iPRD

Product or component type

Surge arrester with pluggable cartridge

Device short name

iPRD F40r

Device application

Distribution

Standards

IEC 61643-11:2011; EN 61643-11:2012; EN 61643-11:2018/A11

Product certifications

CE

Poles description

3P + N

Remote signalling

With

Surge arrester type

Electrical distribution network

Earthing system

TT; TN-S

Surge arrester class type

Type 2 + 3

Surge arrester technology

MOV + GDT

[Ue] rated operational voltage

230/400 V AC at 50/60 Hz

Nominal discharge current

Differential mode: 20 kA (L/N); Common mode: 40 kA (N/PE)

Maximum discharge current

Differential mode: 40 kA L/N; Common mode: 65 kA N/PE

[Uoc] open circuit voltage

6000 V differential mode L/N; 6000 V common mode N/PE

[Uc] maximum continuous operating voltage

Differential mode: 300 V L/N; Common mode: 305 V N/PE

Maximum [Up] voltage protection level

Differential mode <1.5 kV L/N; Common mode <1.5 kV N/PE

[Out] temporary overvoltage

337 V L/N 5 s withstand; 1200 V N/PE 200 ms withstand; 442 V L/N 120 min safe failure mode

[Ifi] follow current

100 A common mode N/PE

Short-circuit withstand

25 kA

Disconnector device type

Integrated fuse

Local signalling

Operating state: flag (green); Fault indication: flag (red)

Signalling circuit voltage

1 A/250 V AC; 1 A/125 V AC; 0.5 A/48 V DC; 0.5 A/24 V DC; 0.5 A/12 V DC

Mounting mode

Clip-on (DIN rail)

9 mm pitches

8

Height

105 mm

Width

72 mm

Depth

70 mm

Product weight

478 g

Quantity per set

Set of 1

Colour

White (RAL 9003)

Material

Thermoplastic

Response time

< 25 ns L/N; < 100 ns N/PE

Cable cross section

0.25…1.5 mm² solid cable for remote control; 2.5…35 mm² solid stranded cable for power terminals; 2.5…25 mm² flexible cable for power terminals; 6…35 mm² solid stranded cable for earthing terminal; 6…25 mm² flexible cable for earthing terminal

Wire stripping length

Remote control: 10 mm; Power terminals: 18 mm; Earthing terminal: 18 mm

Tightening torque

Power circuit: 4.5 N.m

Targeted country

Germany

IP degree of protection

IP20 with cartridges fitted and device wired

IK degree of protection

IK05

Relative humidity

5…95 %

Operating altitude

0...4000 m

Ambient air temperature for operation

-40…85 °C

Warranty (in months)

18

HS Code

8536.90

• EAN 3606486808504
• SAP 1201002356
