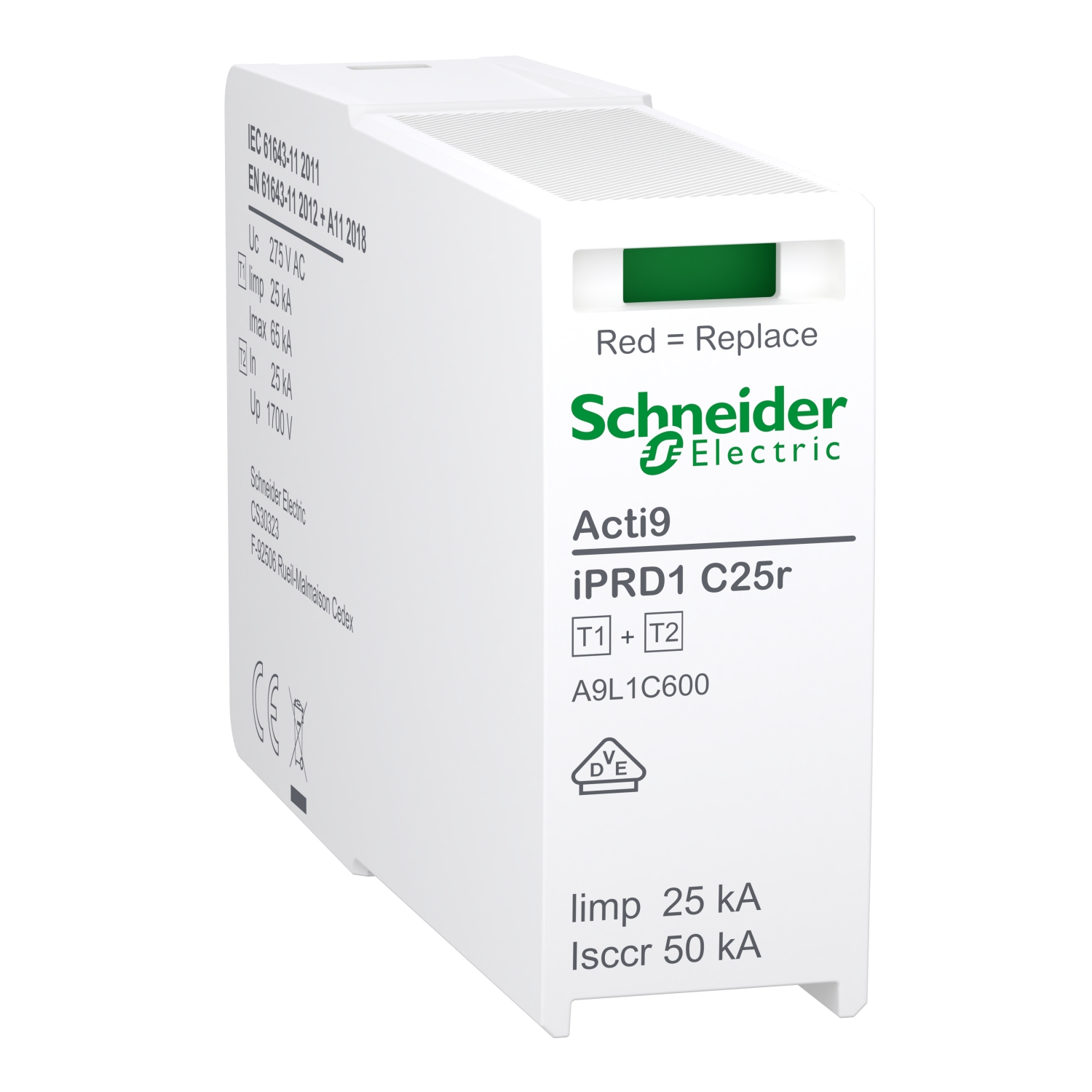

Schneider Electric A9L1C600 ACTI9 IPRD1 C25R Replacement Cartridge, Type 1+2, Phase (L-N)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9L1C600 is a replacement plug-in protection cartridge for the Acti9 iPRD1 C25r combined Type 1 + Type 2 surge protective device (3P+N). It restores line-to-neutral (L-N) overvoltage protection after cartridge end-of-life, which the host device signals through its mechanical status window and remote signalling contact. The 18 mm cartridge is replaced from the front without disturbing the installed conductors. Maximum continuous operating voltage Uc 275 V AC. Conforms to IEC 61643-11 / EN 61643-11:2012+A11:2018.
Technical Specifications
- Manufacturer part number (MPN)
- A9L1C600
- EAN / GTIN
- 3606486808597
- Product type
- Acti9 iPRD1 C25r replacement protection cartridge
- Protection mode
- Phase (L-N)
- SPD class
- Type 1 + Type 2 (combined)
- Compatible host device
- iPRD1 C25r, 3P+N
- Max. continuous operating voltage Uc
- 275 V AC
- Cartridge width
- 18 mm (1 module)
- Mounting
- front-plug into iPRD1 base
- Conforms to
- IEC 61643-11:2011, EN 61643-11:2012+A11:2018
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 28 pcs
- range of product
- Acti9
- Product or component type
- Cartridge
- Device short name
- iPRD1 C25r
- Range compatibility
- Acti9 iPRD1 C25r
- Surge arrester type
- Electrical distribution network
- Standards
- IEC 61643-11:2011; EN 61643-11:2012; EN 61643-11:2018/A11
- Product certifications
- CE
- Quality labels
- VDE
- Surge arrester class type
- Type 1 + 2
- Surge arrester technology
- GDT
- Product destination
- Surge protection device iPRD1 C25r 3P + N
- Earthing system
- TT; TN-S; TN-C
- [Ue] rated operational voltage
- 240 V AC 50/60 Hz
- Nominal discharge current
- Differential mode: 25 kA (L/N)
- Maximum discharge current
- Differential mode: 65 kA L/N
- [Iimp] impulse current
- Differential mode: 25 kA L/N 12.5 A.s
- [Uc] maximum continuous operating voltage
- Differential mode: 275 V L/N
- Maximum [Up] voltage protection level
- Differential mode 1.5 kV L/N
- [Ut] temporary overvoltage
- 442 V L/N 120 min withstand
- [Ifi] follow current
- 50 kA
- Short-circuit withstand
- 50 kA
- Local signalling
- Operating state: flag (green); Fault indication: flag (red)
- mounting mode
- Plug-in
- Mounting support
- Into SPD module
- 9 mm pitches
- 2
- Height
- 45 mm
- Width
- 18 mm
- Depth
- 73.5 mm
- Product weight
- 105 g
- Colour
- White (RAL 9003)
- Material
- Thermoplastic
- Response time
- < 100 ns
- IP degree of protection
- IP20
- Relative humidity
- 5…95 %
- Operating altitude
- 0...2000 m
- Ambient air temperature for storage
- -40…85 °C
- Country of origin
- SI
- Warranty (in months)
- 18
Standards & Compliance
- Standard
- IEC 61643-11
- IP Rating
- IP20
- HS Code
- 8536.90
Cross References
- EAN 3606486808597
- SAP 1201002344
- Code 84341258
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric A9L1F625 ACTI9 IPRD1 F25R Surge Arrester, Type 1+2, 3P+N, 275 V, 25 kA, Integrated Fuse, Remote Signalling
Schneider Electric
Schneider Electric A9L1F900 ACTI9 IPRD1 F25R Replacement Cartridge, Type 1+2, Phase (L-N), with Fuse
Schneider Electric
Schneider Electric A9L1H602 ACTI9 IPRD1 25R Replacement Cartridge, Type 1+2, Neutral-Earth (N-PE)
Schneider Electric
Schneider Electric A9L1C625 ACTI9 IPRD1 C25R Surge Arrester, Type 1+2, 3P+N, 275 V, 25 kA, Remote Signalling
Schneider Electric

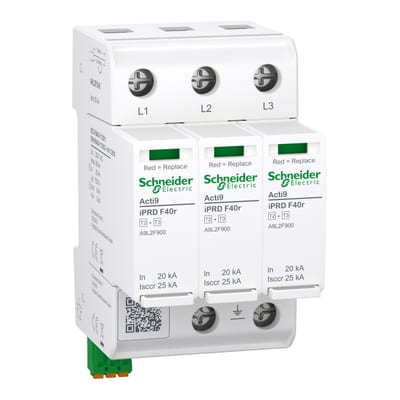

Schneider Electric Surge arrester with pluggable cartridge, ACTI9 iPRD F40R, 3P, 40KA, type 2+3, with fuse, with remote monitoring A9L2F340
Schneider Electric

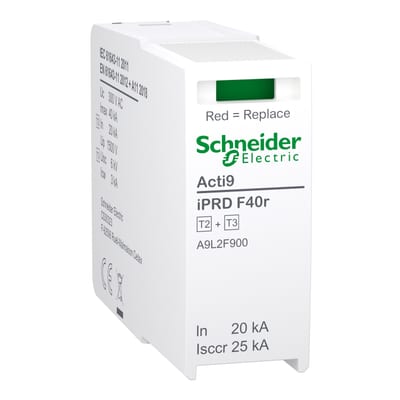

Res.plug IPRD1 F40R T2+T3 with fuse Phase-N
A9L2F900
Schneider Electric

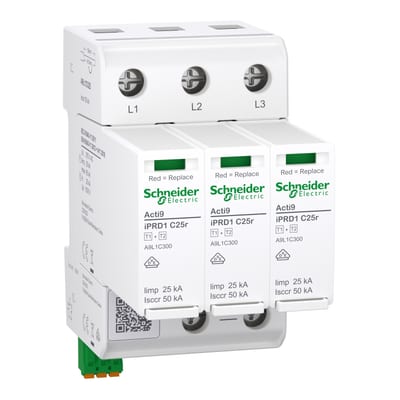

Schneider Electric A9L1C325 ACTI9 IPRD1 C25R Surge Arrester, Type 1+2, 3P, 275 V, 25 kA, Remote Signalling
Schneider Electric

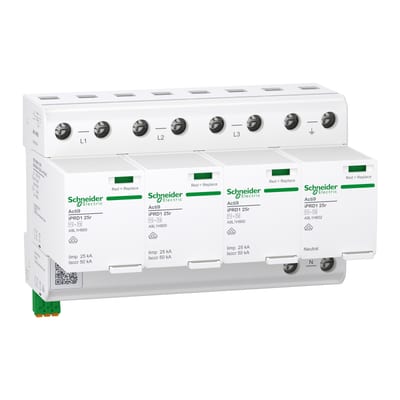

Schneider Electric A9L1H625 ACTI9 IPRD1 25R Surge Arrester, Type 1+2, 3P+N, 300 V, 25 kA, Remote Signalling
