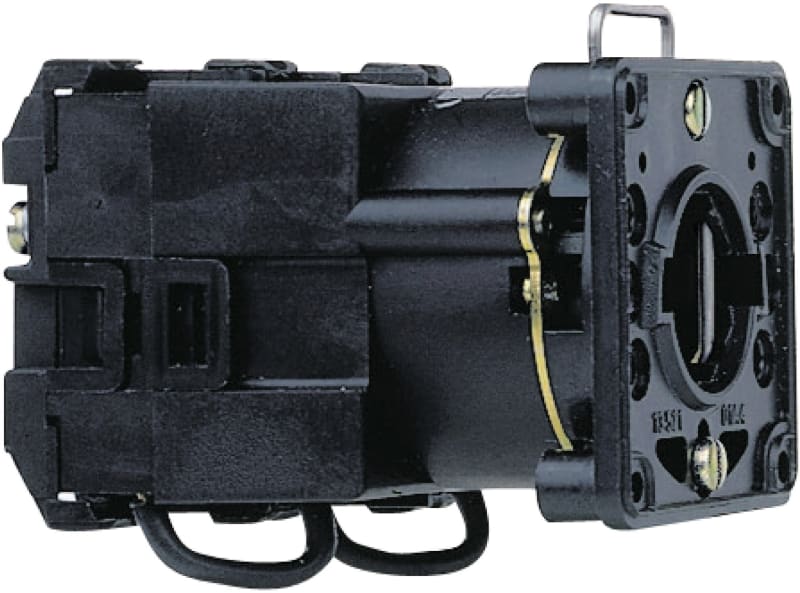

CAM Switch,VOLTM.Selector Switch

Schneider Electric K1F027M Cam Switch,voltm.selector switch.

Manufacturer part number (MPN)

K1F027M

EAN / GTIN

3389110445596

Sales unit

pcs

Package quantity

16 pcs

Range of product

Harmony K

Product or component type

Cam switch body

Component name

K1

[Ith] conventional free air thermal current

12 A

Sub-assembly composition

Contact blocks + fixing plate

Cam switch function

Voltmeter switch

Type of measurement

Between 3 phases and between each of the 3 phases and neutral

Off position

With Off position

Switching positions

Left: 0° - 315° - 270° - 225°; Right: 0° - 45° - 90° - 135°

Product mounting

Front mounting

fixing mode

Ø 22 mm hole

Bezel material

Plastic

Switching angle

45 °

[Ui] rated insulation voltage

690 V (pollution degree 3) conforming to IEC 60947-1

[Ithe] conventional enclosed thermal current

10 A

Rated operational power in W

10500 W AC-21, 500 - 660 V 3 phases conforming to IEC 947-3; 1100 W AC-3, 230 V 3 phases conforming to IEC 947-3; 1500 W AC-23A, 230 V 3 phases conforming to IEC 947-3; 1500 W AC-3, 400 V 1 phase conforming to IEC 947-3; 1500 W AC-3, 400 V 3 phases conforming to IEC 947-3; 1500 W AC-3, 500 V 3 phases conforming to IEC 947-3; 1500 W AC-3, 690 V 3 phases conforming to IEC 947-3; 2200 W AC-23A, 400 V 3 phases conforming to IEC 947-3; 2200 W AC-23A, 500 V 3 phases conforming to IEC 947-3; 2200 W AC-23A, 690 V 3 phases conforming to IEC 947-3; 4800 W AC-21, 230 V 3 phases conforming to IEC 947-3; 600 W AC-3, 230 V 1 phase conforming to IEC 947-3; 8300 W AC-21, 400 V 3 phases conforming to IEC 947-3

[Ie] rated operational current AC

1 A at 500 V AC-15 conforming to IEC 947-5-1; 2 A at 400 V AC-15 conforming to IEC 947-5-1; 3 A at 230 V AC-15 conforming to IEC 947-5-1; 1.8 A at 690 V AC-3 3 phases conforming to IEC 947-3; 2.8 A at 500 V AC-3 3 phases conforming to IEC 947-3; 2.8 A at 690 V AC-23A 3 phases conforming to IEC 947-3; 3.3 A at 400 V AC-3 3 phases conforming to IEC 947-3; 3.8 A at 500 V AC-23A 3 phases conforming to IEC 947-3; 4.6 A at 230 V AC-3 3 phases conforming to IEC 947-3; 4.8 A at 400 V AC-23A 3 phases conforming to IEC 947-3; 5.6 A at 230 V AC-23A 3 phases conforming to IEC 947-3

Electrical durability

1000000 cycles AC-15; 1000000 cycles AC-21; 500000 cycles AC-23; 500000 cycles AC-3

Maximum operating rate

2.5 cyc/mn AC-21; 2.5 cyc/mn AC-23; 2.5 cyc/mn AC-3; 8.333 cyc/mn AC-15

Short-circuit current

10000 A

Short-circuit protection

16 A cartridge fuse, type gG

[Uimp] rated impulse withstand voltage

4 kV in isolating function; 6 kV conforming to IEC 947-1

Contact operation

Slow-break

positive opening

With

Electrical connection

Captive screw clamp terminals flexible, clamping capacity: 2 x 1.5 mm²; Captive screw clamp terminals solid, clamping capacity: 1 x 2.5 mm²

Mechanical durability

1000000 cycles

Product weight

0.126 kg

Standards

CENELEC EN 50013; EN 60947-3 for power circuit; EN 60947-5-1 for control circuit; IEC 60947-3 for power circuit; IEC 60947-5-1 for control circuit

Product certifications

CSA 240 V 1 hp 1 phase; CSA 240 V 3 hp 3 phases 2 pole(s); UL 240 V 1 hp 3 phases; UL 240 V 0.33 hp 1 phase 2 pole(s)

Protective treatment

TC

Ambient air temperature for operation

-25…55 °C

Ambient air temperature for storage

-40…70 °C

Shock resistance

30 gn conforming to IEC 68-2-27

Vibration resistance

5 gn conforming to IEC 68-2-6 (f = 10…150 Hz)

Electrical shock protection class

Class II conforming to IEC 536; Class II conforming to NF C 20-030

Number of Units in Package 1

1

Number of Units in Package 2

16

Warranty (in months)

18

Measurement between phases possible

Yes

Measurement between phase and neutral conductor possible

Yes

With zero (off) position

Yes

Device construction

Front installation

Suitable for distribution board

No

With control element

No

Degree of protection (IP)

IP20

Country of origin

Czechia

HS Code

9107.00
