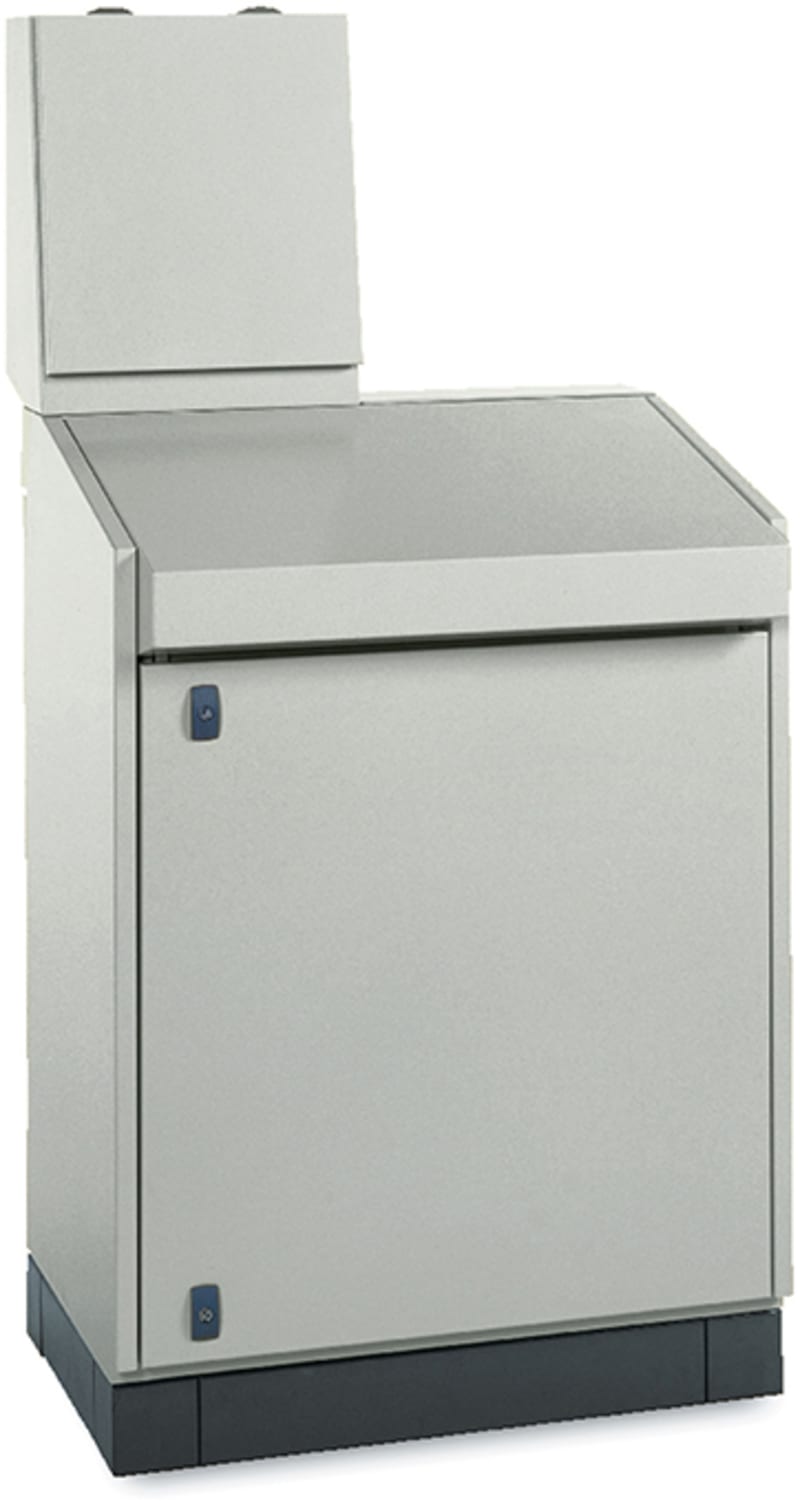

Schneider Electric PanelSeT SD Compact control desk with rear panel - H1000XW800XD597 - IP55 NSYSD8R
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSD8R Control desk 10X8X5.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSD8R
- EAN / GTIN
- 3606480154461
- Sales unit
- pcs
- Range
- PanelSeT
- Product name
- PanelSeT SD
- Enclosure type
- Multi-purpose
- Category
- Monobloc control desk with rear panel
- Nominal height
- 1000 mm
- Nominal width
- 800 mm
- Nominal depth
- 597 mm
- Product installation
- Floor-standing
- Device composition
- 1 structure; 1 door; 2 lock: door; 4 adjustment rail; 1 cable gland plate; 2 pneumatic stay: desk lid; 1 rear panel; 3 top plate: on top of control desk
- Body type
- Single piece structure folded and welded
- Door type
- Plain
- Number of doors
- Front: 1 door(s)
- Door opening side
- Reversible 120 ° door
- Lock type
- 2 points lock, 3 mm double-bar
- Mounting plate description
- Without mounting plate
- Type of gland plate
- 1 entry plate
- Accessibility for operation
- Front; Rear
- Removable parts
- Door by hinges; Desk lid by hinges; Cable gland plate by clipping screws; Blanking covers by screws; Rear panel by screws
- Material
- Body: steel
- Surface finish
- Epoxy-polyester powder
- thickness
- 1.5 mm
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK10 conforming to IEC 62262
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 62.000 cm
- Package 1 Width
- 82.000 cm
- Package 1 Length
- 118.000 cm
- Package 1 Weight
- 65.000 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 2
- Package 2 Height
- 130.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 151.000 kg
- Country of origin
- CZ
- Warranty (in months)
- 18
- Width
- 800 mm
- Height
- 1000 mm
- Depth
- 597 mm
- RAL-number
- 7035
- Degree of protection (IP)
- IP55
- Surface finishing
- Powder coating
- Component of the desk system
- Base unit
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480154461
- SAP 1000089746
- Code 8840415
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX400HB2, 100KA/690VAC, 4 poles, MicroLogic 5.3E trip unit 400A C40W45E400
Schneider Electric
Lengdestykker for transport MAX1900MM P
LVS08705
Schneider Electric
COIL XF 200/250VDC AC FOR Drawout MTZ1
LV847443
Schneider Electric
RAIL 63A 3M 6 Outlet + BUS
KNT63ED4306
Schneider Electric
Schneider Electric XACB220 Harmony XAC Pendant Control Station, 2 Push Buttons, 20 A
Schneider Electric
Schneider Electric ClimaSys PTC heating resistance 100W,270-420V insulate NSYCR100WU3C
Schneider Electric

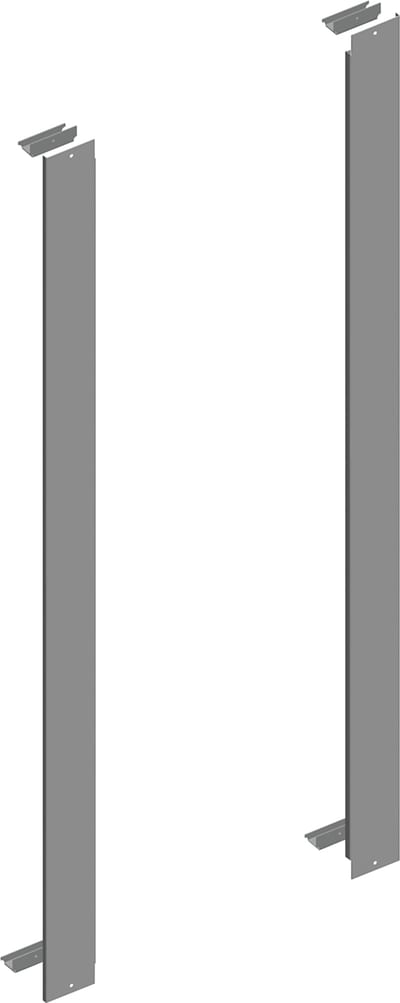

Schneider Electric set of 2 PanelSeT SF side plates of the centred fixed rack - 1200X800 mm NSYRC12
Schneider Electric

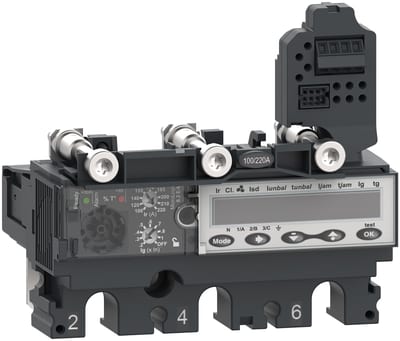

Schneider Electric Trip unit MicroLogic 6.2EM, ComPacT NSX100-250, 3 poles, basic and ground fault protections, motor, energy meter, 80A C1036M080
